Murphy PV450总线显示器 坚固可靠功能强劲的全彩色显示器 PDF中文资料下载
Murphy PV450显示器是PV750的时尚迷你版



Murphy PV450显示器是PV750的时尚迷你版。PV450是一款为适用更小的安装空间而重新设计的显示器。紧凑精简的设计使其外形体积较PV750小了许多,但仍然具备与PV750相同的强大功能和编程环境。PowerView 450是一款小巧,可编程的显示器,专为现代电控发动机设计。它将电控引擎,传输和设备信息集成到易于阅读的全彩色界面中。PV450具有4.3英寸屏幕,适用于空间更紧凑的应用,并且具有与摩菲大型可配置显示器相同的强大性能。此外,PV450显示器满足工厂对欧四阶段排放监测的要求。PV450定制使用Murphy的PowerVision ConfigurationStudio 软件,这是一款功能强大的工具,可让您自定义设备屏幕的外观和风格,自定义参数,编辑故障排除信息,添加公司LOGO等。



MurphyLink J1939 Display, Gauge & Interface Systems

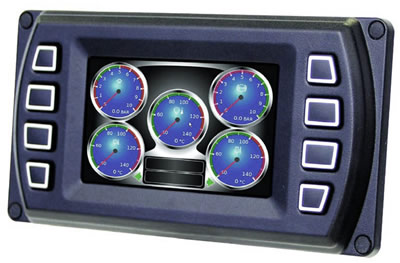

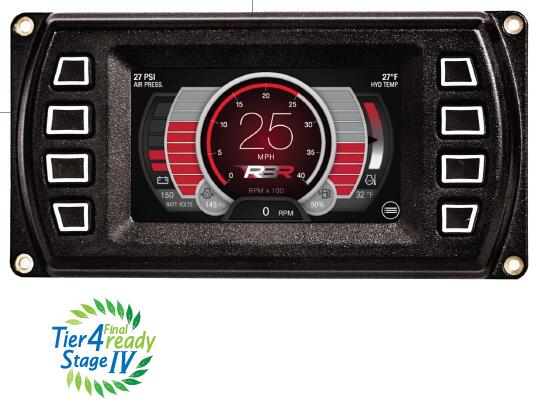

PowerView PV450 SAE J1939, CANopen and freeform-CAN compatible display



坚固可靠功能强劲的全彩色显示器

- 小巧体型适合多种应用
-品质液晶显示屏保证最佳可视性
- 流线型模块化设计
- 易于使用的配置软件
- 数据记录
- 可按客户要求定制的面框,按钮,I / O模块等



The PowerView 450 features a rich features set and full customization in a compact size.The PV450 features a 4.3-inch screen perfect for applications with tighter spaces, and it delivers the same powerful performance as Murphy's larger configurable displays. It integrates electronic engine, transmission and equipment information into an easy-to-read, full-color interface with eight tactile push buttons. The PV450's sunlight viewable, full-color screen makes seeing life-like gauges, alarm warnings, service codes, and video easy to view in virtually any condition. The HelmView 450 (see "How to Order" below) is also available to meet the engine monitoring needs of the Commercial Marine industry. The PV450 and HV450 are programmable with PowerVision Configuration Studio.

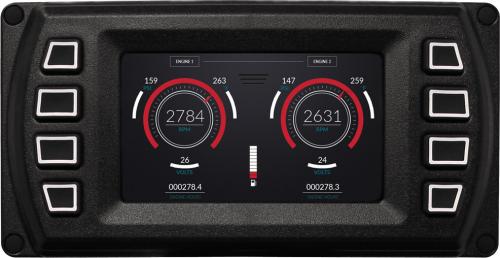

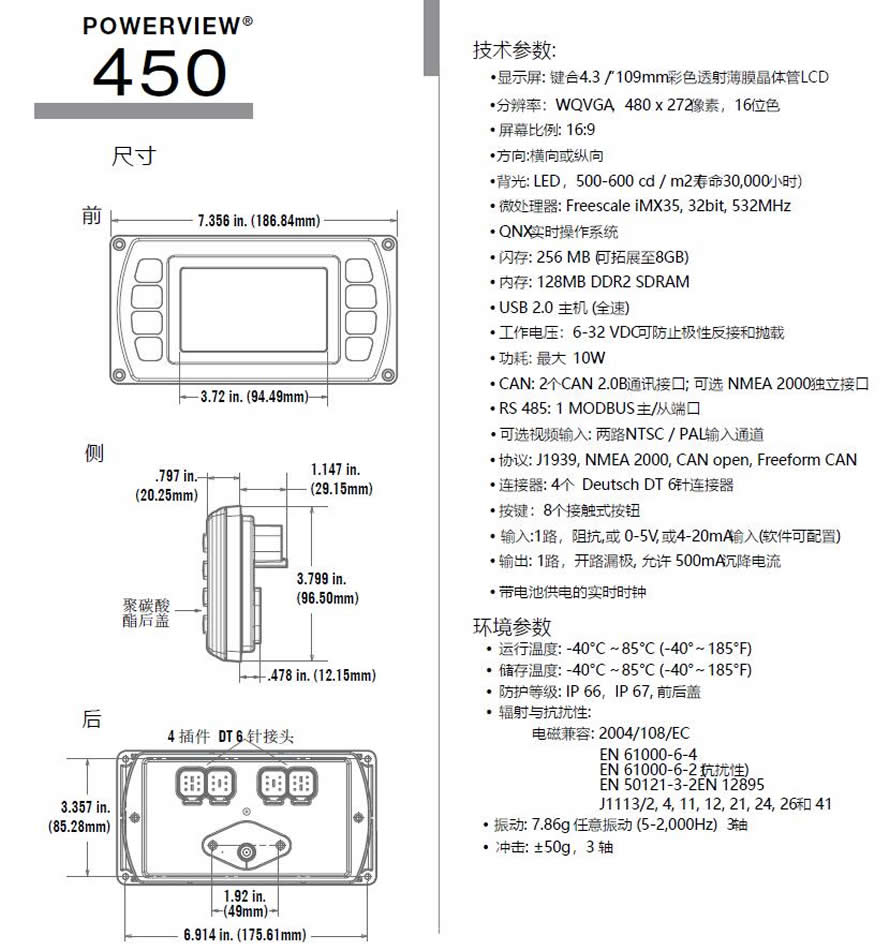

PV450总线显示器技术规格

· 显示器:4.3寸彩色透射式TFT液晶显示器

· 分辨率:WQVGA ,480 x 272像素,18位色彩

· 屏幕比例:16:9

· 版式:横向或纵向

· 背光:LED, 500~ 600 cd/mC (可使用30,000 小时)

· 微处理芯片:Freescale iMX.35,32bit,532MHz

· 操作系统:QNX

· 闪存:256MB(可增容至8GB)

· 存储器:128MB DD32 SDRAM

· 工作电压:6~32VDC,极性反接和甩负荷保护

· 功耗:最大10W

·CAN接口:最多2个2.0B规格的CAN总线接口;可选NMEA2000独立接口

· 通讯接口:RS485

· 视频输入(可选) : NTSC 或PAL

· 通讯协议:J1939,NMEA 2000,CANOpen

· 连接:4个Deutsch DT 6 针连接器

· 键盘:16个按键(最多)

·USB 2.0 接口 (高速) ,可选OTG支持

· 输出:1个开关量输出,开路漏极,允许500mA沉降电流

· 输入:1个阻抗,0~5V或4~20mA输入





PV450总线显示器环境规格

· 工作温度:- 30°C~ +70°C

· 存储温度:- 40°C~ +85°C

· 防护等级:前后盖防护等级IP67

· 辐射:符合SAE J1113

· 抗干扰:符合SAE J1113

· 抗振性:任意振动,7.86 Grms ( 5~ 2000Hz ),3轴

· 抗冲击:3轴,+/-50G

额外选项

· LCD尺寸规格

· 额外漏极开路输出

· 额外模拟量输入

· 开关量输入

· 频率/速度/PWM输入

· 投射式电容触摸屏

· 实时时钟

· 功能强大 小巧轻便 经久耐用 PV450
· 紧凑的结构,以适用较小的安装空间
· 高科技液晶粘贴技术,具有最佳视觉效果
· 精简的模块化设计
· 易于适用的配置软件
· 数据记录功能
· 可按客户要求定制的面框、按钮、I/O模块

  • Compact CAN-based display to fit your application with freely configurable design
  • Customize the bezel, buttons, I/O interface and more
  • Easy-to-use PowerVision Configuration Studio
  • Bonded LCD screen viewable in direct sunlight
  • Rugged / Reliable Design
  • Endless possibilities

The PowerView450 display features a freely configurable design. Any of the major components can be custom engineered to meet your exact needs. It's an incredible amount of customisation with minimal non-recurring engineering costs.

You can change the shape of the bezel and buttons. You can rework the I/O board to add extra input. You can add custom graphics and company branding to the interface.

The PowerView450 display is compatible with PowerVision? Configuration Studio, so you can continue to make quick and easy changes to the display.

The PV450 display is also highly durable: see the full environmental specs below.

Specifications

Technical

  • Display: 4.3 in./109mm colour transmissive TFT LCD;
    bonding and optical coating for daylight visibility
  • Resolution: WQVGA, 480 x 272 pixels, 16-bit colour
  • Aspect Ratio: 16:9
  • Orientation: Landscape or portrait
  • Backlighting: LED, 500-650 cd / m2 (30,000 hr lifetime)
  • Microprocessor: Freescale iMX35 32bit, 532Mhz
  • QNX Operating System
  • Flash Memory: 256 MB (explandable to 8GB)
  • RAM: 128 Mbytes DDR2 SDRAM
  • Operating Voltage: 6-32 VDC, protected against reverse polarity and load-dump
  • Power Consumption: 10W max
  • CAN: Two CAN 2.0B; optional NMEA 2000 isolation
  • RS485: 1 MODBUS Master/Slave
  • Video input (Optional): Two NTSC/PAL input channels with one displayed at a time.
  • Protocols: J1939, NMEA 2000, CANopen, freeform
  • Connection: 4 Deutsch DT 6-pin connectors
  • Keyboard: 8 tactile buttons (will support up to 16)
  • USB: 2.0 host (full speed), optional OTG support
  • Output: (1) Open-drain, capable of sinking 500 mA
  • Input: (1) Resistive, 0-5 V, or 4-20 mA (software configurable)
  • Real-time clock with battery backup

Environmental

  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +85°C
  • Protection: IP 66 and 67, front and back.
  • Emissions and Immunity: Electromagnetic Compatibility: 2004/108/EC
    • EN 61000-6-4
    • EN 61000-6-2 (immunity)
    • EN 501121-3-2
    • EN 12895
    • J1113/2, 4, 11, 12, 21, 24, 26, and 41
  • Vibration: Random vibration, 7.86 Grms (5-2000 Hz), 3 axis
  • Shock: +/- 50G in 3 axis
  • Additional Options: LCD Touchscreen (projected capacitance) capability



- 如何订货

Part Number Model/Description Notes
Part Number Model/Description Notes
78700436 PV450 Display
78700538 PV450, J1939, NMEA, with Video Display
78700515 PV450, with Video Display
78700543 PV450-01-CSA, with Video (cCSAus) Display
78700544 PV450NV-01-CSA, (cCSAus) Display
78700563 HV450, J1939, with video Commercial marine configuration and non-isolated CAN ports
78700538 HV450, J1939, NMEA, with video Commercial marine configuration with one NMEA 2000 isolated CAN port
78000831 PV450, Visor Kit Accessories
