Murphy EG系列电动式仪表 更精确 更耐用 更先进

PDF中文技术选型资料

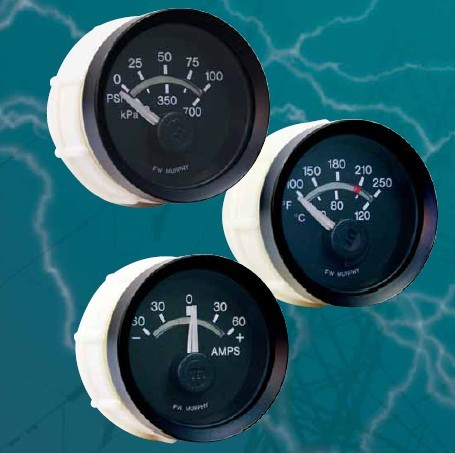

Murphy EG21系列电动仪表和EGS21系列电动继电式仪表以最先进的技术和可靠的性能把工程机械专用仪表推向了一个新的高潮。Murphy's EG21 Series Electric Gage and the EGS21 Series Swichgage take the electric gage to new heights with proven state of the art technology and reliability.

技术更新改善了仪表照明、接线 及精确度 可适用于各种恶劣的环境:潮湿、高/低 温、强腐蚀等
全密封的外壳设计 柔和的、防反光的刻度盘
符合SAE J1810标准 指针上装有冷光二极管以增加夜间的可视度
采用防腐蚀材料制造 镜带设计,消除因视觉产生的读数误差.

EGS21系列电动继电式仪表在拥有EG21所有功能的基础上,还增加了一套可调基点的“霍尔效应”开关输出,可触发报警或关闭机器。触发值可在刻度的90%范围 内进行调节,并可在仪表刻度盘上显示。你不但拥有了电动式仪表安装的简便,还享受到了摩菲公司著名的继电式仪表的可靠性。

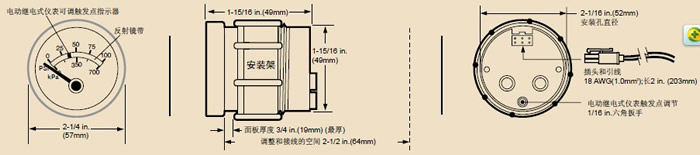

尺寸图:



特点:
操作反光镜减少视差读数误差
可抗腐蚀不锈钢边框
聚碳酸酯透镜密封
通过触摸照明易于阅读
照明指针是非常明显的参考读物
强聚酯(PBT)项目的情况进行防震空心运动
可容纳3 / 4英寸(19毫米)厚的面板安装。
开关设定点在仪表的背面
开关设定点指标清晰可见,反映规模

EG21系列电动式仪表和EGS21系列电动继电式仪表以先进的技术和可靠的性能 把工程机械专用仪表推向了一个新的高度。


规格

电源输入(所有型号及传感器):12V直流电源或24V直流电源。
外壳:聚酯(PBT),防撞击、防水。
表框:抛光316不锈钢;可另选黑色或SAE型。
镜面:防紫外线,透明聚碳酸酯。
刻度盘:黑底,白色刻度(背光启动后,刻度显示为红色); 双刻度(℃、℉)显示;镜带设计消除视觉误差。

电 动 继电式仪表传感元件:霍尔效应;输出接地信号(沉降输出);
额定:300mA恒定电流(EGS21型); 压力表、油位表、电压表为递减触发,温度表和电流表为递增触发; 饱和输出电压(输出开关压降):25℃时1.3-2.3V。
电动继电式仪表触发点指示器:在镜带上显示; 可在仪表背面进行调节(用1/16 in.六角扳手调节)。

接线:插头和引线,线径:18AWG(1.0mm2),线长:8 in.(203mm)。
工作温度:-40-185℉(-40-+85℃)。
存储温度:-77-185℉(-60-+85℃)。
过压保护(仪表装置):最多可承受200%标称电压5分钟。符合SAE J1810标准。
极性反接(仪表装置):在工作温度范围内,可无限时承受极性反接。
环境测试:符合SAE J1810标准。

重要提示:EG21和EGS21系列仪表的标称电压均为12V。应用在24V系统中时,分压电阻已经包含在线束内,所以在订货时,请明确指出系统电压

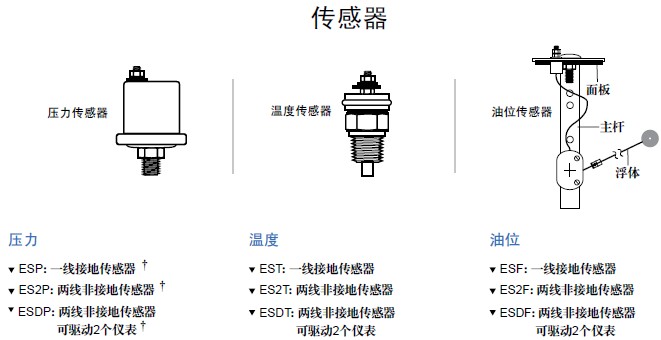

传感器ESP/ES2P Series Pressure Senders PRESSURE SENDERS

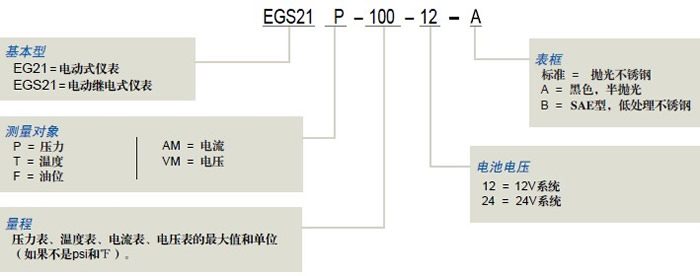

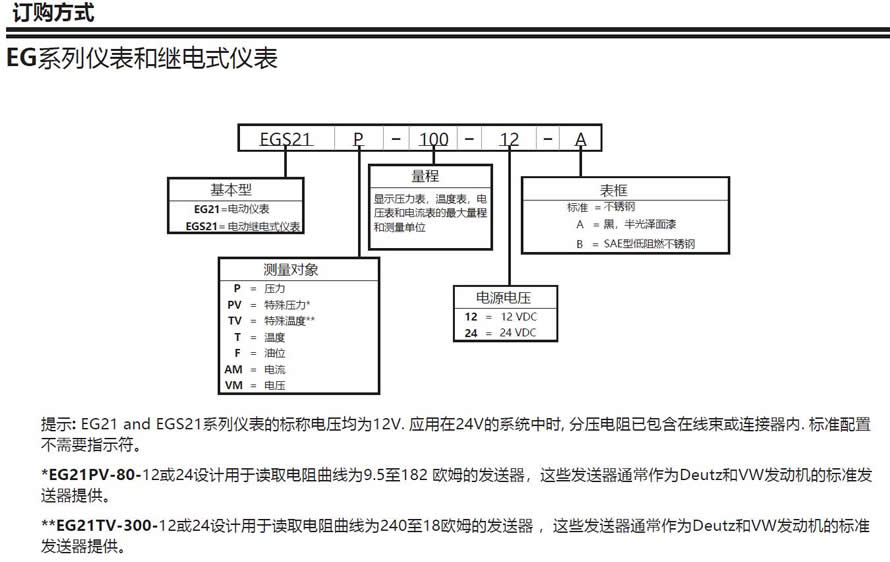

如何订购EG系列仪表及EGS系列仪表

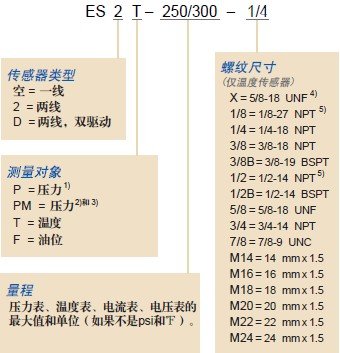

如何订购EG传感器

设备外安装套件

该套件可用于单独安装ESPM、ES2PM、ESDPM型压力传感器于设备之外。
必须注意保护不要受到强烈震动而导致损坏。客户自备软管及接头。
请在订货时注明部件号:30-00-0213

1) 不高于100 psi (689 kPa) [6.89 bar]。
2) 高于100 psi (689 kPa) [6.89 bar]。
3) 推荐安装在设备之外。
4) 直螺纹,配合接头螺母。
5) 无需单独的接头螺母。

提示:ES2T和ESDT型可选保护帽。
请注明部件号:00-00-3624。
油位传感器仅用于油箱。
油箱深度范围:6-24 in.(152-610 mm)。


电动继电式仪表可调触发点指示器
反射镜带
1-15/16 in.(49mm)
1-15/16 in.
(49mm)
面板厚度 3/4 in.(19mm) (最厚)
调整和接线的空间 2-1/2 in.(64mm)
2-1/4 in.
(57mm)
2-1/16 in.(52mm)
安装孔直径
插头和引线
18 AWG(1.0mm2);长2 in. (203mm)
电动继电式仪表触发点调节
1/16 in.六角扳手
指针上装有“冷光”二极管以增加夜间
的可视度
安装架

压力
ESP: 一线接地传感器
ES2P: 两线非接地传感器
ESDP: 两线非接地传感器
可驱动2个仪表

温度
EST: 一线接地传感器
ES2T: 两线非接地传感器
ESDT: 两线非接地传感器
可驱动2个仪表

油位
ESF: 一线接地传感器
ES2F: 两线非接地传感器
ESDF: 两线非接地传感器
可驱动2个仪表

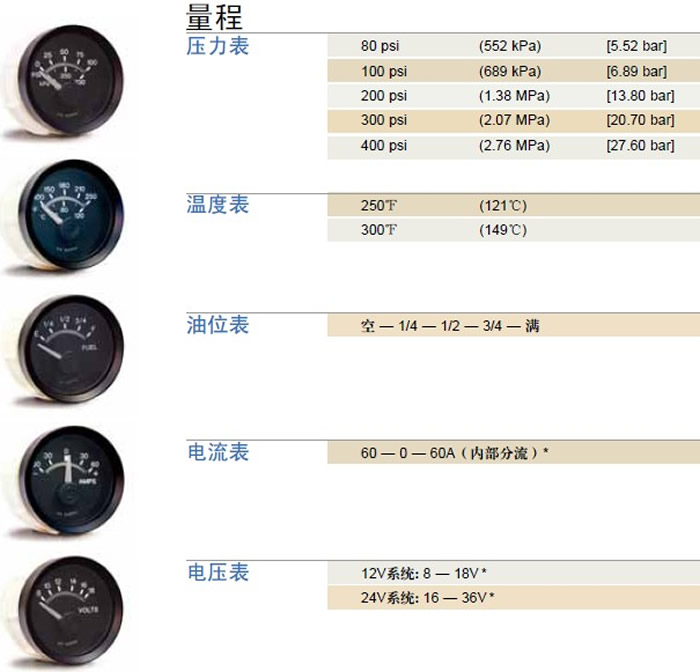

压力表80 psi (552 kPa) [5.52 bar]
100 psi (689 kPa) [6.89 bar]
200 psi (1.38 MPa) [13.80 bar]
300 psi (2.07 MPa) [20.70 bar]
400 psi (2.76 MPa) [27.60 bar]
温度表250℉ (121℃)
300℉ (149℃)
油位表空 — 1/4 — 1/2 — 3/4 — 满
电流表60 — 0 — 60A(内部分流)*
电压表 12V系统: 8 — 18V *
24V系统: 16 — 36V *
不高于100 psi (689 kPa) [6.89 bar]。
量程
传感器
压力传感器温度传感器油位传感器
面板
主杆
浮体
测量对象
P = 压力
T = 温度
F = 油位
AM = 电流
VM = 电压

基本型
EG21= 电动式仪表
EGS21= 电动继电式仪表

量程
压力表、温度表、电流表、电压表的最大值和单位
(如果不是psi和℉)。
表框
标准 = 抛光不锈钢
A = 黑色,半抛光
B = SAE型,低处理不锈钢
电池电压
12 = 12V系统
24 = 24V系统

如何订购EG传感器如何订购配件和替换零件
如何订购EG系列仪表及EGS系列仪表
传感器类型
空= 一线
2 = 两线
D = 两线,双驱动
量程
螺纹尺寸
(仅温度传感器)
X= 5/8-18 UNF 4)
1/8 = 1/8-27 NPT 5)
1/4 = 1/4-18 NPT
3/8 = 3/8-18 NPT
3/8B= 3/8-19 BSPT
1/2 = 1/2-14 NPT5)
1/2B= 1/2-14 BSPT
5/8 = 5/8-18 UNF
3/4 = 3/4-14 NPT
7/8 = 7/8-9 UNC
M14= 14 mmx 1.5
M16= 16 mmx 1.5
M18= 18 mmx 1.5
M20= 20 mmx 1.5
M22= 22 mmx 1.5
M24= 24 mmx 1.5
P = 压力 1)
PM = 压力2)和3)
T = 温度
F = 油位

提示:EG21和EGS21系列仪表的标称电压均为12V。应用在24V的系统中时,降压电阻已包含在连接器总成内。

连接器总成
下表为所有接线/连接器总成的替换零件明细。电压转换器有24V和32V两种。

请在订货时注明部件号。

订购小容量配置请注意:
订购小容量配置产品需要达到最少购买量。
EGS21 P – 100 – 12
12V系统 24V系统
EG21P/ T/F 05004506 05006166 (05004546)
EGS21P/ T/F 05004507 05006168 (05004548)
EG21AM 05004505 05006170 (05004550)
EGS21AM 05004504 05006172 (05004552)
EG21VM 05004508 05004508
EGS21VM 05004504 05004504
ES 2 T – 250/300 – 1/4





FW Murphy ELECTRIC GAUGE & ELECTRIC SWICHGAGE电动表电感式仪表




murphy EG21T | EG21P | EG21F | EGS21F | EG21A | EG21V | EGS21V | ESP | ES2P | ESDP | EST | ES2T | ESDT| ESF| ES2F| ESDF| EG21系列电感式仪表 | FW Murphy ELECTRIC GAUGE & ELECTRIC SWICHGAGE电动表电感式仪表 + 中文资料下载

EG Series:

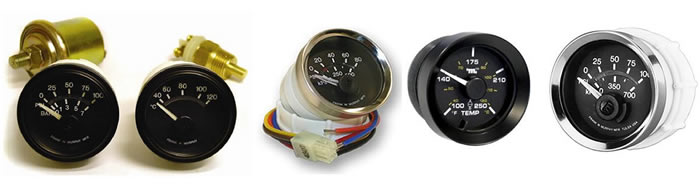

The EG21 Series Electric Gage and the EGS21 Series SWICHGAGE take the electric gage to new heights with proven state of the art technology and reliability. Utilizing our proven EG Air Core movement design, the EG21 Series offers technological improvements in overall operation, lighting, accuracy in reading, wiring, and installation. The EG21 Series gives you assurance of highest reliability and service. These rugged gages are environmentally sealed and exceed the rigid SAE J1810 standard for reliability operation in tough off-road and power unit environments. Corrosion-resistant materials are used throughout, making the EG21 highly desirable for marine and other environmentally sensitive applications. Soft, non-glare dial and pointer illumination is provided by a “cold light” LED and when powered the white lettering and clear pointer become soft red. Mirror band eliminates parallax reading error when the pointer and its reflection are aligned. Easy to install, and fits standard 2-1/16 in. (52 mm) opening. The EGS21 Series SWICHGAGE has all of the features of the EG21 Series Gage plus an adjustable set point Power Hall Effect switch output for operating alarms or equipment shutdown. The trip point is adjustable over 90% of the scale and has a set point indicator visible from the gage face. Now you can have both, the ease of electric gage installation and the reliable switching of Murphy's famous SWICHGAGE.
(.pdf file)


Pressure Gages for EG Series: EG21P Series Pressure Gage
- Scales through 400 psi (2.76 MPa) [27.60 bar].
- Various units of measurement available.
- Pressure sender.
EGS21P Pressure SWICHGAGE
- Similar to EG21P Series with adjustable switch output for operating alarms or
shutdown.



Temperature Gages for EG Series: EG21T Temperature Gage
- Dual-scale dials in degrees Fahrenheit and Celsius.
- Two ranges available for:
100 to 250 degrees F (38 to 120 degrees C) or
140 to 300 degrees F (60 to 150 degrees C).
- Suitable for engine coolant or oil temperature.
- Temperature sender.
EGS21T Temperature SWICHGAGE
- Similar to EG21T with adjustable switch output.



Fuel Level Gage for EG Series: EG21F Series Fuel Level Gage
- Monitors tank fuel level from full to empty.
- Accurate level indication.
- Float-actuated fuel level senders are available.
- High visibility pointer.
- Fuel sender.
EGS21F Fuel Level SWICHGAGE
- Similar to EG21F with adjustable switch output.



Ammeter Gage for EG Series: EG21A Series Ammeter
- For +/- 60 amperes (internal shunt) or +/- 100 amperes (internal shunt).
- Easy to read dial with center zero.
EGS21A Ammeter SWICHGAGE
- Similar to EG21A with adjustable switch output.



Voltmeter Gage for EG Series: EG21V Voltmeter
- Available for 12 and 24 volt systems.
- Easy to read dial.
EGS21V Voltmeter SWICHGAGE
- Similar to EG21V with adjustable switch output.



Senders for Electric Gages: Pressure Sender
Three versions available. Specify pressure range for each sender.
- ESP: 1-wire sender.
- ES2P: 2-wire sender drives one gage.
- ESDP: 2-wire sender drives two gages.
Temperature Sender
Three versions available. Specify temperature range and thread size.
130-250 degrees F / 140-300 degrees F (54-121 degrees C / 60-149 degrees C).
- EST: 1-wire sender.
- ES2T: 2-wire sender drives one gage.
- ESDT: 2-wire sender drives two gages.
Fuel Level Sender
Three versions available.
For use on tanks only. Tank depths 6 to 24 in. (152 to 610 mm).
- ESF: 1-wire sender.
- ES2F: 2-wire sender drives one gage.
- ESDF: 2-wire sender drives two gages.

Our EG(S)21 electric gauges, Swichgages and senders are found in applications requiring the highest levels of reliability and environmental protection. Standard gauges and Swichgages feature a shock resistance air core movement, a polyester (PBT) case and polycarbonate lens; every gauge in this line is environmentally sealed to exclude moisture and other corrosive elements. Also featured are a backlighted dial, easy installation and a standard fit for 2-1/16-inch (52 mm) openings.



EG series – Electric gauges, Swichgages and ES resistive senders.
EG Series – The electric gage and electric Swichgage instrument.
EN204 Series – Four-function Tattletale Annunciator.
See also:-
CANdrive: J1939 CANbus to EG(S) series interface
FuelCAN: resistive fuel level sender to J1939 interface

Murphy EG系列电动式仪表

Murphy EGS21 Series Electric Switchgages
Murphy EGS21 Series Electric Switchgage

The Murphy EGS21 Series electric swichgage instrument has all of the features of the EG21 Series gauge plus an adjustable set point PowerHall Effect switch output for operating alarms or equipment shutdown.

Murphy EGS21 Series Electric Swichgage Specifications

Case Polyester (PBT), impact and weather resistant with screw-on mounting clamp
Bezel Polished 316 stainless steel standard
Lens Clear polycarbonate and UV stabilized
Publications Murphy EGS21 Series Data Sheet

Murphy EGS21 Series Installation Sheet

EGS21P-100-12-A (05702407) Item Guaranteed in Stock
ELECTRIC PRESSURE SWICHGAGE (100 PSI, 12 VDC, BLACK BEZEL)

EGS21T-250-12 (10701292)
ELECTRIC TEMPERATURE SWICHGAGE (250°F, 12 VDC)

EGS21F-12 (15700506)
ELECTRIC FUEL SWICHGAGE (12 VDC)

EGS21P-100-12 (05702405)
ELECTRIC PRESSURE SWICHGAGE (100 PSI, 12 VDC)

EGS21T-300-12-A (10701306)
ELECTRIC TEMPERATURE SWICHGAGE (300°F, 12 VDC, BLACK BEZEL)

EGS21T-300-24 (10701305)
ELECTRIC TEMPERATURE SWICHGAGE (300°F, 24 VDC)

EGS21P-200-24-A (05702424)
ELECTRIC PRESSURE SWICHGAGE (200 PSI, 24 VDC, BLACK BEZEL)

EGS21T-250-12-A (10701294)
ELECTRIC TEMPERATURE SWICHGAGE (250°F, 12 VDC, BLACK BEZEL)

EGS21P-100-24-A (05702408)
ELECTRIC PRESSURE SWICHGAGE (100 PSI, 24 VDC, BLACK BEZEL)

EGS21P-80-12 (05702389)
ELECTRIC PRESSURE SWICHGAGE (80 PSI, 12 VDC)

EGS21F-24-A (15700509)
ELECTRIC FUEL SWICHGAGE (24 VDC, BLACK BEZEL)

EGS21VM-24 (65700127)
ELECTRIC VOLTMETER SWICHGAGE (24 VDC)

EGS21T-300-12 (10701304)
ELECTRIC TEMPERATURE SWICHGAGE (300°F, 12 VDC)

EGS21P-100-12-B (05702409)
ELECTRIC PRESSURE SWICHGAGE (100 PSI, 12 VDC, SAE BEZEL)

EGS21P-100-24 (05702406)
ELECTRIC PRESSURE SWICHGAGE (100 PSI, 24 VDC)

EGS21P-200-24 (05702422)
ELECTRIC PRESSURE SWICHGAGE (200 PSI, 24 VDC)

EG21-VM-12-A (65700119)
ELECTRIC GAGE (VOLTMETER, 12 VDC, BLACK BEZEL)

EG21-VM-12 (65700118)
ELECTRIC GAGE (VOLTMETER, 12 VDC, STAINLESS BEZEL)

EGS21P-400-24 (05702452)
ELECTRIC PRESSURE SWICHGAGE (400 PSI, 24 VDC)

EGS21P-80-12-A (05702391)
ELECTRIC PRESSURE SWICHGAGE (80 PSI, 12 VDC, BLACK BEZEL)

EGS21T-250-12-B (10701296)
ELECTRIC TEMPERATURE SWICHGAGE (250°F, 12 VDC, SAE BEZEL)

EG21-F-12-A (15700502)
ELECTRIC FUEL LEVEL GAGE - (12 VDC, BLACK BEZEL)

EGS21P-400-12 (05702451)
ELECTRIC PRESSURE SWICHGAGE (400 PSI, 12 VDC)

EGS21P-300-12-A (05702439)
ELECTRIC PRESSURE SWICHGAGE (300 PSI, 12 VDC, BLACK BEZEL)

EGS21P-200-12 (05702421)
ELECTRIC PRESSURE SWICHGAGE (200 PSI, 12 VDC)

EG21-T-250-12-A (10701288)
ELECTRIC TEMPERATURE GAGE - 250°F (12 VDC, BLACK BEZEL)

EG21-PV-80-12-A (05090126)
ELECTRIC PRESSURE GAGE - 80 PSI (9.5-182 OHMS SENDERS, 12 VDC, BLACK BEZEL)

EGS21T-250-24 (10701293)
ELECTRIC TEMPERATURE SWICHGAGE (250°F, 24 VDC)

EGS21P-300-12 (05702437)
ELECTRIC PRESSURE SWICHGAGE (300 PSI, 12 VDC)

EGS21VM-12 (65700121)
ELECTRIC VOLTMETER SWICHGAGE (12 VDC)

EGS21F-24 (15700507)
ELECTRIC FUEL SWICHGAGE (24 VDC)
