Murphy转速小时表 AT / ATH Tachometers
Murphy AT / ATH Tachometers

Murphy AT 和 ATH 系列转速表采用先进的电子电路来显示发动机转速。均配有配合 3-3/8 英寸( 86 毫米)标准仪表盘安装孔的安装支架。全方位 270 °扫描的指针使数据显示范围更广,读取数据更轻松。表盘背光适合夜间使用。 ATH 系列转速表还配有小时计来记录发动机的运行时间。

不同型号适用于发电机、转速传感器或者点火装置的信号输入。发电机信号输入可来自 4,6,8,12,14 或者 16 极发电机所产生的脉冲 (3-40PPR) 。输入信号亦可来自摩菲公司生产的 MP 系列转速传感器,其适用于带 50 至 304 齿的飞轮。点火装置输入适用于 2-10 缸的火花点火式发动机。所有型号都适用于正极接地、负极接地或者不接地、隔离的电气系统,同时可防止极性反接。

样图所示:ATHA型转速小时表

规格参数:

3000RPM或4000RPM量程 0~100,000小时
信号可来自转速传感器、发电机或点火装置
通过DIP开关轻松校准
全刻度盘背光照明
可接11-28VDC电源
本文献所涉及的产品符合EMC中有关电磁兼容性的89/336/EEC条款(除非另有说明)。
4000 RPM –0 to 100,000 hours
Sensing from Magnetic Sensor, Battery Charging Alternator or Ignition Signal
High Visibility Analog Readout
Air Core Movement
Easy Calibration through Dip Switches
Through Dial Lighting
Powered by 11-28 VDC Battery Available
Improved quality
New, easy one-button calibration procedure
Every model will accept all signal sources: alternator, magnetic pickup or ignition
Easy ring clamp for installation
LED backlight

所有型号均采用 11~28VDC 电源,并都有防止极性反接的保护。

产品型号

ATS系列转速传感器信号输入转速表
50-304飞轮齿,11~28VDC
4000RPM时输入频率范围为3333Hz~20.27Hz
ATHS系列转速传感器信号输入转速/小时表
50-304飞轮齿,11~28VDC
4000RPM时输入频率范围为3333Hz~20.27Hz
ATA系列发电机信号输入转速表
3-40脉冲,12~28VDC,4000RPM时输入频率范围为200~2667Hz
ATHA系列发电机信号输入转速/小时表
3-40脉冲,12~28VDC,4000RPM时输入频率范围为200~2667Hz
ATHI系列点火装置信号输入转速/小时表
2-10缸,4冲程发动机,4000RPM时输入频率范围为66.7~333.3Hz

表框类型

产品尺寸

技术规格
ATS/ATHS型
电源输入:11-28VDC(70~120mA,不包括背光灯负载)
背光灯:3.4W T-10 基座式可拆换灯泡
输入信号电压:最小1.5Vrms
精度:转速表:+2%满量程
小时计:+0.01%小时
温度:-40~82℃(无永久性破坏)
刻度盘(正面):270°指针,白色数字显示(黑色背景面)
表框:银色304不锈钢和黑色 IS 513 E.E.E. CRCA钢
刻度:0~3000RPM或0~4000RPM
壳体材质:塑料
小时计范围:99999.9小时(0.1小时增量)

ATA/ATHA/ATHI型
电源输入:11-28VDC(70~120mA,不包括背光灯负载)
背光灯:3.4W T-10 基座式可拆换灯泡
输入信号电压:低电压:最大0.5V;
高电压:最小8.0V
精度:转速表:+2%满量程
小时计:+0.01%小时
温度:-40~82℃(无永久性破坏)
刻度盘(正面):270°指针,白色数字显示(黑色背景面)
表框:银色304不锈钢和黑色 IS 513 E.E.E. CRCA钢
刻度:0~3000RPM或0~4000RPM
壳体材质:塑料
小时计范围:99999.9小时(0.1小时增量)

如何订购
转速传感器输入型:50-304飞轮齿,11-28VDC

型号
ATS-30
ATS-40
ATS-30-A
ATS-40-A
描述
银色不锈钢表框,3000RPM
银色不锈钢表框,4000RPM
黑色不锈钢表框,3000RPM
黑色不锈钢表框,4000RPM


转速传感器输入型:带小时计50-304飞轮齿,11-28VDC

型号
ATHS-30
ATHS-40
ATHS-30-A
ATHS-40-A

描述
银色不锈钢表框,3000RPM
银色不锈钢表框,4000RPM
黑色不锈钢表框,3000RPM
黑色不锈钢表框,4000RPM


发动机信号输入型:3-40脉冲,11-28VDC

型号
ATA-30
ATA-40
ATA-30-A
ATA-40-A

描述
银色不锈钢表框,3000RPM
银色不锈钢表框,4000RPM
黑色不锈钢表框,3000RPM
黑色不锈钢表框,4000RPM

发动机信号输入型:3-40脉冲,11-28VDC

型号
ATHA-30
ATHA-40
ATHA-30-A
ATHA-40-A
描述
银色不锈钢表框,3000RPM
银色不锈钢表框,4000RPM
黑色不锈钢表框,3000RPM
黑色不锈钢表框,4000RPM

点火信号输入型:带小时计,1-5脉冲

型号
ATHI-40-A
描述
黑色不锈钢表框,4000RPM

规格特点:

可接受转速传感器和发电机信号
指针摆幅区间大,读书准确
十字线圈驱动
调校简单
全表盘背光照明
Power Input: 10-32 VDC (100 mA max at 32 VDC, does not include backlight)
Backlight: LED, Red (75 mA max at 32 VDC)
Accuracy:
Tachometer: +2% full scale
Hourmeter: +/- 0.02%
Temperature Range: -40 to 185° F (-40 to 85° C)
Dial (Face Plate): 240° sweep with white numerals
Bezel: 304 stainless steel
Scale: 0-3000 RPM
Case Material: Nylon, 12% glass filled
Hourmeter Range: 99999.9 hours in 0.1 increments.
Electromagnetic Compatibility: 2004/108/EC
IP66 front and IP32 back (vented case)
RoHS Compliant

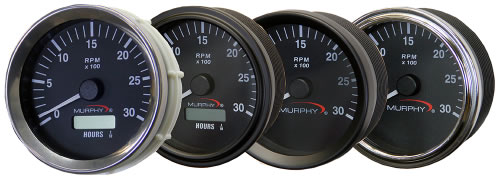

Murphy AT Series Tachometers

The AT Series tachometers are rugged, transistorized instruments with solid-state circuitry for indication of engine RPM.

AT Series Tachometers Specifications


ATHA-40 (20700137) ALTERNATOR SIGNAL TACH/HOURMETER (BRIGHT STAINLESS STEEL BEZEL)

ATHA-40-B (20700139) ALTERNATOR SIGNAL TACH/HOURMETER (SAE BRIGHT STAINLESS STEEL BEZEL)

ATS-40-B (20700229) MAGNETIC SENSOR TACHOMETER (SAE BRIGHT STAINLESS STEEL BEZEL)

ATHA-40-A (20700141) ALTERNATOR SIGNAL TACH/HOURMETER (BLACK STAINLESS STEEL BEZEL)

ATS-40 (20700227) MAGNETIC SENSOR TACHOMETER (BRIGHT STAINLESS STEEL BEZEL)

ATS-40-A (20700228) MAGNETIC SENSOR TACHOMETER (BLACK STAINLESS STEEL BEZEL)

ATHS-40 (20700142) MAGNETIC SENSOR TACH/HOURMETER (BRIGHT STAINLESS STEEL BEZEL)

ATHS-40-B (20700225)MAGNETIC SENSOR TACH/HOURMETER (SAE BRIGHT STAINLESS STEEL BEZEL)

ATHS-40-A (20700143)MAGNETIC SENSOR TACH/HOURMETER (BLACK STAINLESS STEEL BEZEL)

ATHS-40-C (20700226) MAGNETIC SENSOR TACH/HOURMETER (SAE BLACK STAINLESS STEEL BEZEL)

ATA-40 (20700134) ALTERNATOR SIGNAL TACHOMETER (BRIGHT STAINLESS STEEL BEZEL)

ATA-40-B (20700136)ALTERNATOR SIGNAL TACHOMETER (SAE BRIGHT STAINLESS STEEL BEZEL)

ATHI-40-A (20700231) IGNITION SIGNAL TACH/HOURMETER (BLACK STAINLESS STEEL BEZEL)

ATA-40-A (20700135) ALTERNATOR SIGNAL TACHOMETER (BLACK STAINLESS STEEL BEZEL)

AT / ATH Tachometers Series Models:

ATS Series Magnetic Sensor Signal Tach
50-304 flywheel teeth* 11-28 VDC, 2733 Hz to 13.62 kHz @ 4000 RPM

ATHS Series Magnetic Sensor Signal Tachometer/Hourmeter
50-304 flywheel teeth* 11-28 VDC, 2733 Hz to 13.62 kHz @ 4000 RPM

ATA Series Alternator Signal Tachometer
3-32 pulses* 12 VDC, 137 to 1330 Hz @ 4000 RPM

ATHA Series Alternator Signal Tachometer/Hourmeter
3-32 pulses* 12 VDC, 137 to 1330 Hz @ 4000 RPM or 193 to 1815 Hz @ 4000 RPM

ATHI Series Ignition Signal Tachometer/Hourmeter
4, 6 or 8 cylinder engines @ 4000 RPM



Specifications

Magnetic Sensor Driven Models
Power Input: 11-28VDC (70mA – 120mA except lamp load)
Backlight: 3.4W T-10 wedge base bulb
RPM Input Signal Voltage: 1.5Vrms minimum
Accuracy:
Tachometer: +2% full scale
Hourmeter: +0.01% hours, +1 count
Temperature Range: -40oC to +82oC (no permanent damage shall occur)
Dial (Face Plate): 270o sweep with white numerals (over black background)
Bezel: 304 stainless steel for bright and IS 513 E.E.E. CRCA steel for black
Scale: 0-4000RPM
Case Material: Plastic
Hourmeter Range: 99999.9 hours in 0.1 increments.
Alternator Driven and Ignition Driven Models
Power Input: 11-28VDC (70mA-120mA except lamp load)
Backlight: 3.4W T-10 wedge base bulb
RPM Input Signal Voltage: V low: 0.5V max, V high: 8.0V min.
Accuracy:
Tachometer: +2% full scale
Hourmeter: +0.01% hours, +1 count
Temperature Range: -40oC to +82oC (no permanent damage shall occur)
Dial (Face Plate): 270o sweep with white numerals (over black background)
Bezel: 304 stainless steel for bright and IS 513 E.E.E. CRCA steel for black
Scale: 0-4000RPM
Case Material: Plastic
Hourmeter Range: 99999.9 hours in 0.1 increments.

Dimensions

Murphy转速表ATHS-30-A
Murphy ATS, ATA, ATHA, ATHS Tachometers and Tach/Hourmeters
Murphy Tachometer and Tach/Hourmeter Installation Instructions Series: ATS, ATHS, ATA, ATHA, ATHI

How to Order
Order the Tachometer or Tachometer/Hourmeter by model number.
Magnetic Sensor Tachometer 3000 RPM; 70 - 225 pulses 12 VDC
Model # Designation
ATS-30-12 Bright Stainless Steel Bezel
ATS-30-12-A Black Stainless Steel Bezel
ATS-30-12-B SAE Bright Stainless Steel Bezel
ATS-30-12-C SAE Black Stainless Steel Bezel
Magnetic Sensor Tach/Hourmeter 3000 RPM; 70 - 225 pulses 12 VDC
ATHS-30-12 Bright Stainless Steel Bezel
ATHS-30-12-A Black Stainless Steel Bezel
ATHS-30-12-B SAE Bright Stainless Steel Bezel
ATHS-30-12-C SAE Black Stainless Steel Bezel
Alternator Signal Tachometer 3000 RPM; 3 - 27 pulses 12 VDC
ATA-30-12 Bright Stainless Steel Bezel
ATA-30-12-A Black Stainless Steel Bezel
ATA-30-12-B SAE Bright Stainless Steel Bezel
ATA-30-12-C SAE Black Stainless Steel Bezel
Alternator Signal Tach/Hourmeter 4000 RPM; 3 - 27 pulses 12 VDC
ATHA-40-12 Bright Stainless Steel Bezel
ATHA-40-12-A Black Stainless Steel Bezel
ATHA-40-12-B SAE Bright Stainless Steel Bezel
ATHA-40-12-C SAE Black Stainless Steel Bezel
ATHA-40-12-A Black Stainless Steel Bezel
Ignition Signal Tach/Hourmeter 4000 RPM; 4, 6 or 8 cylinder 12 VDC
ATHI-40-12-A Black Stainless Steel Bezel
Optional Power Input Convertor
ATVC12/24 24 VDC to 12 VDC Converter

Models
Magnetic Sensor Tachometer 3000 RPM; 70 - 225 pulses 12 VDC
Model # Designation
ATS-30-12 Bright Stainless Steel Bezel
ATS-30-12-A Black Stainless Steel Bezel
ATS-30-12-B SAE Bright Stainless Steel Bezel
ATS-30-12-C SAE Black Stainless Steel Bezel
Magnetic Sensor Tach/Hourmeter 3000 RPM; 70 - 225 pulses 12 VDC
ATHS-30-12 Bright Stainless Steel Bezel
ATHS-30-12-A Black Stainless Steel Bezel
ATHS-30-12-B SAE Bright Stainless Steel Bezel
ATHS-30-12-C SAE Black Stainless Steel Bezel
Alternator Signal Tachometer 3000 RPM; 3 - 27 pulses 12 VDC
ATA-30-12 Bright Stainless Steel Bezel
ATA-30-12-A Black Stainless Steel Bezel
ATA-30-12-B SAE Bright Stainless Steel Bezel
ATA-30-12-C SAE Black Stainless Steel Bezel
Alternator Signal Tach/Hourmeter 4000 RPM; 3 - 27 pulses 12 VDC
ATHA-30-12 Bright Stainless Steel Bezel
ATHA-30-12-A Black Stainless Steel Bezel
ATHA-30-12-B SAE Bright Stainless Steel Bezel
ATHA-30-12-C SAE Black Stainless Steel Bezel
ATHA-40-12-A Black Stainless Steel Bezel
Ignition Signal Tach/Hourmeter 4000 RPM; 4, 6 or 8 cylinder 12 VDC
ATHI-40-12-A Black Stainless Steel Bezel
Optional Items and Replacement Bulbs
ATVC12/24 24 VDC to 12 VDC Converter
00-00-4617 12 VDC Light Bulb
00-00-4618 24 VDC Light Bulb

Models Magnetic Sensor Tachometer 3000 RPM; 70 - 225 pulses 12 VDC Model # Designation ATS-30-12 Bright Stainless Steel Bezel ATS-30-12-A Black Stainless Steel Bezel ATS-30-12-B SAE Bright Stainless Steel Bezel ATS-30-12-C SAE Black Stainless Steel Bezel Magnetic Sensor Tach/Hourmeter 3000 RPM; 70 - 225 pulses 12 VDC ATHS-30-12 Bright Stainless Steel Bezel ATHS-30-12-A Black Stainless Steel Bezel ATHS-30-12-B SAE Bright Stainless Steel Bezel ATHS-30-12-C SAE Black Stainless Steel Bezel Alternator Signal Tachometer 3000 RPM; 3 - 27 pulses 12 VDC ATA-30-12 Bright Stainless Steel Bezel ATA-30-12-A Black Stainless Steel Bezel ATA-30-12-B SAE Bright Stainless Steel Bezel ATA-30-12-C SAE Black Stainless Steel Bezel Alternator Signal Tach/Hourmeter 4000 RPM; 3 - 27 pulses 12 VDC ATHA-30-12 Bright Stainless Steel Bezel ATHA-30-12-A Black Stainless Steel Bezel ATHA-30-12-B SAE Bright Stainless Steel Bezel ATHA-30-12-C SAE Black Stainless Steel Bezel ATHA-40-12-A Black Stainless Steel Bezel Ignition Signal Tach/Hourmeter 4000 RPM; 4, 6 or 8 cylinder 12 VDC ATHI-40-12-A Black Stainless Steel Bezel Optional Items and Replacement Bulbs ATVC12/24 24 VDC to 12 VDC Converter 00-00-4617 12 VDC Light Bulb 00-00-4618 24 VDC Light Bulb

New Version Part # New Version Model # Old Version Model # Old Version Part # 20700134 ATA‐40 ATA‐30‐12 20700175 ATA‐30‐24 20700198 20700135 ATA‐40‐A ATA‐30‐12‐A 20700191 ATA‐30‐24‐A 20700199 2070136 ATA‐40‐B ATA‐30‐12‐B 20700190 ATA‐30‐24‐B 20700200 207000137 ATHA‐40 ATHA‐30‐12 20700184 ATHA‐30‐24 20700206 20700141 ATHA‐40‐A ATHA‐30‐12‐A 20700183 ATHA‐30‐24‐A 20700207 ATHA‐40‐12‐A 20700221 20700139 ATHA‐40‐B ATHA‐30‐12‐B 20700182 20700140 ATHA‐40‐C ATHA‐30‐12‐C 20700181 20700142 ATHS‐40 ATHS‐30‐12 20700180 ATHS‐30‐24 20700210 20700143 ATHS‐40‐A ATHS‐30‐12‐A 20700179 ATHS‐30‐24‐A 20700211 20700225 ATHS‐40‐B ATHS‐30‐12‐B 20700178 ATHS‐30‐24‐B 20700212 20700226 ATHS‐40‐C ATHS‐30‐12‐C 20700177 ATHS‐30‐24‐C 20700213 20700227 ATS‐40 ATS‐30‐12 20700188 ATS‐30‐24 20700202 20700228 ATS‐40‐A ATS‐30‐12‐A 20700187 ATS‐30‐24‐A 20700203 20700229 ATS‐40‐B ATS‐30‐12‐B 20700186 ATS‐30‐24‐B 20700204 20700230 ATS‐40‐C ATS‐30‐12‐C 20700185



- 订货型号代码

Part Number

Model/Description

Notes

20700245

AT-30 Tachometer

Bright Stainless Steel Bezel

20700246

AT-30-A Tachometer

Black Stainless Steel Bezel

20700247

AT-30-B Tachometer

SAE Bright Stainless Steel Bezel

20700248

AT-30-C Tachometer

SAE Black Stainless Steel Bezel

20700249

ATH-30 Tach/Hourmeter

Bright Stainless Steel Bezel with Hourmeter

20700250

ATH-30-A Tach/Hourmeter

Black Stainless Steel Bezel with Hourmeter

20700251

ATH-30-B Tach/Hourmeter

SAE Bright Stainless Steel Bezel with Hourmeter

20700252

ATH-30-C Tach/Hourmeter

SAE Black Stainless Steel Bezel with Hourmeter

20700254

ATH-40-A Tach/Hourmeter

4000 RPM Black Stainless Steel Bezel with Hourmeter





- 产品技术资料下载

For more information about this product, you can download the related literature here:

Archived Literature
