FW Murphy Valves控制阀

止回阀 - 柴油

Diesel Fuel Check Valves – CKV/PRV Series

燃料切断阀

Diesel-Fuel Shutoff Valves – SV-Series

Electromechanical Fuel Shutoff Valves – M25 and M50 Series

Pneumatic Valves for Fuel Gas Shutoff Models M2582-P and M5180-P

减震阀

Pulsation Dampener – PD8100 Series

SV Series – Diesel fuel shutoff valve, solenoid-operated
CKV & PRV Series– Diesel fuel line check valves
M25 & M50 Series– Electromechanical fuel shutoff valves
M2582-P & M5180-P – Pneumatic valves for fuel gas shut off
PD8100 Series– Pulsation dampener
DVU Series Dump Valves Pneumatically controlled dump valves排污阀



脉动减振器PD8100系列

-用于控制器,仪表和记录装置等方面,对于脉动压力进行减振
-机体由黄铜,碳钢或不锈钢制成
-多型号,最高达10000psi (68.94MPa,689,47bar)
-1/4和1/2NPT管螺纹进出口
-压力SWICHGAGEMitter TM表
-SWICHGAGE?表带4-20毫安输出电流

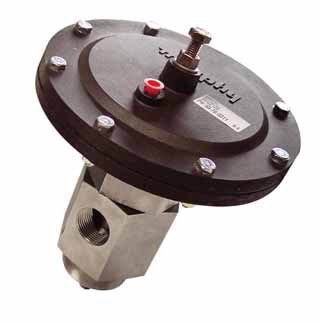

DVU排污阀


燃汽切断阀

Murphy Valves PDF技术资料下载

CKV / PRV Series Diesel fuel line check valves.
PDF
M25 /M50 Series Electromechanical fuel shutoff valves.
PDF
M2582-P / M5180-P Pneumatic valves for fuel gas shut off.
PDF
SV Series Diesel fuel shutoff valve, solenoid-operated.
PDF
PD8100 Series Pulsation dampener.
PDF

Valve Body: Sandcast aluminum (alodined for corrosion resistance). Optional steel body available on M5180-P models only (see How to Order).

Valve Seat: Buna-N

Valve Inlet Pressure (Maximum):
M2582-P: 80 psi (552 kPa) [5.52 bar]
M5180-P: 100 psi (689 kPa) [6.89 bar]

Parts Exposed to Gas Line Flow:

M2582-P:
Aluminum
Buna-N
302, 303, and 17-7 PH stainless steel

M5180-P: Aluminum (Steel optional)
Buna-N
302, 303, 304, and 416 stainless steel

Control Diaphragm: Flexweave polyester fabric and Buna-N elastomer.

Control Pressure (Maximum):
M2582-P: 75 psi (517 kPa) [5.17 bar]
M5180-P: 80 psig (552 kPa) [5.52 bar]
M2582: 80 psig (552 kPa) [5.52 bar]
M5081: 100 psig (689 kPa) [6.89 bar]
M5081FS: 100 psig (689 kPa) [6.89 bar]
M2582: 5 lbs 8 oz. (2.49 kg)
M5081: 14 lbs 8 oz. (6.58 kg)
M5081-2: 40 lbs (18.14 kg)
M5081-3: 56 lbs (25.40 kg)
M5081FS: 14 lbs 8 oz. (6.58 kg)
M5081FS-2: 40 lbs (18.14 kg)
M5081FS-3: 56 lbs (25.40 kg)
