Murphy POWERVIEW PV380 Display显示器

PV300系列显示器以性能稳定的多功能显示为特色,为电控发动机和机械发动机提供全方位的监控。 PV300系列有PV350和PV380两款显示器,能够将监控到的各种发动机和其他机器参数显示于易于读取的3.8寸QVGA的黑白液晶显示屏上。。该显示器不但能处理复杂的发动机诊断,同时还能实现基本的发动机报警及停机控制。 用户可使用摩菲的专业编程软件Power Vision Configuration Studio为PV300系列显示器进行个性化设计,包括显示图像,个性化的显示布局,和自定义的各种参数。 PV300系列显示器的技术规格请详见背面的规格描述。

Murphy PowerView 380具有强大的多功能显示器,用于多个电子发动机的高级监控。它能够在一个易于读取的3.8英寸(97mm)QVGA单色液晶显示器上监测多个发动机和机器参数。显示器能够处理复杂的发动机诊断以及基本的发动机报警/停机。使用PowerVision Configuration Studio?定制PV380显示器,这是一个直观的工具,旨在简化定制。使用该软件工具,用户可以定制基本图形、指定屏幕布局和定义自定义参数。PV380配有五个触感按钮,可以快速进入方便的菜单。此外,带有LED的背光和加热图形显示器指示报警或关机状态。The Murphy PowerView 380 features robust, multifunction displays for advanced monitoring of multiple electronic engines.It’s capable of monitoring multiple engines and machine parameters on an easy-to-read 3.8-inch (97mm) QVGA monochrome LCD. The display is capable of handling sophisticated engine diagnostics as well as basic engine alarm/shutdown. Customize the PV380 display using the PowerVision Configuration Studio?, an intuitive tool designed to make customization simple. Using the software tool, users can tailor basic graphics, designate screen layout and define custom parameters. The PV380 is equipped with five tactile push buttons to quickly access a convenient menu. In addition, a backlit and heated graphic display with LEDs indicate alarm or shutdown status.

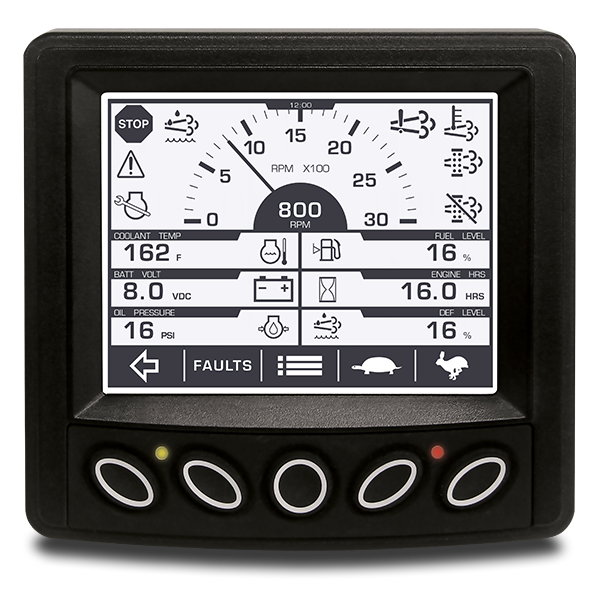

Murphy PowerView 380 Display 3.8-inch (97mm) QVGA monochrome LCD



The display provides an out-of-the-box solution for your system. The PV380 can easily be programmed on site with its intuitive screens and sturdy push buttons.

Tier 4 / Euro Stage IV Ready.

Technical Specifications

- Display: 3.8” (97 mm) QVGA (320 x 240 pixels); monochrome transflective LCD with white LED backlight, heater and real-time clock

- Viewing Angle: ± 55° horizontally; + 45°/ - 60° vertically

- Keys: 5 tactile pushbuttons

- Alarms: Red and amber warning LEDs; Set point triggered output for external piezo buzzer or shut-down relay

- Inputs: (4) resistive analog; (3) analog: 0-5V, 4-20mA analog or digital; (1) frequency 2-10,000 Hz, 3.6-120 VAC

- Outputs: (2) 500 mA; switched low-side

- Communications: (1) CAN 2.0 B; J1939 protocols; proprietary messaging; (1) RS-485 serial

- Connectors: Deutsch DT series 6 pin and 12 pin

- Languages: English



Environmental Specifications

- Voltage: 6-36 VDC; reverse polarity protected

- Operating Temperature: - 40°C to 85°C (- 40° to 185°F)

- Storage Temperature: - 40°C to 85°C (- 40° to 185°F)

- Sealing: IP 66 and 67

- Vibration & Shock: 7.86g random vibe (5 - 2,000Hz) and ± 50g shock in 3 axis

- EMC / EMI:
2004/108/EC and 2006/95/EC directives
EN61000-6-4:2001 (emission)
EN61000-6-2:2001 (immunity)
EN 50121-3-2 and EN 12895

- SAE: SAE J1113/2, 4, 11, 12, 21, 24, 26 and 41

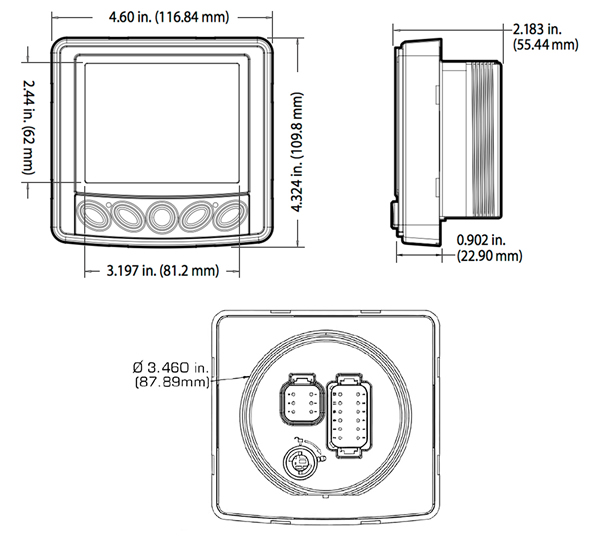

Dimensional Drawings

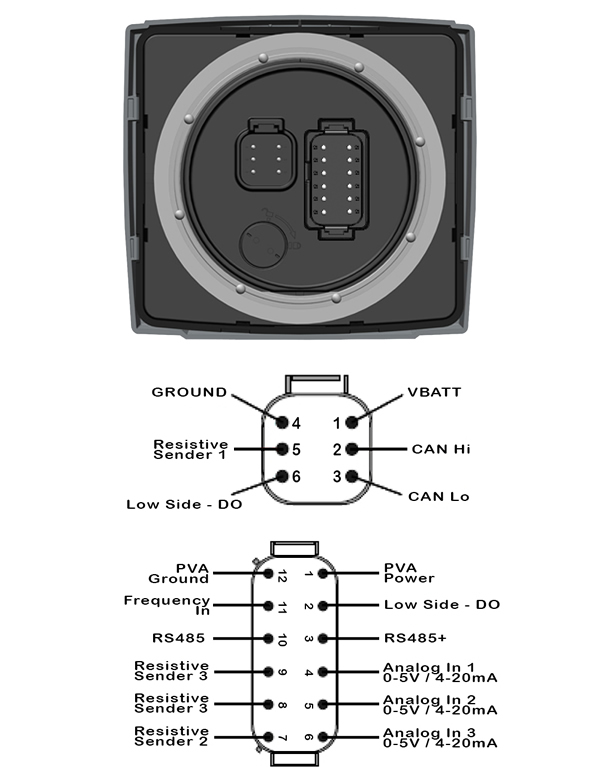

Pinout Configuration

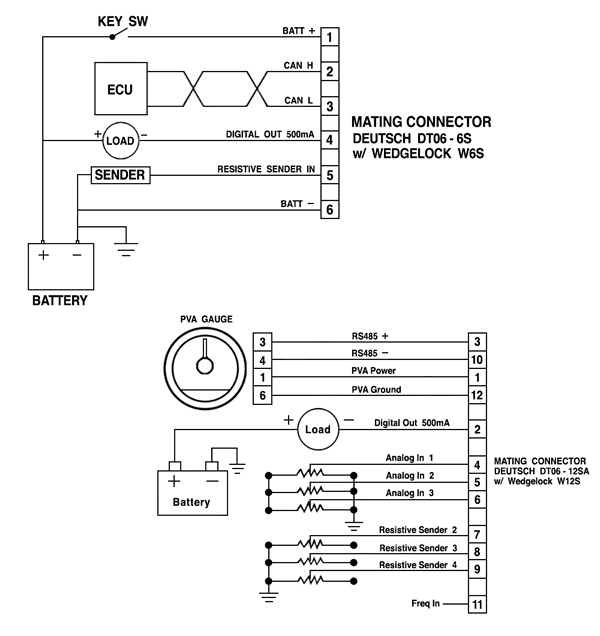

Wiring Diagram

How To Order





为电控发动机和机械发动机专业打造的多功能可编程显示器
适用于机械式及电控式发动机
易于使用的配置软件
兼容四阶段/欧四排放标准
可设置报警和停机控制
支持CNA J1939通讯协议
支持多种语言





PV300系列显示器以性能稳定的多功能显示为特色,为电控发动机和机械发动机提供全方位的监控。 PV300系列有PV350和PV380两款显示器,能够将监控到的各种发动机和其他机器参数显示于易于读取的3.8寸QVGA的黑白液晶显示屏上。该显示器不但能处理复杂的发动机诊断,同时还能实现基本的发动机报警及停机控制。


用户可使用摩菲的专业编程软件Power Vision Configuration Studio为PV300系列显示器进行个性化设计,包括显示图像,个性化的显示布局,和自定义的各种参数。


PV300系列显示器的技术规格请详见背面的规格描述。

型号

通讯协议

输入

输出

连接头

认证

PV350

2个CAN 2.08通迅接口;
第二个CAN口可提供NMEA2000使用
支持J1939和NMEA 2000协议

1路阻抗信号输入

1路对地开关量输出,500mA

德尔弛DT系列6针连接器M12(5座)

CE,E-Mark认证
ABS认证(可选)

PV380

1个CAN 2.08通讯接口;
支持J1939通讯协议
1路RS485串行通讯口

4路阻抗信号输入
3路O-5V模拟量输入(可设置成开关量输入)
1路频率信号输入2-10000Hz,3.6-120VAC

1路对地开关量输出,500mA
1路5V电压源(250mA)

德尔弛DT系列6针和12针连接器

CE,E-Mark认证



技术规格

·显示屏幕:3.8英寸/97mm,QVGA,320×240像素;黑白半透反射式液晶显示屏,带LED背光灯及内置加热器
·可视角度;水平可视±55°,垂直可视+45°/-60°
·按键:5个接触式按键
·报警:黄色LED代表一般故障报警,红色LED代表停机故障报警;通过设置报警点触发
输出,可外接蜂鸣器或停车继电器。
·平均故障间隔时间:50000小时


环境规格

·工作电压:6-36VDC,极性反接保护
·工作温度:-40~85℃(-40-~185°F)
·存储温度:-40~85℃(-40~185°F)
·防护等级:IP66和67
·抗震和抗冲击:任意震动,7.86Grms(5~2000Hz);±50G冲击(3轴)
·电磁兼容和抗电磁干扰:符合2004/108/EC和2006/95/EC directives
EN6 1000-6-4:2001(辐射)
EN6 1000-6-2:2001(干扰)
EN 501121-3-2和EN 12895
·SAE J1113/2, 4, 11, 12, 21, 24, 26, 41



Effective July 1, 2019, Enovation Controls is discontinuing the production of the PV380-R1. In this instance, Enovation Controls has an alternative which provides similar functionality to the discontinued item. The PV380-R2 (ref table below) provides the same form and fit with additional memory and processor speed and replaces the 5V output with a second 500mA low-side digital output.

We request you carefully review this information and notify relevant stakeholders within your organization so plans for the transition to the alternative can be made. In addition, we urge you to work with your Enovation Controls sales representative to transition the PV380-R1 to the PV380-R2.

PV380-R1 PV380 – R2
Processor Arm Cortex M3
512KB Flash
80MHz
Arm Cortex M4
2MB Flash
168MHz
Inputs 0 – 5V (analog input) 0 – 5V / 4 – 20mA / Resistive /Digital (analog
input)
Outputs (1) 500mA low-side digital output
(1) 5V (70mA) digital output
(2) 500mA low-side digital output
RTC N/A RTC Available

To best serve you, all inquiries related to product discontinuation should be directed through your normal Enovation Controls sales channels or by contacting our Inside Sales team at 918-317-4100.

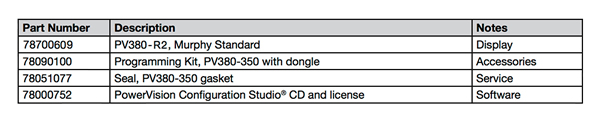

- 如何订货

Part Number Model/Description Notes
Part Number Model/Description Notes
78700609 PV380-R2, Murphy Standard Display
78700641 PV380-R2-MECH, Mechanical Configuration Display
78000752 PowerVision Configuration Studio ? CD and license Software
78051077 Seal, PV380-350 gasket Service
78001104 Connector Kit, PV380, 12 and 6 position connector Accessories
78001060 12 position, one foot whip harness Accessories
78090100 Programming Kit, PV380-350 with dongle Accessories
