Murphy TSB温度开关
Direct mount temperature switch

MURPHY TSB开关是一种直接安装的温度感应开关,它有一个限位触点,可用于启动警报、启动指示灯或关闭设备。这台仪器的结构和我们久经考验的开关柜一样吗?一个精密加工的黄铜安装板和端口捕获一个高品质的冲压铍铜隔膜。单刀双掷(SPDT)速动开关直接从隔膜上操作,实现快速和正开关。触发点是工厂根据您的规格预设的。外壳采用防风雨密封,以防止湿气、灰尘等进入。玻璃填充尼龙接线板与快速螺钉接线端子连接,使TSB开关在工业发动机应用中具有真正的优势。当不需要读数时,TSB是理想的,但温度对操作效率至关重要。用于一般用途的非机密区域。应用领域包括:发动机冷却剂、压缩机、发动机润滑、移动设备、发电机、灌溉系统、油田系统、建筑设备、船用发动机和电动机。

MURPHY Direct Mount Temperature Switch Model TSB



TSB switch is a direct-mount switch for temperature sensing.It has one limit contact that can be used to activate an alarm, actuate indicator lights or shut down equipment. The construction of this instrument is the same as our time-proven Swichgage?. A precision machined brass mounting plate and port captures a high quality stamped beryllium copper diaphragm. The single-pole, double-throw (SPDT) snap-switch is operated directly from the diaphragm, for quick acting and positive switching. Trip point is factory preset according to your specifications. Housing is weather sealed to prevent entry of moisture, dust, etc. A glass-filled nylon terminal block with quick-screw terminal connections gives the TSB switch a real advantage in industrial engine applications. The TSB is ideal when reading is not desired but temperature is critical to operational efficiency. Intended for use in general purpose non-classified areas. Applications include: engine coolant, compressors, engine lubrication, mobile equipment, generators, irrigation systems, oil field systems, construction equipment, marine engines and electric motors.

规格参数:

TSB型直接安装式温度开关
-结构与SWICHGAGE相似
-带微动开关
-适用于所有发动机可操作报警,停机:54-124℃
Housing: Plated steel.

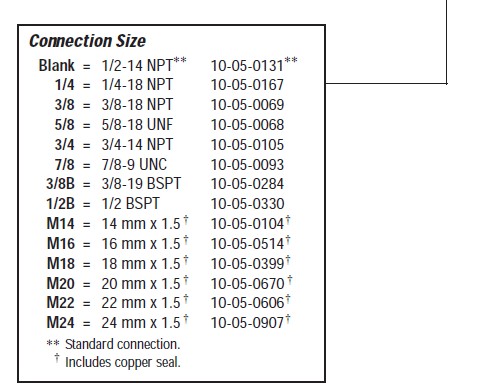

Connections: Popular NPT and metric (specify).
Diaphragm: Formed beryllium copper (heat treated).
Sensing Bulb: Copper.
Terminal Block: Three # 4-40

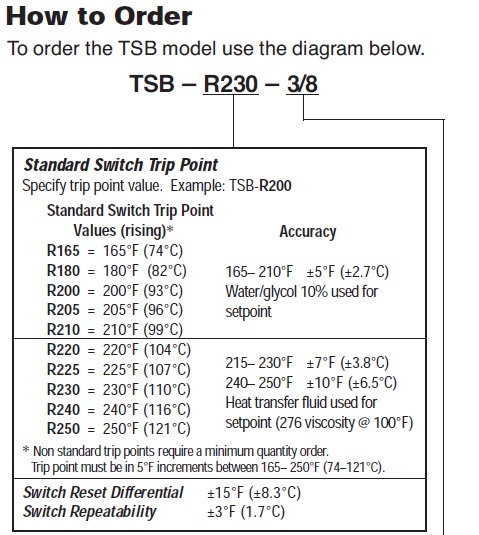

screws.Accuracy: See chart on page 2.
Contact Rating: SPDT 3 A @ 30 VDC inductive.
Maximum Temperature: 325°F (163°C).
Factory Trip Point Setting: 210°F (99°C) Rising.
Contact: Operates on rising temperature only.
Shipping Weight: 10 oz (0.31 kg).
Shipping Dimensions: 4-3/4 x 4-3/4 x 2-5/8 in. (121 x 121 x 67 mm).





产品应用:

Engine Coolant
Irrigation Systems
Compressors
Oil Field Systems
Engine Lubrication
Construction equipment
Mobile Equipment
Marine Engines
Generators
Electric Motors

Features

Fits most engine applications
SPDT snap-switch
Activates indicator lights, alarms or shut down equipment

Time-proven Swichgage construction
Easy wiring terminal block
Steel housing specially coated to resist corrosion
Trip point is factory preset to your specifications (minimum quantities apply)

TSB-R205F/96C-1/2 (10705370) Direct Mount Temperature Switch

TSB-R210F/99C-1/2 (10703837) Direct Mount Temperature Switch TSB-R220F/104C-1/2 (10704195) Direct Mount Temperature Switch

TSB-R205F/96C-1/2 (10705370) Direct Mount Temperature Switch
TSB-R210F/99C-1/2 (10703837) Direct Mount Temperature Switch
TSB-R220F/104C-1/2 (10704195) Direct Mount Temperature Switch
TSB-R205F/96C-1/2 (10705370) Direct Mount Temperature Switch

The TSB-R205F/96C-1/2 is a Direct Mount Temperature Switch with a switch trip point on Rising at 205°F/96°C. This model has a 1/2-14 NPT standard connection.

TSB-R210F/99C-1/2 (10703837) Direct Mount Temperature Switch

The TSB-R210F/99C-1/2 is a Direct Mount Temperature Switch with a switch trip point on Rising at 210°F/99°C. This model has a 1/2-14 NPT standard connection.

TSB-R220F/104C-1/2 (10704195) Direct Mount Temperature Switch

The TSB-R220F/104C-1/2 is a Direct Mount Temperature Switch with a switch trip point on Rising at 220°F/104°C. This model has a 1/2-14 NPT standard connection.

TSB-R250F/121C-1/2 (10705265) Direct Mount Temperature Switch

The TSB-R250F/121C-1/2 is a Direct Mount Temperature Switch with a switch trip point on Rising at 250°F/121°C. This model has a 1/2-14 NPT standard connection.

TSB-R200F/93C-1/2 (10705294)
