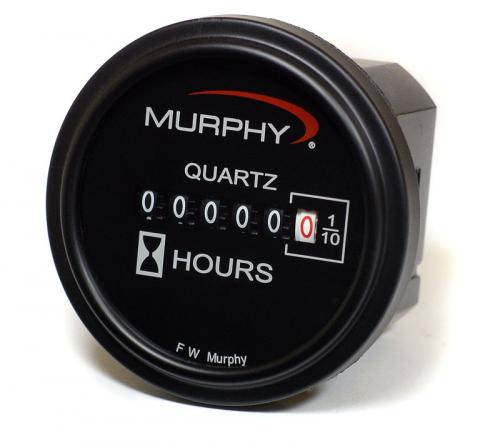

Murphy TM Series Hourmeters
电动机械小时表计时器

TM SERIES HOURMETERS
The TM Series hourmeters record the operating time of vehicles or powered equipment.

TM SERIES HOURMETERS是机电式的,有一个石英基时计数器,确保精度(在整个范围内优于±0.02%)。它们可以记录多达99999.9小时(对于TM612/624为9999.9小时),并包括自动循环至零小时功能。TM系列型号具有防震、防篡改、完全密封的工程塑料外壳。这些小巧轻便的计时器坚固耐用。它们是对需要低直流电源和可靠计时器的应用的答案。TM612/624型号包括一个三孔安装防震环,用于极端防震。这些计时器可用于任何需要记录工作时间的发动机。它只需要一个直流电源(参考规范)。They are electromechanical and have a quartz base time counter that ensures accuracy (better than ±0.02% over the entire range). They can record up to 99,999.9 hours (9,999.9 for TM612/624) and include an automatic recycle to zero hours feature. The TM Series models have a shock-proof and tamper-proof, totally sealed case made of an engineered plastic. These small, lightweight time meters are rugged and durable. They are the answer to applications requiring a low DC power and reliable hourmeter. The TM612/624 model includes a three-hole mounting shock ring for extreme shock protection. These hourmeters can be used on any engine where operating time needs to be recorded. All it requires is a DC power source (refer to Specifications).

TM Series hourmeters pdf catalog download

The TM Series models have a shockproof and tamperproof sealed case made of an engineered plastic. These small, lightweight time meters are rugged and durable. They are the answer to applications requiring a low DC power, reliable hourmeter. The TM612/624 model includes a 3-hole mounting shock ring for extreme-shock protection.

Features:

  • 2 in. (51 mm) diameter dial
  • Tamperproof and environmentally sealed
  • Mechanical counter – no battery needed to maintain elapsed time
  • Reversed polarity protected
  • Quartz-crystal time base for accurate long-term timekeeping
  • Powered by 12 to 24 VDC

Basic Models:

6-Digits Hourmeters
Model Bezel Type

TM4592 Bright Stainless Steel Bezel
TM4593 Black Stainless Steel Bezel
TM4594 SAE Bright Stainless Steel Bezel
TM4595 SAE Stainless Steel Black Bezel

5-Digits Hourmeter with Shock Ring Mounting
TM612/624 3-Hole Mount, Black Bezel



Power Input: 12 to 24 VDC

Power Consumption: Less than 0.03 W @ 12 VDC; 0.4 W @ 24 VDC.

Accuracy: ± 0.02% over entire range.

Temperature Range: -40°F to 185°F (-40°C to +85°C).

Dial (Face Plate): White numerals (over black background).

Time Scale:

  • TM4592-95 models: 6-digits 99,999.9 hours;
  • TM612/624 models: 5-digits 9,999.9 hours.
  • Automatic recycle to zero.

Vibration Resistance: Withstands 10 to 75 Hz @ 1 to 8 G's.

Case Material: Plastic.

Bezel: Stainless Steel.

Terminations: 1/4 in. (6 mm) male blade terminals.

TM4592/4595 Shipping Weight: 5 ozs. (140 g).

Shipping Dimensions: 3-1/8 x 3 x 3 in. (79 x 76 x 76 mm) approximately.

TM612/624 Shipping Weight: 8 ozs. (230 g).

TM612/624 Shipping Dimensions: 5 x 5 x 3-1/4 in. (127 x 127 x 83 mm) approx.

Basic Models

Model Bezel Type
Model Bezel Type
6-Digits Hourmeters
TM4592 Bright Stainless Steel Bezel
TM4593 Black Stainless Steel Bezel
TM4594 SAE Bright Stainless Steel Bezel
TM4595 SAE Stainless Steel Black Bezel
5-Digits Hourmeter with Shock Ring Mounting
TM612/624 3-Hole Mount, Black Bezel


Specifications

  • Power Input: 12 to 24 VDC
  • Power Consumption: Less than 0.03 W @ 12 VDC; 0.4 W @ 24 VDC.
  • Accuracy: ± 0.02% over entire range.
  • Temperature Range: -40°F to 185°F (-40°C to +85°C).
  • Dial (Face Plate): White numerals (over black background).
  • Time Scale:
    • TM4592-95 models: 6-digits 99,999.9 hours;
    • TM612/624 models: 5-digits 9,999.9 hours.
    • Automatic recycle to zero.
  • Vibration Resistance: Withstands 10 to 75 Hz @ 1 to 8 G's.
  • Case Material: Plastic.
  • Bezel: Stainless Steel.
  • Terminations: 1/4 in. (6 mm) male blade terminals.
  • TM4592/4595 Shipping Weight: 5 ozs. (140 g).
  • Shipping Dimensions: 3-1/8 x 3 x 3 in. (79 x 76 x 76 mm) approximately.
  • TM612/624 Shipping Weight: 8 ozs. (230 g).
  • TM612/624 Shipping Dimensions: 5 x 5 x 3-1/4 in. (127 x 127 x 83 mm) approx.

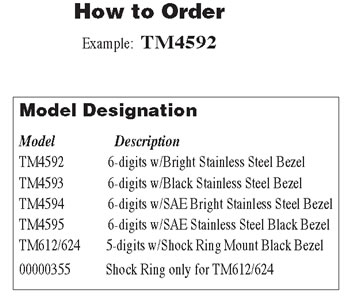

- MODEL & How to Order

6-Digits Hourmeters
Model Bezel Type
TM4592 Bright Stainless Steel Bezel
TM4593 Black Stainless Steel Bezel\
TM4594 SAE Bright Stainless Steel Bezel
TM4595 SAE Stainless Steel Black Bezel

5-Digits Hourmeter with Shock Ring Mounting
TM612/624 3-Hole Mount, Black Bezel
