SenderCAN TM 传感器信号转换器
MURPHY SenderCAN SAE J1939 Input and Output Module

产品介绍

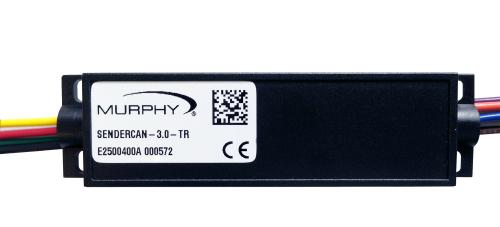

SenderCAN TM 是一款小巧轻便的 传感器信号 转换器。它用于把传感器阻抗输出或开关量转化为 SAEJ1939 CAN 总线数据。 SenderCAN 有 4 路输入和 2 路输出,我们可根据客户的要求对每路输入量和输出量进行设置。输入可设置为开路或闭路的开关量,或阻抗传感器输入。输入数据以适当的 PGN 地址、转换比例和传输速率被转换为 J1939 CAN 总线信息。基于接收 到的 CAN 总线 数据,输出量可设置并驱动仪表、指示灯、继电器及其它类型的控制元件。 SenderCAN 体积小巧轻便,可置于线束当中,也可通过四个安装孔固定于面板上。产品 以环氧树脂灌注封装,极大地增加了抗振能力和产品的防护等级。 SenderCAN is a compact, encapsulated input & output module for J1939 CANbus systems.SenderCAN allows the integration of analogue and digital measurement, control and indicating devices into modern CAN and ECU-based engines and systems. SenderCAN has up to four inputs and two outputs, each of which is factory configured to OEM requirements. Inputs can be set for use with resistive sender or switch signals, which are translated into J1939 CANbus messages with appropriate PGN address, data scaling and transmission rate. Outputs can be configured to drive gauges, lamps, relays or other control devices, based on received J1939 data.

MURPHY SenderCAN SAE J1939 Input and Output Module Data Sheet



•  与 SAE J1939 CAN 总线电控发动机兼容

•  可接受 4 个传感器模拟量或开关量输入

•  2 路仪表或控制输出

•  可根据客户要求定制输入阻抗曲线

•  PGN 地址和信号传输速率

•  小巧轻便 , 防护等级 IP65

产品规格Specifications :

Power Supply
Operating Voltage: 7 to 35 VDC

Current Consumption: 25 mA (typ.)

Input/Output
Input range: OEM/application specific, -2 to +35 VDC max

Output: OEM/application specific, 250mA max

CANbus: SAE J1939 protocol, optional 120 Ohm terminating resistor

Physical
Case material: High-impact ABS, epoxy filled

Case dimensions: 100 x 25 x 15 mm/4.0 x 1.0 x 0.6 in.

Weight: approx. 60g/0.13 lb

Operating temperature: –20°C to +85°C / –4°F to +185°F

Environmental sealing: IP65 case, exposed lead ends

Electromagnetic compatibility: 2004/108/EC



如何订购

Power supply

  • Operating voltage: 7 to 35 VDC
  • Current consumption: 25mA (typ.)

Input/Output

  • Input range: OEM/application specific, -2 to +35 VDC max
  • Output: OEM/application specific, 250mA max.
  • CANbus: SAE J1939 protocol, optional 120 Ohm terminating resistor

Physical

  • Case material: High impact ABS, epoxy filled
  • Weight: Approx 60 g / 0.13 lb
  • Operating temperature: -40oF to +185oF / (-40o C to +85o C)
  • Environmental Sealing: IP65 case, exposed lead ends
  • Electromagnetic compatibility: 2004/108/EC
  • Electrical:
    • J1113-11 pulses 1c, 2a, 3a/b and 5a
    • EN 61000-4-2 ESD
    • EN 61000-4-3 Radiated disturbance
    • EN 61000-4-4 Fast transients
    • EN 61000-4-5 High Energy transients
    • EN 61000-4-6 Conducted RF disturbance
    • CISPR 16-1-2, 4.3 Conducted emissions
    • CISPR 16-2-3 Radiated emissions
