Murphy > Temperature > SDB Series Direct Mount Temperature Swichgage
SDB温度表
SDB系列直感式温度表
SDB系列仪表通常用于监测气体压缩机的温度。发动机排气温度也可以监测,以表明重载或精益燃料混合物。SDB系列是一种直接安装温度装置。它提供了一个准确的直接读取表与可调限制开关,以激活警报和/或关闭。仪器前部的一个把手可以让你调整限制开关的跳转点。指针运动由双金属传感元件驱动。SDB系列最常见的用途是监测气体压缩机的温度。发动机的排气温度也可以被监控,以显示重载或精益燃料混合物,或使用SDB来帮助协调双引擎装置的载荷。
SDB系列直感式温度表
直装式SWITCHGAGE开关表SDB型
- 模拟表盘容易读取
- Bi-金属传感器
- 双范围：100-500oF（40-260℃）；200-1000oF（100-500℃）
- 表盘上有摄氏度数

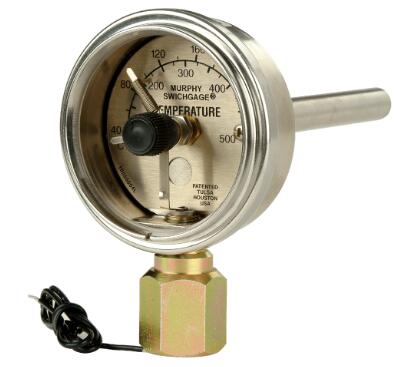

SDB Series gauges SDB Series Direct Mount Temperature Swichgage
SDB系列直感式温度表
Direct Mount Temperature Gauges with Adjustable Limit Switch
The SDB Series gauges are commonly used to monitor gas compressor temperatures. Engine exhaust temperature can also be monitored to indicate overloading or lean fuel mixtures.
- East-to-read dial
- Bi-metallic sensor
- Two temperature ranges
- Dials scaled in degrees Fahrenheit and Celsius
- CSA listed explosion-proof model available
The SDB Series is a direct-mounting temperature device. It provides an accurate direct-reading gauge with an adjustable limit switch to activate alarms and/or shutdown. A knob on the front of the instrument allows you to adjust the limit switch trip point. Pointer movement is actuated by a bi-metallic sensing element.
The most common use of the SDB Series is to monitor gas compressor temperatures. Engine exhaust temperature can also be monitored to indicate overloading or lean fuel mixtures, or use the SDB to help coordinate loads on twin-engine installations.
|
|
|
SDB500 (10701038): Direct Mounting Temperature Swichgage |
SDB501 (10701041): Direct Mounting Temperature Swichgage |
SDB Series 1/2 NPT Thermowell (10050025) |
Models SDB500, SDB501 and SDB500EX have a temperature range of 100 to 500°F (40 to 260°C). SDB500EX enclosure is explosion-proof and CSA listed for Class I, Group C and D hazardous locations.
The SDB1000 has a temperature range of 200 to 1000°F (100 to 500°C).
规格参数：
Temperature Ranges: SDB500, SDB500EX, and SDB501: 100 to 500°F (40 to 260°C).
SDB1000: 200 to 1000°F (100 to 500°C).
Sensing Bulb Material and Size: 304 stainless steel; 1/2 in. dia. x 4 in. (13 x 102 mm) insertion depth.
Maximum Bulb Pressure: 285 psi (1.97 MPa) [19.7 bar] at 625°F (329°C). NOTE: use of a thermowell is recommended.
Process Connection: 1/2 NPTF. 3/4 NPT adapter available.
Sensing Element: High torque bi-metal element in heliarc welded stainless steel bulb.
Contact Rating: SDB500, SDB501 and SDB1000: 2 A @ 30 VAC SDB500EX: 2 A @ 120 VAC
Limit Contact Adjustment: By knob through full range.
Maximum Unit Temperature: SDB500, SDB500EX, SDB501: 625°F(329°C). SDB1000: 1250°F (677°C).
Case Material: SDB501: Die-cast aluminum. SDB500, SDB1000, SDB500EX: Sand-cast aluminum.
SWICHGAGE? Accuracy: ±3% of full scale. NOTE: All models are calibrated for use with a thermowell.
Wire: 18 AWG (1.0 mm 2 ). See Dimensions for lengths, reverse side.
Dial: Black print on stainless steel. Dials are scaled in degrees Fahrenheit and Celsius.
Shipping Weight: SDB501: 1 lb. 4 oz. (0.57 kg). SDB500 and SDB1000: 2 lb. (1.0 kg). SDB500EX: 2 lb. 5 oz. (1.05 kg).
Shipping Dimensions: SDB501: 8-1/4 x 4-1/4 x 4-1/2 in. (210 x 108 x 114 mm). SDB500 and SDB1000: 8-1/4 x 4-1/4 x 4-1/2 in. (210 x 108 x 114 mm). SDB500EX: 9 x 5-1/2 x 6 in. (229 x 140 x 152 mm).
Specifications
Temperature Ranges:
SDB500, SDB500EX and SDB501: 100° to 500° F (40° to 260° C)
SDB1000: 200° to 1000° F (100° to 500° C)
Sensing Bulb Material and Size: 304 stainless steel;
1/2 in. dia. x 4 in. insertion depth (13 x 102 mm)
Maximum Bulb Pressure: 285 psi (1.97 MPa) [19.7 bar]
at 625° F (329° C) NOTE: Use of a thermowell is recommended.
Process Connection: 1/2 NPTF; 3/4 NPT adapter available
Sensing Element: High torque bi-metal element in heliarc
welded stainless steel bulb
Contact Rating: SDB500, SDB501, SDB1000:
2 A @ 30 VAC SDB500EX: 2 A @ 120 VAC
Limit Contact Adjustment: By knob through full range
Maximum Unit Temperature:
SDB500, SDB500EX, SDB501: 625° F (329° C)
SDB1000: 1250° F (677° C)
Case Material: SDB501: Die-cast aluminum;
SDB500, SDB1000, SDB500EX: Sand-cast aluminum
Accuracy: ± 3% of full scale;
NOTE: All models are calibrated for use with a thermowell. Specify
when a thermowell is NOT to be used when ordering.
Wire: 18 AWG (1.0 mm2). See Dimensions for lengths.
Dial: Black print on stainless steel.
Dials are scaled in degrees Fahrenheit and Celsius.
Approximate Shipping Weight:
SDB501: 1 lb. 4 oz. (0.57 kg)
SDB500 and SDB1000: 2 lb. (1.0 kg)
SDB500EX: 2 lb. 5 oz. (1.05 kg)
Approximate Shipping Dimensions:
SDB501: 8-1/4 x 4-1/4 x 4-1/2 in. (210 x 108 x 114 mm)
SDB500 and SDB1000: 8-1/4 x 4-1/4 x 4-1/2 in.
(210 x108 x114 mm)
SDB500EX: 9 x 5-1/2 x 6 in. (229 x 140 x 152 mm)
SDB500EX: When the temperature rises to the preset
trip point, the pointer engages an internal SPDT snapswitch
to close/open circuits.
Approximate Shipping Weight and Dimensions
Model Weight Dimension
SDB500 1 lb. 4 oz. (0.57 kg) 8-1/4 x 4-1/4 x 4-1/2 in. (210 x 108 x 114 mm)
SDB500EX 2 lb. 5 oz. (1.05 kg) 9 x 5-1/2 x 6 in. (229 x 140 x 152 mm)
SDB501 2 lb. (1.0 kg) 8-1/4 x 4-1/4 x 4-1/2 in. (210 x 108 x 114 mm)
SDB1000 2 lb. (1.0 kg) 8-1/4 x 4-1/4 x 4-1/2 in. (210 x108 x114 mm)
Optional Thermowells
Murphy offers thermowells (separable sockets) to facilitate maintenance of a temperature Swichgage instrument and to protect the temperature sensing bulb from extreme amounts of sys- tem pressure. For system pressures exceeding 285 psi (1.97 MPa) [19.7 bar] at 625°F (329°C) an optional thermowell is recommended for use with the SDB series.
The thermowell protects the SDB bulb from system pressures up to 3000 psi (20.68 MPa) [206.8 bar] at 300°F (149°C). Two thermowell options are available: 1/2 NPT and 3/4 NPT. Thermowells can be ordered with the SDB Series Swichgage instrument or ordered separately.
- Installation of Direct Mount Temperature Gage
with Adjustable Limit Switch
SDB Series (For Gas Compressor Cylinder Discharge Temperatures)
|
