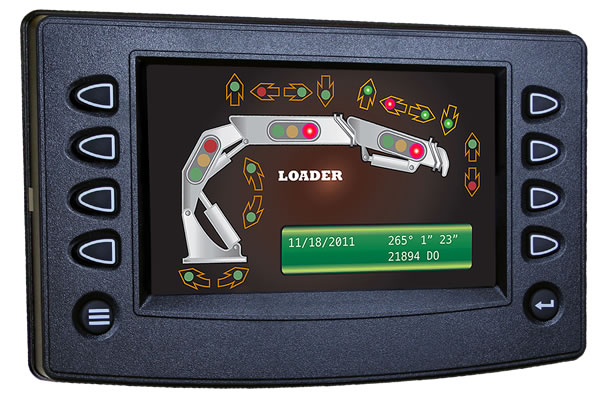

Murphy PV780 7寸全彩色液晶显示屏
Murphy PV780摩菲总线编程器



Murphy PV780采用了7寸全彩色液晶显示屏。的液晶粘贴技术使PV780在阳光直射下清晰可视,其效果在同类产品。PV780独特的显示屏及其整体久经耐用的设计使其成为各种应用环境中理想的解决方案。基于CAN总线技术的多功能彩色显示器,高科技液晶粘贴技术,在阳光直射下清晰可视。为OEM提供显示及控制的编程软件。恶劣环境下经久耐用。兼容欧四排放标准。支持多种语言 .




PowerView™ 780 display PDF资料 | 中文PDF
PowerView Model PV780 Sales Bulletin (pdf)
PowerView Model PV780 Insert (pdf)
PowerView Model PV780 Installation Manual (pdf)
PowerView Model PV780 Operations Manual (pdf)

技术规格:

7/178mm 彩色透射式TFT LCD

分辨率: WVGA 800*480像素,16位色彩

屏幕比例:16:9

背光:LED 1000CD/M2(可使用40000)小时

处理器:Freescale IMX35,32bit.532MHZ

QNX实时操作系统

闪存:2GB

存储器:128 MB SRAM

USB:2.0 主机(全速)

SD存储卡:程序更新、电子地图、诊断数据存贮

实时时钟:供电的锂电池可在充电

工作电压:6-36VDC,极性反接和抛载保护

功耗:全背光10W,全背光及加热器(<-1022W

CAN通讯口:2CAN2.0规格的总线接口:支持J1939CAN Open协议

ISO11898-2快速传输,速率高达1Mbit/s

串口:RS4851MOBUS/从站接口,可驱动PVA系列仪表

视频输入(可选);3路,支持NTSC/PAL制式

连接器:2AMP SEAL系列23

按键:10个接触式按键

输入:3O-5VDC模拟量或阻抗信号输入,1路频率信号输入(2-10KHz,5

开关量输入(高电平有效)

输出:1路对地开关量输出,500Ma,2路频率输出

PowerVision Configuration Studio
supports the following PowerView, HelmView displays and PowerCore controllers:
PV350/PV380; PV450/HV450; PV480; PV780/HV780



环境规格:

工作温度:-40-85

存储温度:-40-85

防护等级:前盖IP66.后盖IP67

电磁兼容:符合SAEJ1113

电磁干扰:符合SAEJ1113

抗震性:任意振动,7.86Grms(5-200DHz)3

抗冲击:正负50G,3



Murphy PowerView 780 display is a full-featured, configurable display that shows integrated engine, transmission and diagnostic information in an easy-to-read operator interface. Equipment functionality can be further integrated through the available I/O and controlled via the CAN bus.

The PV780 features a full-color, 7-inch bonded LCD for brighter, smoother graphics and best-in-class sunlight readability. The rugged design makes this display a great solution for extreme environments.

The PV780 display is compatible with PowerVision Configuration Studio? which allows users to edit CAN parameters, add OEM branding and create custom equipment screens for a unique and sophisticated user interface.

Features include:

CAN-based display with rich, full-color graphics
Compatible with both mechanical and electronicengines
Rugged design for extreme environments
Multiple languages

  • Computing
    • Processor: Freescale? i.MX357, 32 bit, 532 MHz, ARM11 core
    • Operating System: QNX ? Realtime Operating System
    • Storage: 2 GB flash memory
    • RAM: 128 Mbytes SRAM
  • Display
    • Screen Size: 7 inches (178 mm)
    • Type: Bonded color transmissive TFT LCD, 16-bit color
    • Resolution: 800 x 480 pixels @ 60 Hz (WVGA)
    • Contrast Ratio: 400:1
    • Brightness: 1000 cd/m 2 (LED, 40,000 hr. minimum)
    • Surface: print/glare-free glass
    • Viewing Angle: ±65 ° horizontal, +55 ° /-65 ° vertical
    • Orientation: Landscape or portrait
    • Touch Panel (optional): Projected capacitive (PCAP)
  • Hardware
    • Keypad: 10 tactile configurable soft keys with white LED backlight
    • Real time clock: with Li-ion rechargeable battery backup
    • Connectors: 2 AMPSEAL 23 Pin (AMP 770680-1 and AMP 770680-4)
    • Video Inputs: 3 NTSC/PAL (single channel viewable)
    • Dimensions: 8.37 x 6.0 in. (212.5 x 152.3 mm) landscape
    • Unit Depth: 3.57 in. (90.8 mm)
    • Case Material: PC/ABS, ISO 3795 (SAE J369, FMVSS 302) rated
    • Mounting Options: Front mount, back mount or RAM mount
  • Communication
    • CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
    • Serial: RS-485 serial (Modbus: master/slave or PVA gauge)
    • USB: (1) USB 2.0 host (full speed)
  • Electrical
    • Operating Voltage: 6-36 VDC, reverse polarity protected
    • Outputs:
      • (1) 500mA switched low-side
      • (1) Frequency Out (2Hz - 3 kHz, Vbat rms square wave) for tach
    • Inputs:
      • (3) Analog 0-5VDC, 4-20 mA, or resistive, 10-bit resolution
      • (5) Discrete Digital, Active High
      • (1) Frequency In (2Hz - 10 kHz), 5Vpk-pk min, 120Vpk-pk max
  • Environment
    • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
    • Storage Temperature: -40° F to +185°F (-40°C to +85°C)
    • Protection: IP66 and 67, front and back.
    • Vibration: Random vibration, 7.86 Grms (5-2000 Hz), 3 axes
    • Shock: ±50G in 3 axes
    • Electrical: J1113-2, -4, -11, -13, -21, -26 and -41
    • MC/EMI:
      • 2004/108/EC and 2006/95/EC directives
      • EN 61000-4-3 (radiated EMF immunity radiated)
      • EN 61000-4-4 (EFT immunity power and I/O lines)
      • EN 61000-4-5 (surges power lines)
      • EN 61000-4-6 (RF immunity)
      • EN 61000-4-8 (magnetic field immunity)
      • EN 60945 (ESD)
      • EN 60945 (conducted emissions)
      • HYBRID EN 60945 CISPR 11 CLASS B (radiated emissions)
    • Certifications:
      • CE
      • E-mark capable



PowerVision Configuration Studio
supports the following PowerView, HelmView displays and PowerCore controllers:
PV350/PV380; PV450/HV450; PV480; PV780/HV780

DISPLAYS

PowerView 1200
12.3" color engine and diagnostic display

PowerView 1100
10.6" color engine and diagnostic display with infotainment

PowerView 780B
7" fully-configurable diagnostic display with video, Bluetooth and Wi-Fi

PV780 PowerView 780
7" fully-configurable diagnostic display with video.

PowerView 485
4.3" color engine and diagnostic display

PV450 PowerView 450
4.3" fully-configurable equipment and engine diagnostic display
PowerView 380 PowerView 380
3.8" configurable, multifunction displays for electronic and mechanical engines

PowerView 350
3.8" configurable, multifunction displays for electronic and mechanical engines

PowerView 101
2.8" electronic engine monitor and diagnostic display
PV25
PowerView 25
Engine and diagnostic display in an economical and compact package.

HelmView 450
4.3 inch color display for Commercial Marine applications

- How to order 如何订货



Part Number Model/Description Notes
Part Number Model/Description Notes
78700560 PV780 Display, Murphy Standard Configuration Displays
78700564 PV780 Touch Display (no configuration; bootloader only) Displays
78090098 Programming Kit, PV780 Accessories
78051181 Cover, PV780 Accessories
78001053 Bracket Kit (screws included) Accessories
78001055 Harness, Gray Connector, USB Accessories
78001056 Harness, Gray Connector, Flying Leads Accessories
78001057 Harness, Black Connector, Flying Leads Accessories
78001017 Harness, Black Connector, Development Accessories
78001018 Harness, Gray Connector, Development Accessories
78090069 Harness, PV750 Conversion, Power/CAN Service
78051180 Bezel, PV780 Service
