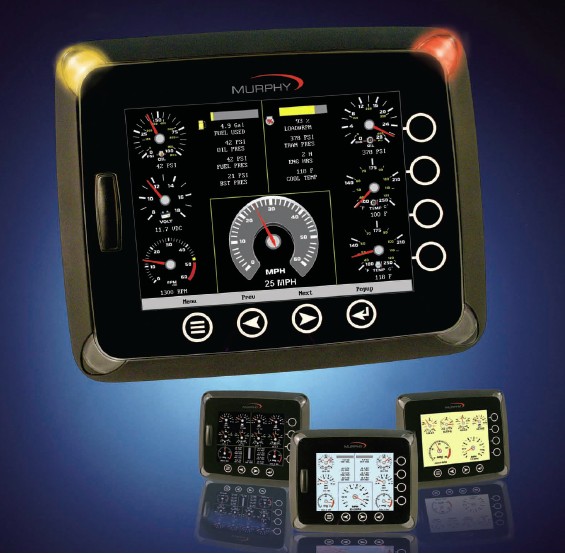

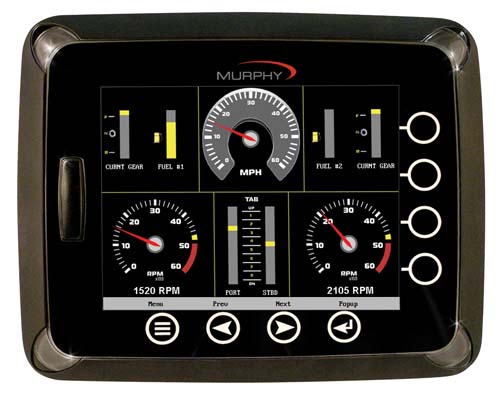

摩菲MURPHY公司最初的PowerView控制器在解读发动机运行状况和诊断代码方面为 。现在，新一代产品PowerView1000横空出世。PowerView1000控制器采用了高分辨率，全彩色液晶显示屏。可以更形象地显示更多的发动机参数，更多的诊断信息等实时发动机信息。PowerView1000控制器适用于各种天然气和菜油发动机。你所做的只是插上CAN总线接头，启动即可。更多的功能，更少的麻烦，这就是完全可以依靠的PowerView1000。
PowerView1000控制器完全整合：
多种协议：J1939和NMEA
发动机运行信息及故障信息
传动系统及液压系统信息
历史数据存储及显示
服务提醒
定制屏幕显示
Specifications
Display: 6.4” Color transmissive TFT LCD
Resolution: VGA, 640 x 480 pixels
Orientation: Landscape
Backlighting: CCFL, 350 cd/mC (50,000 h lifetime)
Flash Memory: 16 MB
RAM: 32 Mbytes SDRAM
EEPROM: 32k bytes
Operating Voltage: 6-32 VDC, protected against reverse polarity and load-dump
Power Consumption: 10w full backlight; 22w full backlight with heater (< -10° C)
CAN: 4 CAN ports according to CAN specification 2.0B; one port isolated according to NMEA 2000 (GPS)
RS-485: 2 MODBUS Master ports at 38.4 Kbaud
Protocols: J1939, NMEA 2000 (GPS), proprietary
Connection: 4 Deutsch DT 6-pin connectors
Keyboard: 8 capacitive touch keys
Trending: record and report data; download to a standard SD storage card.
PowerView 1000
Mechanical
Mounting Variants: Panel mounting – mounts with six screws into the lip of
the bezel; Gimble mounting – uses an articulating gimble
Dimensions (w x h): 8.74” x 7.23” (landscape);
Panel mount depth – 0.605”; Unit depth – 3.265”
Cutout for panel mounting (w x h): 7.15” x 5.65” (landscape)
Case material: High impact acrylic front case; Polycarbonate back case
Environmental
Operating Temperature: -40° C to +85° C
Storage Temperature: -40° C to +85° C
Protection: IP68
Emissions: IEC 60945, 95/54/EC
Immunity: SAE J1113, ISO 11452
Vibration: Random vibration, 7.86Grms(5-2000 Hz), 3 axis
Shock: +/50G in 3 axis
|
