Murphy OPLH, OPLHG, OPLHFG, OPLHGE, OPLHC, OPLHCE, OPLHFC, OPLHBP, OPLHBPE: 1/4 NPT (male)OPLHACS,OPLHACES, OPLHAGS, OPLHAGES, OPLHABPS, OPLHABPES, OPLHAFCS, OPLHAFGS Series Lube Level Maintainer液位维持计

Murphy墨菲OPL 系列 SWICHGAGE面板压力开关

OPL 系列压力 Swichgage 仪表是带有可调低限和高限开关的组合压力指示计。

限位开关可以直接连接到电动先导电路,以操作警报、关闭或发动机和电动机的启动/停止。大多数版本都提供表面安装或面板安装外壳。所有版本均配备 4-1/2 英寸(114 毫米)刻度盘,便于查看。可从 Swichgage 仪器的正面访问可调限位开关。限位触点具有自清洁运动,以增强电气连续性。

产品特性:

OPLHC和OPLHACS系列箱和湿槽液位SWICHGAGE开关表
-液位可从4.5英寸(114mm)窗口读出模拟数字
-有高低位限制触头
OPLHACBPS
带内置闭式继电器用于启动/停机操作外,与OPLHAC相似



Murphy OPLHC/OPLHACS Series Level Swichgage instruments
PDF Catalog资料下载



规格

外壳: 压铸铝; 防风雨。

触点: 有关触点额定值,请参见电气第 3 页。

表盘: 4-1/2 英寸(114 毫米)白底黑字,双刻度 psi /kPa。 其他拨号配置可用。 咨询工厂。

量具精度: 刻度的第一和最后四分之一为±2%,中间为±1%。

齿轮机芯: 302 和 304 不锈钢。

镜片: 光学透明聚碳酸酯。

指针: 具有指针校准中心的高可见度。

过程连接: 提供 1/4 NPT 和 1/2 NPT。 参见表 B,第 5 页。

传感元件: 选择青铜或 316 不锈钢波登管。




Murphy OPLHC/OPLHACS Series Level Swichgage instruments are combination level indicating gages with adjustable low and high limit switches. Limit switches can be wired directly to electric pilot circuits to operate alarms, shutdown or start/stop pumps to maintain predetermined levels.

Surface mount or panel mount enclosure is available for both model series. All models feature a 4-1/2 in. (114 mm) dial for easy viewing. Adjustable limit switches are accessible from front of the Swichgage instrument. Specialized models are available for specific applications involving engines or electric motors.

规格参数:

Eliminates under/overfill due to “human error”
Combination Level Indicating Gage and Critical Level Limit Switch
High and Low Level Limit Contacts Are Visible and Adjustable
Designed to Start and Stop Pumps to Maintain Specific Levels
Indication-only Murphygage? Instruments Available
Latching Control Relay Versions Available


Murphy OPLHC/OPLHACS Series Level Swichgage instruments are combination level indicating gages with adjustable low and high limit switches. Limit switches can be wired directly to electric pilot circuits to operate alarms, shutdown or start/stop pumps to maintain predetermined levels.

Surface mount or panel mount enclosure is available for both model series. All models feature a 4-1/2 in. (114 mm) dial for easy viewing. Adjustable limit switches are accessible from front of the Swichgage instrument. Specialized models are available for specific applications involving engines or electric motors. OPLHC/OPLHACS Series Swichgage instruments include 2-adjustable, pilot duty, pointer type contacts. Contacts have self-cleaning motion to enhance electrical continuity. Models are available with a rugged bourdon-tube or 316 stainless steel bellows sensing element for A “freeze-proof” sensor of 316 stainless steel with Buna-N rolling diaphragm, is available. The “freeze-proof” sensor (OPLHAFP) inserts approx., 2 in. (52 mm) inside a tank.



OPLHBP/OPLHABPS

Internal latching control relays are available to provide ON/OFF automation for electric motor applications.
OPLHC and OPLHACS series are avail-able in indication only Murphygage models (OPLHAGS). See Page 2 to determine the model for your application.

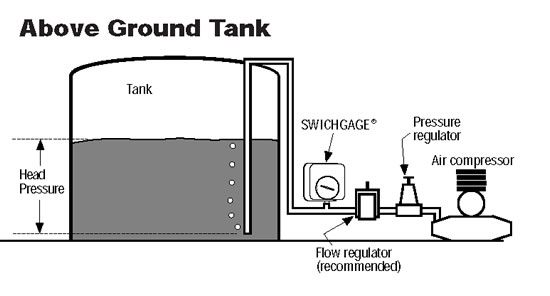

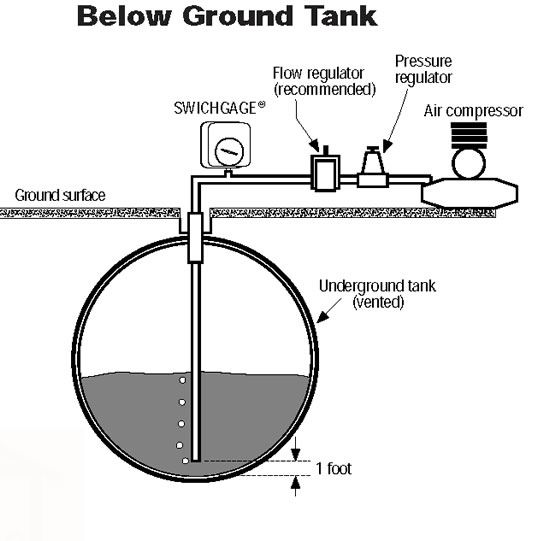

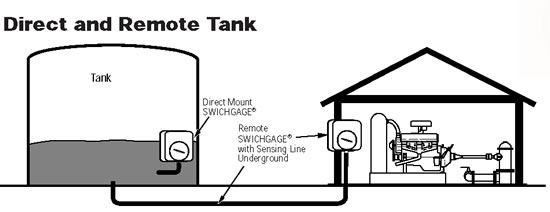

OPLH Series Lube Level Maintainer常见应用图:

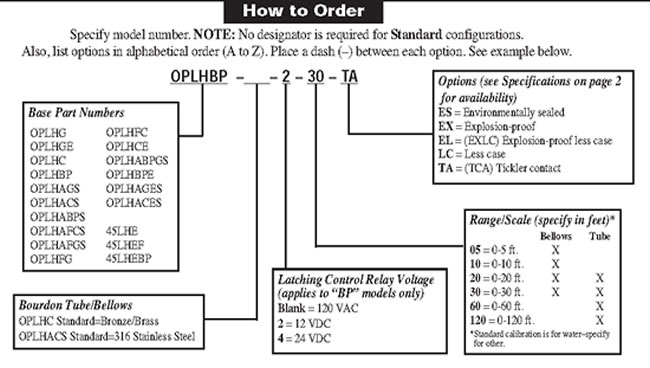

OPLH Series Lube Level Maintainer如何订购:
