MURPHY OPL Series Mechanical Pressure Gauges
MURPHY OPL series 4.5" Pressure Gauge and Swichgage
面板安装压力表

MURPHY OPL系列压力开关仪表是具有可调高低限位开关的组合式压力指示仪表。限位开关可以直接连接到电动导向电路,以操作警报、关闭或发动机和电动机的启动/停止。表面安装或面板安装外壳可用于大多数版本。所有版本均采用4-1/2英寸。(114毫米)表盘,便于查看。可调限位开关可从开关仪表的前部接近。限位触点具有自清洁运动,以增强电气连续性。

OPL Series 4-1/2 in. (114mm) Diameter Dial Pressure Gage and Swichgage Instruments



OPL series pressure Swichgage instruments are combination pressure indicating gages with adjustable low and high limit switches. Limit switches can be wired directly to electric pilot circuits to operate alarms, shutdown or the start/stop of engines and electric motors. Surface mount or panel mount enclosure is available for most versions. All versions feature a 4-1/2 in. (114 mm) dial for easy viewing. Adjustable limit switches are accessible from the front of the Swichgage instrument. Limit contacts have self-cleaning motion to enhance electrical continuity.

产品特性:

结合了显示表和临界限位开关。
高低限位可视可调。
高低限位控制警报和切断设备。
302不锈钢表壳。
4.5"表盘,白字黑底,双刻度显示。
限位开关可以直接连接到电气试验电路操作警报和/或关闭发动机和电动马达。
限位开关是可以从前面调试和调试处的自洁运动增强电气连续性。
Combination Indicating Gage and Critical Pressure Limit Switches
High and Low Pressure Limit Contacts Are Visible and Adjustable
Panel and Surface Mount Versions
Indicating-only Murphygage? Available
Latching Control Relay Versions Available



规格

外壳: 压铸铝; 防风雨。

触点: 有关触点额定值,请参见电气第 3 页。

表盘: 4-1/2 英寸(114 毫米)白底黑字,双刻度 psi /kPa。 其他拨号配置可用。 咨询工厂。

量具精度: 刻度的第一和最后四分之一为±2%,中间为±1%。

齿轮机芯: 302 和 304 不锈钢。

镜片: 光学透明聚碳酸酯。

指针: 具有指针校准中心的高可见度。

过程连接: 提供 1/4 NPT 和 1/2 NPT。 参见表 B,第 5 页。

传感元件: 选择青铜或 316 不锈钢波登管。

Other versions available (details on next page):

  • Gage only without contacts (Murphygage instrument);
  • Swichgage instrument with built-in latching relay for start-stop operations.

S pecifications

Case: Die cast aluminum; weatherproof.

Contacts: See Electrical page 3, for contact ratings.

Dial: 4-1/2 in. (114 mm) white on black, dual scaled psi /kPa. Other dial configurations available. Consult factory.

Gage Accuracy: ±2% for the first and last quarters of the scale, the middle half is ±1%.

Geared Movement: 302 and 304 stainless steel.

Lens: Optically clear polycarbonate.

Pointer: High visibility with a pointer calibration hub.

Process Connection: Available in 1/4 NPT and 1/2 NPT. See Table B, page 5.

Sensing Element: Select from bronze or 316 stainless steel bourdon tube.

OPLC, OPLCE and OPLG Dimensions

For more information about this product, you can download the related literature here:






MURPHY OPL series 4.5" Pressure Gauge and Swichgage
PDF Catalog技术资料下载



Base models:-

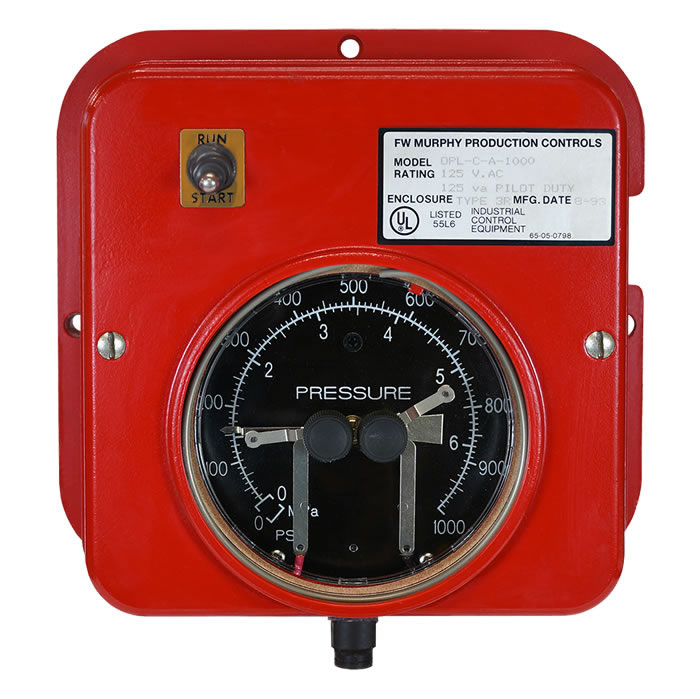

OPLC Surface mount aluminium case with Start/Run switch for low contact override. (Shown above right.)

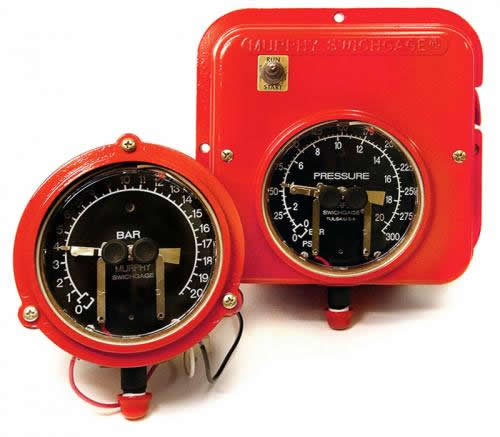

OPLFC Panel mount version. (Shown above centre.)
OPLFC-D OPLFC with dirty water diapragm. (Shown above left.)
OPLC-DPCO OPLC with dual Run/Start contacts for use with AT03069 throttle controller

Features:

  • Combination indicating gauge and critical pressure limit switches
  • 4.5 inch gauge face
  • High and low pressure limit contacts are visible and adjustable
  • Panel and surface mount versions
  • Indicating-only MURPHYGAGE? available
  • Latching control relay versions available



OPLC-A-100 (05700662): 4.5" Pressure Swichgage

OPLC-A-160 (05700678): 4.5" Pressure Swichgage
OPLC-A-200 (05700682): 4.5" Pressure Swichgage
OPLC-A-300 (05700688): 4.5" Pressure Swichgage

OPLC-A-400 (05700707): 4.5" Pressure Swichgage
OPLC-A-600 (05700712): 4.5" Pressure Swichgage
OPLC-A-1000 (05700663): 4.5" Pressure Swichgage
OPLFC-A-100 (05701008): 4.5" Pressure Swichgage

OPLFC-A-200 (05701038): 4.5" Pressure Swichgage
OPLFC-A-300 (05701049) : 4.5" Pressure Swichgage
OPLFC-A-400 (05701086): 4.5" Pressure Swichgage

OPLFC-A-600 (05701093): 4.5" Pressure Swichgage
OPLFC-A-1000 (05701010): 4.5" Pressure Swichgage
OPLFC-A-1000-OS (05701017): 4.5" Pressure Swichgage
OPLFC-A-1000-OS (05701017): 4.5" Pressure Swichgage

OPLC Series Surface Mount Pressure Swichgage
OPLC-A-100 (05700662): 4.5" Pressure Swichgage
OPLC-A-160 (05700678): 4.5" Pressure Swichgage
OPLC-A-200 (05700682): 4.5" Pressure Swichgage
OPLC-A-300 (05700688): 4.5" Pressure Swichgage
OPLC-A-400 (05700707): 4.5" Pressure Swichgage
OPLC-A-600 (05700712): 4.5" Pressure Swichgage
OPLC-A-1000 (05700663): 4.5" Pressure Swichgage

OPLFC Series Panel Mount Pressure Swichgage
OPLFC-A-100 (05701008): 4.5" Pressure Swichgage
OPLFC-A-200 (05701038): 4.5" Pressure Swichgage
OPLFC-A-300 (05701049) : 4.5" Pressure Swichgage
OPLFC-A-400 (05701086): 4.5" Pressure Swichgage
OPLFC-A-600 (05701093): 4.5" Pressure Swichgage
OPLFC-A-1000 (05701010): 4.5" Pressure Swichgage
OPLFC-A-1000-OS (05701017): 4.5" Pressure Swichgage

OPLC Swichgage, surface mount, with low limit lockout switch
OPLCE Swichgage, panel mount square case
OPLFC Swichgage, panel mount

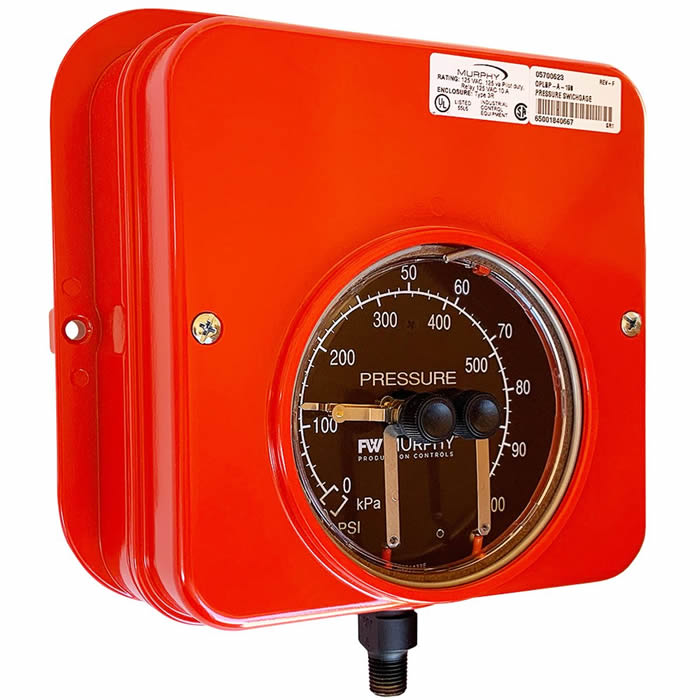

OPLBP* Swichgage, surface mount, with latching control relay
OPLBPE* Swichgage, panel mount square case, with latching control relay
OPLG Murphygage, surface mount
OPLFG Murphygage, panel mount



Murphy OPL Series Pressure Gauges

OPLC-A-100 (05700662) PRESSURE SWICHGAGE - 100 PSI (SURFACE MOUNT, BRONZE BOURDON)

OPLC-S-3000 (05700820) PRESSURE SWICHGAGE - 3000 PSI (SURFACE MOUNT, STAINLESS STEEL BOURDON)

OPLFC-S-1500 (05701223) PRESSURE SWICHGAGE - 1500 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLFC-S-400 (05701252) PRESSURE SWICHGAGE - 400 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLFC-A-100 (05701008) PRESSURE SWICHGAGE - 100 PSI (PANEL MOUNT, BRONZE BOURDON)

OPLFC-A-30V100 (05701063) PRESSURE SWICHGAGE - 30" VAC-100 PSI (PANEL MOUNT, BRZ. BT.)

OPLFC-A-15 (05701025) PRESSURE SWICHGAGE - 15 PSI (PANEL MOUNT, BRONZE BOURDON)

OPLFC-S-10000 (05701212) PRESSURE SWICHGAGE - 10000 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLFC-A-300 (05701049) PRESSURE SWICHGAGE - 300 PSI (PANEL MOUNT, BRONZE BOURDON)

OPLFC-S-300 (05701239) PRESSURE SWICHGAGE - 300 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLFC-S-100 (05701210) PRESSURE SWICHGAGE - 100 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLC-A-600 (05700712) PRESSURE SWICHGAGE - 600 PSI (SURFACE MOUNT, BRONZE BOURDON)

OPLC-A-400 (05700707) PRESSURE SWICHGAGE - 400 PSI (SURFACE MOUNT, BRONZE BOURDON)

OPLC-A-300 (05700688) PRESSURE SWICHGAGE - 300 PSI (SURFACE MOUNT, BRONZE BOURDON)

OPLFC-A-1000 (05701010) PRESSURE SWICHGAGE - 1000 PSI (PANEL MOUNT, BRONZE BOURDON)

OPLC-S-200 (05700809) PRESSURE SWICHGAGE - 200 PSI (SURFACE MOUNT, STAINLESS STEEL BOURDON)

OPLC-S-1500 (05700800) PRESSURE SWICHGAGE - 1500 PSI (SURFACE MOUNT, STAINLESS STEEL BOURDON)

OPLC-A-30 (05700687) PRESSURE SWICHGAGE - 30 PSI (SURFACE MOUNT, BRONZE BOURDON)

OPLC-A-30V100 (05700696) PRESSURE SWICHGAGE - 30" VAC-100 PSI (SURFACE MOUNT)

OPLC-A-160 (05700678) PRESSURE SWICHGAGE - 160 PSI (SURFACE MOUNT, BRONZE BOURDON)

OPLFC-S-10000-CC (05701213)PRESSURE SWICHGAGE - 10,000 PSI(PANEL MOUNT, STAINLESS, 120 VAC)

OPLFC-S-30V30 (05701248) PRESSURE SWICHGAGE - 30" VAC-30 PSI (PANEL MOUNT, STAINLESS STEEL BT.)

OPLFC-S-30V100 (05700274) PRESSURE SWICHGAGE - 30" VAC-100 PSI (PANEL MOUNT, STAINLESS STEEL BT.)

OPLFC-S-2000 (05701231) PRESSURE SWICHGAGE - 2000 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLC-S-600 (05700840) PRESSURE SWICHGAGE - 600 PSI (SURFACE MOUNT, STAINLESS STEEL BOURDON)

OPLC-A-30V30 (05700702) PRESSURE SWICHGAGE - 30" VAC-30 PSI (SURFACE MOUNT

OPLFC-A-160 (05701030) PRESSURE SWICHGAGE - 160 PSI (PANEL MOUNT, BRONZE BOURDON)

OPLC-A-200 (05700682) PRESSURE SWICHGAGE - 200 PSI (SURFACE MOUNT, BRONZE BOURDON)

OPLFC-S-600 (05701261) PRESSURE SWICHGAGE - 600 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLFC-S-30V15 (05701247)PRESSURE SWICHGAGE - 30" VAC-15 PSI (PANEL MOUNT, STAINLESS STEEL BT.)

OPLFC-A-30V30 (05701073)PRESSURE SWICHGAGE - 30" VAC-30 PSI (PANEL MOUNT, BRZ. BT.)

OPLFC-S-5000 (05701255)PRESSURE SWICHGAGE - 5000 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLFC-A-200 (05701038)PRESSURE SWICHGAGE - 200 PSI (PANEL MOUNT, BRONZE BOURDON)

OPLFC-S-1000 (05701211) PRESSURE SWICHGAGE - 1000 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLFC-S-200 (05701229) PRESSURE SWICHGAGE - 200 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLC-S-5000 (05700836) PRESSURE SWICHGAGE - 5000 PSI (SURFACE MOUNT, STAINLESS STEEL BOURDON)

OPLFC-A-30V (05701061) PRESSURE SWICHGAGE - 30" VAC-0 PSI (PANEL MOUNT, BRZ. BT.)

OPLFC-A-30 (05701048) PRESSURE SWICHGAGE - 30 PSI (PANEL MOUNT, BRONZE BOURDON)

OPLC-A-1000 (05700663) PRESSURE SWICHGAGE - 1000 PSI (SURFACE MOUNT, BRZ. BOURDON)

OPLFC-S-60 (05701259) PRESSURE SWICHGAGE - 60 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLFC-A-400 (05701086) PRESSURE SWICHGAGE - 400 PSI (PANEL MOUNT, BRONZE BOURDON)

OPLFC-S-3000 (05701240) PRESSURE SWICHGAGE - 3000 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLFC-S-160 (05701226) PRESSURE SWICHGAGE - 160 PSI (PANEL MOUNT, STAINLESS STEEL BOURDON)

OPLC-S-300 (05700819) PRESSURE SWICHGAGE - 300 PSI (SURFACE MOUNT, STAINLESS STEEL BOURDON)

OPLFC-A-600 (05701093) PRESSURE SWICHGAGE - 600 PSI (PANEL MOUNT, BRONZE BOURDON)

OPLC-S-2000 (05700810) PRESSURE SWICHGAGE - 2000 PSI (SURFACE MOUNT, STAINLESS STEEL BOURDON)

OPLFC-A-60 (05701092) PRESSURE SWICHGAGE - 60 PSI (PANEL MOUNT, BRONZE BOURDON)

OPLC-S-10000 (05700791) PRESSURE SWICHGAGE - 10000 PSI (SURFACE MOUNT, STAINLESS STEEL BOURDON)

OPLC-A-60 (05700711) PRESSURE SWICHGAGE - 60 PSI (SURFACE MOUNT, BRONZE BOURDON)

OPLC-S-1000 (05700790) PRESSURE SWICHGAGE - 1000 PSI (SURFACE MOUNT, STAINLESS STEEL BOURDON)

OPLC-S-100 (05700789) PRESSURE SWICHGAGE - 100 PSI (SURFACE MOUNT, STAINLESS STEEL BOURDON)
