Murph液位开关L150, EL150K1, EL150EX发动机液位计
Murphy Level Switches: Engine Liquid, Bilge & Tank Level

L150, EL150K1, EL150EX – The liquid level Swichgage



L150 和 EL150K1 系列发动机液位计
L150 and EL150 Series Level Swichgage

L150系列液位开关是液位计和低位开关的组合,其
包括:(1)带浮球的腔室
(2)带指针的指示盘
(3)低位触点。
当正确安装和维护时,浮子带动指针,该指针在正常操作期间指示液位。如果液位下降到设定下限点时关闭开关电路。


Murph液位开关L150, EL150K1, EL150EX发动机液位计
Murphy Level Switches: Engine Liquid, Bilge & Tank Level

产品应用:

L150/EL150K1主要用于发动机冷却系统,调压井或膨胀水箱,冷凝器散热器或汽相系统,加压或大气系统。还可用于监测润滑油,液压油或柴油储油罐,并在预设的低油位时激活警报和/或关闭设备。 L150/EL150K1用于低压系统,其最大L150 、EL150K1 及EL150EX 液位开关把液位显示仪表和低位开关结合在了一起。每个产品包含了: 浮子、指针、表盘及低液位触点。产品正常使用时, 浮子带动指针, 显示液位的同时, 在液位降至低位设置点时, 闭合开关电路。The L150 Series Level Swichgage instrument is a combination liquid level gauge and low limit switch; each unit includes a chamber with pivotal float, an indicating dial with pointer and a low level contact.


产品应用本液位开关系列产品主要应用在常压或加压的发动机冷却系统, 调压室或蒸发器, 冷凝器/ 冷却箱或水汽系统等。该产品也可被用于监控润滑油、液压油位或柴油机燃油罐和其他需要低位报警或停机的系统。When properly installed and maintained, the float operates the pointer which, in turn, both indicates level during normal operation, and closes a switching circuit if the level falls to the low-limit set point.

L150 (15700135): Liquid Level Swichgage

L150-BC (15700144): Liquid Level Swichgage EL150K1 (15700116): Liquid Level Swichgage
EL150EX (15700121): Liquid Level Swichgage

BLSK1 (15700193): Bilge Level Switch System DF755 (15700001): Hydrostatic Head Level Switch

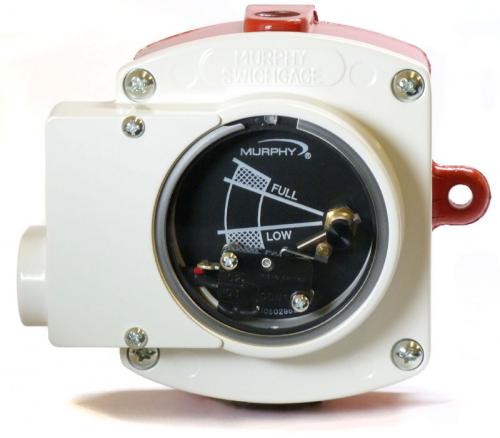

EL150EX
EL150K1 标准电气图
警告:此接线图只做解析,不能作为安装说明。

散热器配件
物料编码型号及描述备注
15000138 除外壳和主体外的所有部件
15000101 外壳/主体组件L150 修理工具包
15000139 除外壳和主体外的所有部件
15000101 外壳/主体组件EL150K1 修理工具包
15000100 镜头/开关组件
15000110 盖子和浮子组件
15000108 盖子组件EL150EX 修理工具包
15000109 开关/端子组件
15000107 散热器配件(PS),薄壁,1/4英寸(6毫米)管配件
配件
15010202 散热器配件(PS-D),用于柴油或油,厚壁(至1/4英寸[6毫米]),
接受1/2英寸(13毫米)内径软管或1/4英寸(6毫米)外径管道
15010167 散热器配件(PS带刺),薄壁,1/4英寸(6毫米)管道或软管
15700854 遮阳板套件, EL150K1 (旋钮护罩)
规格
最高温度: 250° F (121° C)
最大工作压强:25 PSI (172 kPa)
外壳:压铸铝,聚氨酯涂层;
大致尺寸:4-1/2 x 4-3/4 x 2-3/4in.
(114 x 121 x 70 mm)
安装孔: 2个,直径9/32 in. (7 mm)安装孔
在4-1/2 in.(114 mm) 面板中心
浮子:黄铜
镜片:聚碳酸酯
O形圈:饱和丁腈,适用于冷却剂或碳氢化
合物垫片:丁腈橡胶
排气管:1/4 x 5 in.(6 x 127mm)铜制手
杖,带1/4 NPT x 1/4 in.(6mm)管装
触点额定值:2 A @ 30 VAC / DC。
线束:1根,16 AWG x 26 in.
(1.5 mm 2 x 660 mm),带端子
装船重量: 29 oz. (0.82 kg.)
装船尺寸: 5-1/4 x 5-1/4 x 5-1/2in.
(133 x 133 x 140 mm)
L150 EL150K1 EL150EX
最高温度: 250° F (121° C)
最大工作压强: 25 PSI (172 kPa)
外壳: 砂铸铝,涂漆
大致尺寸: 6-1/2 x 5-3/4 x 5-1/4 in.
(165 x 146 x133 mm)
安装孔: 2个,直径 5/16 in. (8 mm)
在5-1/2 in.(140 mm) 面板中心
浮子: 304 不锈钢
镜片: 钢化玻璃
O形圈:饱和丁腈,适用于冷却剂或碳氢化合物
垫片:丁腈橡胶
排气管: 1/4 x 5 in. (6 x 127 mm)铜制手杖
带1/4 NPT x 1/4 in. (6 mm) 管装
和1/2 NPT 到 1/4 NPT 减速机配件
保护自动开关: SPDT rated 10 A @ 125VAC;
0.5 A @ 125 VDC; 10 A 30 VDC
线束:连接到接线端子
实验室批准: CSA Listed for Hazardous
Locations Class I,Division 1, Groups C & D
装船重量: 5 lbs. (2.26 kg.)
装船尺寸: 6-1/2 x 6-3/4 x 6-3/8 in.
(165 x 171 x 162 mm)
摩菲PS,PS Barbed和PS-D配置允许在没有配件的情
况下将L150 / EL150K1安装到散热器上。
订购方式
最高温度: 250° F (121° C)
最大工作压强:25 PSI (172 kPa)
外壳:压铸铝,聚氨酯涂层
大致尺寸:5 x 4-3/4 x 2-3/4 in.
(127 x 121 x 70 mm)
外壳防护等级: IP35
安装孔: 2个,直径9/32 in. (7 mm)
在4-1/2 in.(114 mm) 面板中心
浮子:黄铜
镜片: 聚碳酸酯
O形圈: 饱和丁腈,适用于冷却剂或碳氢化合物
垫片:丁腈橡胶
排气管: 1/4 x 5 in. (6 x 127 mm)铜制手杖
带with 1/4 NPT x 1/4 in. (6 mm) 管装
保护自动开关: SPDT rated 10 A @ 125 VAC;
0.5 A @ 125 VDC; 10 A 30 VDC
线束: 3根,18 AWG x 14 in. (1 mm 2 x
356mm)
装船重量: 42 oz. (1.2 kg.).
装船尺寸: 5-1/4 x 5-1/4 x 5-1/2in.
(133 x 133x 140 mm)

发动机冷却液位SWICHGAGE开关表
EL1501K1型
-用于检测冷却液位低/渗漏
-微动开关带触点
-手动开关测试按钮
EL150EX
在EL150K1 Class,Div.1.基础上加防爆
L150
除了触头接地,与EL150K1相似

DF755系列液压开关
-膜片操动微动开关
-用于有通气或无通气油箱,可用于Class I,Division 1危险场地
-DF755SL:铝壳
-DF755EXBR:青铜壳
-DF757:除了带可调节开关,液位差最大118英寸(3m)外,与DF755相似

Features:

Monitors Level of Coolant, Lube Oil, Diesel Fuel And Hydraulic Fluid.
Indicating Gauge
Low Limit Switch
Float Operated
Explosion-Proof Model Is Available. .

L150 (15700135): Liquid Level Swichgage
L150-BC (15700144): Liquid Level Swichgage
EL150K1 (15700116): Liquid Level Swichgage
EL150EX (15700121): Liquid Level Swichgage
BLSK1 (15700193): Bilge Level Switch System
DF755 (15700001): Hydrostatic Head Level Switch
DF757 (15700037): Hydrostatic Head Level Switch



L150 Series Level Swichgage instrument is a combination liquid level gage and low-limit switch; each unit includes (1) a chamber with pivotal float, (2) an indicating dial with pointer and (3) a low-level contact. When properly installed and maintained, the float operates the pointer which, in turn, both indicates level during normal operation and closes a switching circuit if the level falls to the low-limit set point.

L150

  • Maximum Temperature: 250° F (121° C)
  • Maximum Operating Pressure: 25 PSI (172 kPa)
  • Case: Die cast aluminum, polyurethane coated; approximate dimensions; 4-1/2 x 4-3/4 x 2-3/4 in. (114 x 121 x 70 mm)
  • Mounting Holes: (2) 9/32 in. (7 mm) diameter at 4-1/2 in. (114 mm) on center
  • Float: Brass
  • Lens: Polycarbonate
  • O-rings: Saturated Nitrile, are suitable for coolant or hydrocarbons
  • Gasket: Nitrile
  • Vent Tube: 1/4 x 5 in. (6 x 127 mm) copper cane with 1/4 NPT x 1/4 in. (6 mm) tube fitting
  • Contact Rating: 2 A @ 30 VAC/DC. Wire: (1) 16 AWG x 26 in. (1.5 mm 2 x 660 mm) with terminals
  • Shipping Weight: 29 oz. (0.82 kg.)
  • Shipping Dimensions: 5-1/4 x 5-1/4 x 5-1/2 in. (133 x 133 x 140 mm)

EL150K1

  • Maximum Temperature: 250° F (121° C)
  • Maximum Operating Pressure: 25 PSI (172 kPa)
  • Case: Die cast aluminum, polyurethane coated; approximate dimensions; 5 x 4-3/4 x 2-3/4 in. (127 x 121 x 70 mm)
  • Enclosure Rating: IP35
  • Mounting Holes: (2) 9/32 in. (7 mm) diameter at 4-1/2 in. (114 mm) on center
  • Float: Brass
  • Lens: Polycarbonate
  • O-rings: Saturated Nitrile, are suitable for coolant or hydrocarbons
  • Gasket: Nitrile
  • Vent Tube: 1/4 x 5 in. (6 x 127 mm) copper cane with 1/4 NPT x 1/4 in. (6 mm) tube fitting
  • Snap-Switch: SPDT rated 10 A @ 125 VAC; 0.5 A @ 125 VDC; 10 A 30 VDC
  • Wire: (3) 18 AWG x 14 in. (1 mm 2 x 356 mm)
  • Shipping Weight: 42 oz. (1.2 kg.).
  • Shipping Dimensions: 5-1/4 x 5-1/4 x 5-1/2 in. (133 x 133 x 140 mm)

EL150EX

  • Maximum Temperature: 250° F (121° C)
  • Maximum Operating Pressure: 25 PSI (172 kPa)
  • Case: Sand cast aluminum, painted; approximate dimensions: 6-1/2 x 5-3/4 x 5-1/4 in. (165 x 146 x133 mm)
  • Mounting Holes: (2) 5/16 in. (8 mm) diameter at 5-1/2 in. (140 mm) on center
  • Float: 304 Stainless steel
  • Lens: Tempered glass
  • O-rings: Saturated Nitrile, suitable for coolant or hydrocarbons
  • Gasket: Nitrile
  • Vent Tube: 1/4 x 5 in. (6 x 127 mm) copper cane with 1/4 NPT x 1/4 in. (6 mm) tube fitting and 1/2 NPT to 1/4 NPT reducer fitting
  • Snap-Switch: SPDT rated 10 A @ 125 VAC; 0.5 A @ 125 VDC; 10 A 30 VDC
  • Wire: Wired to terminal block
  • Laboratory Approvals: CSA Listed for Hazardous Locations Class I, Division 1, Groups C & D
  • Shipping Weight: 5 lbs. (2.26 kg.)
  • Shipping Dimensions: 6-1/2 x 6-3/4 x 6-3/8 in. (165 x 171 x 162 mm)



- How to order

Model /Part Number Description Notes
Model /Part Number Description Notes
L150 - Level Swichgage
EL150K1 IP35 rated enclosure Level Swichgage
EL150EX EL150K with CSA-listed explosion-proof enclosure Level Swichgage
15000138 All parts except case and body L150 Repair Kits
15000101 Case/body assembly L150 Repair Kits
15000139 All parts except case and body EL150K1 Repair Kits
15000101 Case/body assembly EL150K1 Repair Kits
15000100 Lens/switch assembly EL150K1 Repair Kits
15000110 Cover and float assembly EL150EX Repair Kits
15000108 Lid assembly EL150EX Repair Kits
15000109 Switch/terminal assembly EL150EX Repair Kits
15000107 Radiator fitting (PS), thin wall, 1/4 in. (6 mm) tube fitting Accessories
15010202 Radiator fitting (PS-D), for diesel or oil, thick wall (to 1/4 in. [6 mm]), accepts 1/2 in. (13 mm) I.D. hose or 1/4 in. (6 mm) O.D. tubing Accessories
15010167 Radiator fitting (PS Barbed), thin wall, 1/4 in. (6 mm) tubing or hose Accessories
15700854 Visor Kit, EL150K1 (knob guard) Accessories



Manuals

The primary use of the L150/EL150K1 is for engine cooling systems, surge or expansion tanks, condenser radiator or vapor phase systems, pressurized or atmospheric systems. The Level Swichgage instrument can also be used to monitor lube oil, hydraulic fluid or diesel fuel reservoirs and activates alarms and/or shut down at a predetermined minimum level. These instruments are built for low pressure systems with a maximum of 25 psi (172 kPa) [1.72 bar].
