MURPHY L100 / L120 / L127 Float Actuated Oil Level Swichgage For Small Engines and Pumps
L100, L120, L127, L128 – Float actuated oil level Swichgage
浮子液位开关

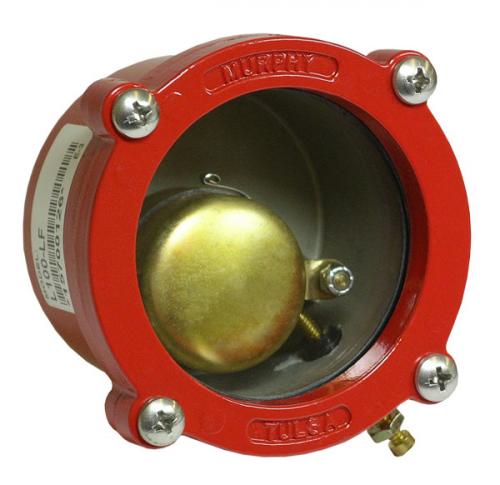

L100, L120, L127, L128 Float Actuated Oil Level Swichgage instrument


Float Actuated Oil Level Swichgage instruments are a combination oil level sight gage and adjustable, low and/or high limit switch.
浮子驱动式油位开关仪表是一种组合式油位观察计和可调、低限位和/或高限位开关。

限位开关在操作过程中常开,但如果液位下降(或上升)到浮子接触限位螺钉的位置,则限位开关闭合。触点完成电路接地磁电机或跳闸墨菲磁开关。磁性开关可用于激活警报和/或关闭。型号也可不带限位开关。液位计可用于各种曲轴箱、泵齿轮箱或储油器,主要用于小型发动机和泵。安装简单,节省了停机时间和维修成本。The limit switches are normally open during operation — yet closed if the level drops (or rises) to where the float contacts the limit screw. The contact completes a circuit to ground a magneto or trip a Murphy magnetic switch. The magnetic switch can be used to activate alarms and/or shut down. Models are also available without limit switches. The level instruments can be used on a variety of crankcases, pump gearcases or oil reservoirs — primarily on small engines and pumps. Installation is simple, and these instruments save on reduced downtime and repair costs.

Murphy by Enovation Controls level instruments pdf catalog
MURPHY L100 / L120 / L127 Float Actuated Oil Level Swichgage For Small Engines and Pumps

Features:

  • See Oil Level and Condition Without Shutting Down
  • Shutdown or Alarm on Low Lube Level
  • Adjustable Limit Switch for Alarm and/or Shutdown
  • Save on Reduced Downtime and Repair Costs
  • Simple Installation



The Float Actuated Oil Level Swichgage instruments are a combination oil level sight gage and adjustable, low and/or high limit switch. The limit switches are normally open during operation — yet closed if the level drops (or rises) to where the float contacts the limit screw. The contact completes a circuit to ground a magneto or trip a Murphy magnetic switch. The magnetic switch can be used to activate alarms and/or shut down. Models are also available without limit switches.

The level instruments can be used on a variety of crankcases, pump gearcases or oil reservoirs — primarily on small engines and pumps. Installation is simple, and these instruments save on reduced downtime and repair costs.

The following list displays the model and its typical application:

  • L100 ? : Small engines and pumps with non-vented crankcase
  • L100W ? : Small engines and pumps with vented crankcase
  • L120: Machined surface on crankcase such as Witte, National-Oilwell/Garland
  • L127: Machined surface on crankcase, specifically, Fairbanks-Morse ZC Series and Bell Engines

? Models available with high and low options.

Specifications

Maximum Pressure Rating (all models): 30 psi (207 kPa) [2.07 bar]

L100 and L100W

  • Case: Die cast aluminum
  • Float: Brass
  • Rating: 2 A @ 30 VAC/DC
  • Vent Fitting: 1/4 in. (6 mm) tube x 1/8 NPT
  • Inlet Fitting: Hex Nipple 1/4 NPT

L100:

  • Copper Tubing: 1/4 x 48 in. dia. (6 mm x 1.2 m)
  • Reducer Bushing: 1/2 NPT x 1/4 NPT
  • Close Nipple: 1/2 NPT
  • Tee: 1/2 NPT, black pipe
  • Wire: 16 AWG x 24 in. (1.5 mm2x 610 mm)

L100W:

  • Vent Tube: 1/4 x 3-3/8 in. (6 x 86 mm)
  • Reducer Bushing: 3/4 NPT x 1/4 NPT
  • Close Nipple: 3/4 NPT
  • Tee: 3/4 NPT, black pipe
  • Wire: 16 AWG x 24 in. (1.5 mm2x 610 mm)

L120

  • Case: Cast Aluminum
  • Float: Brass
  • Rating: 2 A @ 30 VAC/DC
  • Mounting Bolts: 1/4-20 UNC–2A (4 required)

L127

  • Case: TROGAMID Nylon
  • Float: Brass
  • Rating: 2 A @ 30 VAC/DC
  • Wire: 16 AWG x 48 in. (1.5 mm2 x 1.2 m)
  • Mounting Bolts:
    • L127: 1/4-20 NC x 2 in. (4 required)





Options listed below. All configurations may not be available. Call your sales representative or Enovation Controls for more information.

L100

  • L100 = Sight Gage with Low Limit Switch. Used with Small Engines and Pumps with Non-vented Crankcase.
  • L100W = Sight Gage with Low Limit Switch. Used with Small Engines and Pumps with Vented Crankcase.
  • L120 = Sight Gage with Low Limit Switch. Used with Machined Surface on Crankcase, such as Witte, National-Oilwell/ Garland.
  • L127 = Sight Gage with Low Limit Switch. Used with Machined Surface on Crankcase, specifically, Fairbanks-Morse ZC Series and Bell Engines.
  • L128 = Sight Gage with Low Limit Switch. Used with Machined Surface on Crankcase, specifically, Arrow and Continental Emsco/Climax.

For more information about this product, you can download the related literature here:
