Murphy Thermocouple Temperature Sensors & Instruments
摩菲热电偶(温度传感器和仪表)

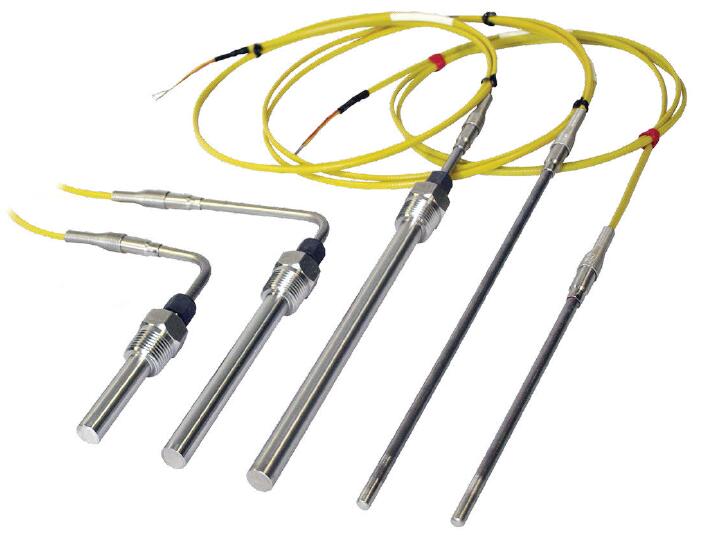

热电偶装在 1/4 英寸直径的 316 不锈钢管护套中,带有不锈钢钟形弹簧,用于消除应变。最初的产品是带有 6 英寸和 10 英寸长、直径为 1/4 英寸的探头的 K 型热电偶。热电偶直接运输,但可以使用标准弯管器沿其长度的任何位置弯曲成 90° 角,以最大限度地减少所需的间隙并有助于防止人员在设备上工作造成的损坏。热电偶是尖端敏感的,以尽量减少环境温度的影响,应插入管道内径的 25% 到 75% 之间,或者插入到容器中时,应足以将探头尖端上的任何皮肤温度影响降至最低。
热电偶的制造符合 ASTM E608 和 IEC 60584。

热电偶封装在直径为1/4英寸的316不锈钢管套中,带不锈钢钟簧,用于消除应变。首次发行的产品是K型热电偶,带有6英寸和10英寸长、直径为1/4英寸的探头。热电偶直接装运,但可使用标准弯管机沿其长度弯曲至90°角,以尽量减少所需间隙,并有助于防止因操作装置的人员造成损坏。热电偶是尖端敏感型,可将环境温度影响降至最低,且应插入管道内径的25%至75%之间,或足以将安装在容器中时探头尖端的任何表面温度影响降至最低。



Thermocouple, Stainless Steel Tube Type 1/4 Inch Diameter



- ?″ 直径 316 不锈钢管 护套
- K 型、6" 和 10" 探头
- 可与 2"、4.5" 和 7.5" 插入式热套管一起使用
- 可以沿其长度的任何地方弯曲 成 90° 角
- 尖端敏感,以最大限度地减少周围环境的温度 影响
- ?″ Diameter 316 Stainless Steel Tubing Sheath
- Type K, 6" and 10" Probes
- Can be Used With 2", 4.5" and 7.5" Insertion Thermowells
- Can be Bent Anywhere Along its Length to a 90° Angle
- Tip Sensitive to Minimize Temperature Influence From Surrounding Environment



特征

- 带有不锈钢钟形弹簧的不锈钢过渡密封压盖,用于消除应力。
- 用于将热电偶固定在热电偶套管中适当深度的标准通孔不锈钢压缩配件。
- 可通过标准 1/4 英寸不锈钢孔直通管压缩接头直接插入低压应用过程。
- 支持从测量点到最近的导管入口、接线盒或一直到装有读数和监测仪器的面板。也可以安装在电缆桥架中。
- 热套管组件带有一个不锈钢孔,通过压缩接头和套圈节省安装时间和金钱。
- 热套管热套管提供 2 英寸、4-1/2 英寸或 7-1/2 英寸长度的插入深度,并具有 1/2 英寸 NPT 过程连接。它们配有标准不锈钢压缩配件,用于将热电偶固定在热电偶套管中的适当深度。在低压应用中,热电偶可以通过标准的 1/4 英寸不锈钢管压缩配件直接插入过程中。

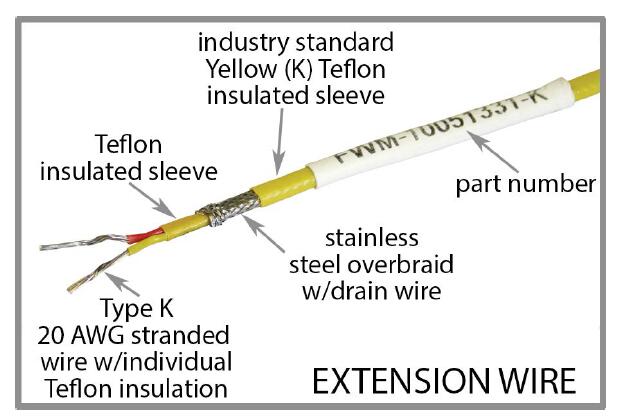

延长线


K型,在一个坚固的电缆包封20 AWG链延长线是否满足苛刻的环境。行业标准的黄色 Teflon 可以轻松识别 K 型热电偶线,因此可以按照良好的安装规范将它们与高压线分开。



The thermocouples are encased in a 1/4 inch diameter 316 stainless steel tubing sheath with stainless steel Bell Spring for strain relief. The initial offerings are K type thermocouples with 6-inch and 10-inch long 1/4-inch diameter probes. The thermocouples are shipped straight but can be bent with standard tubing benders anywhere along its length to a 90° angle to minimize clearance required and help prevent damage due to personnel working on the unit. The thermocouple is tip sensitive to minimize ambient temperature influence and should be inserted between 25% and 75% of the piping inside diameter or enough to minimize any skin temperature affect on the tip of the probe when installed in vessels.



Features

  • Stainless steel transition sealing gland with a stainless steel Bell Spring for strain relief.
  • Standard bore through stainless steel compression fitting for securing the thermocouple in the thermowell at the appropriate depth.
  • Can be inserted directly into a low-pressure application process through a standard 1/4-inch stainless steel bore through tubing compression fitting.
  • Enables a run from the point of measurement to the nearest conduit entry, junction box or all the way to the panel housing the readout and monitoring instrument. Can also be installed in a cable tray.
  • The thermowell assembly comes with a stainless steel bore through compression fitting and ferrule saving installation time and money.

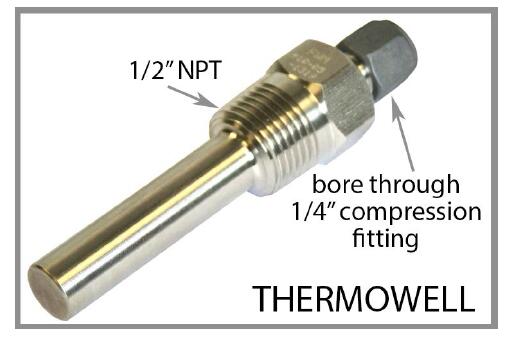

Thermowells

Thermowells are available in 2-inch, 4-1/2 inch or 7-1/2 inch lengths for insertion depth and have a 1/2-inch NPT process connection. They are supplied with a standard stainless steel compression fitting for securing the thermocouple in the thermowell at the appropriate depth. In low-pressure applications the thermocouple can be inserted directly into the process through a standard 1/4-inch SS tubing compression fitting.

Extension Wire

The Type K, 20 AWG stranded extension wire encased in a rugged cable meets demanding environments. The industry standard yellow Teflon allows easy identification of K type thermocouple wires so they can be separated from high voltage wires following good installation practices.



HOW TO ORDER Specifications
产品订购

Part Number Description Notes
10051331 Thermocouple, Type K, 1/4Dia. Tube x 6”L w/5' Thermocouple Extension Wire
10051325 Thermocouple, Type K, 1/4Dia. Tube x 6”L w/15' Thermocouple Extension Wire
10051326 Thermocouple, Type K, 1/4Dia. Tube x 6”L w/30' Thermocouple Extension Wire
10051327 Thermocouple, Type K, 1/4Dia. Tube x 6”L w/50' Thermocouple Extension Wire
10051395 Thermocouple, Type K, 1/4Dia. Tube x 6"L w/75' Thermocouple Extension Wire
10051328 Thermocouple, Type K, 1/4Dia. Tube x 6”L w/100' Thermocouple Extension Wire
10051332 Thermocouple, Type K, 1/4Dia. Tube x 10”L w/5' Thermocouple Extension Wire
10051323 Thermocouple, Type K, 1/4Dia. Tube x 10”L w/15' Thermocouple Extension Wire
10051317 Thermocouple, Type K, 1/4Dia. Tube x 10”L w/30' Thermocouple Extension Wire
10051322 Thermocouple, Type K, 1/4Dia. Tube x 10”L w/50' Thermocouple Extension Wire
10051396 Thermocouple, Type K, 1/4Dia. Tube x 10"L w/75' Thermocouple Extension Wire
10051321 Thermocouple, Type K, 1/4Dia. Tube x 10”L w/100' Thermocouple Extension Wire
10707436 Thermowell, 1/2” NPT, 1/4 ” T, 2.0”L Assembly 304SS
10707437 Thermowell, 1/2” NPT, 1/4 ” T, 4.5”L Assembly 304SS
10707438 Thermowell, 1/2” NPT, 1/4 ” T, 7.5”L

Assembly 304SS



零件号

描述

笔记

10051331

热电偶, K 型, 1/4Dia 。管 x 6”L

带 5' 热电偶延长线

10051325

热电偶, K 型, 1/4Dia 。管 x 6”L

带 15' 热电偶延长线

10051326

热电偶, K 型, 1/4Dia 。管 x 6”L

带 30' 热电偶延长线

10051327

热电偶, K 型, 1/4Dia 。管 x 6”L

带 50' 热电偶延长线

10051395

热电偶, K 型, 1/4Dia 。管 x 6"L

带 75' 热电偶延长线

10051328

热电偶, K 型, 1/4Dia 。管 x 6”L

带 100' 热电偶延长线

10051332

热电偶, K 型, 1/4Dia 。管 x 10”L

带 5' 热电偶延长线

10051323

热电偶, K 型, 1/4Dia 。管 x 10”L

带 15' 热电偶延长线

10051317

热电偶, K 型, 1/4Dia 。管 x 10”L

带 30' 热电偶延长线

10051322

热电偶, K 型, 1/4Dia 。管 x 10”L

带 50' 热电偶延长线

10051396

热电偶, K 型, 1/4Dia 。管 x 10"L

带 75' 热电偶延长线

10051321

热电偶, K 型, 1/4Dia 。管 x 10”L

带 100' 热电偶延长线

10707436

热套管, ?”NPT , ?” T , 2.0”L

组装 304SS

10707437

热套管, ?”NPT , ?” T , 4.5”L

组装 304SS

10707438

热套管, ?”NPT , ?” T , 7.5”L

组装 304SS



Part Number

Description

Notes

10051331

Thermocouple, Type K, 1/4Dia. Tube x 6”L

w/5' Thermocouple Extension Wire

10051325

Thermocouple, Type K, 1/4Dia. Tube x 6”L

w/15' Thermocouple Extension Wire

10051326

Thermocouple, Type K, 1/4Dia. Tube x 6”L

w/30' Thermocouple Extension Wire

10051327

Thermocouple, Type K, 1/4Dia. Tube x 6”L

w/50' Thermocouple Extension Wire

10051395

Thermocouple, Type K, 1/4Dia. Tube x 6"L

w/75' Thermocouple Extension Wire

10051328

Thermocouple, Type K, 1/4Dia. Tube x 6”L

w/100' Thermocouple Extension Wire

10051332

Thermocouple, Type K, 1/4Dia. Tube x 10”L

w/5' Thermocouple Extension Wire

10051323

Thermocouple, Type K, 1/4Dia. Tube x 10”L

w/15' Thermocouple Extension Wire

10051317

Thermocouple, Type K, 1/4Dia. Tube x 10”L

w/30' Thermocouple Extension Wire

10051322

Thermocouple, Type K, 1/4Dia. Tube x 10”L

w/50' Thermocouple Extension Wire

10051396

Thermocouple, Type K, 1/4Dia. Tube x 10"L

w/75' Thermocouple Extension Wire

10051321

Thermocouple, Type K, 1/4Dia. Tube x 10”L

w/100' Thermocouple Extension Wire

10707436

Thermowell, ?”NPT, ?” T, 2.0”L

Assembly 304SS

10707437

Thermowell, ?”NPT, ?” T, 4.5”L

Assembly 304SS

10707438

Thermowell, ?”NPT, ?” T, 7.5”L

Assembly 304SS
