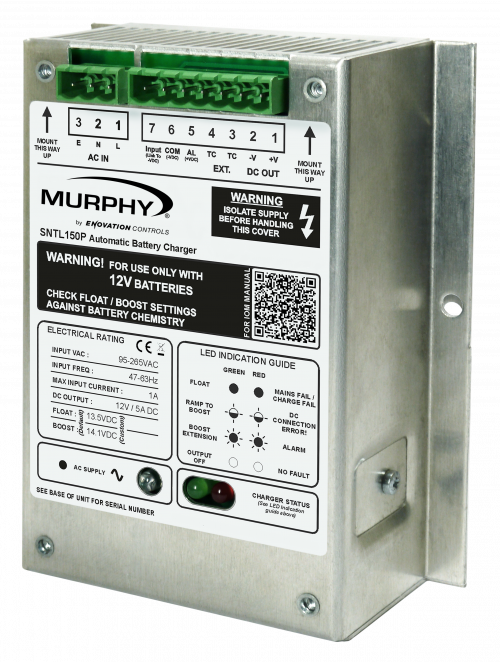

MURPHY Sentinel 150P Series Automatic Switch Mode Battery Charger
MURPHY SENTINEL 150P SERIES Battery Charger
MURPHY Sentinel 150P是一系列高效、高性能的电池充电器，专为连续浮充和备用电源应用而设计。开关模式技术提高了效率和低散热，宽电源电压容限和低输出纹波所有在一个紧凑和轻量级的结构设计。充电器配置为快速、准确充电，以提供最佳的电池寿命和可靠性。每个充电器的输出可由OEM配置，以实现不同电池类型的最佳充电：通风/湿铅酸、钙、密封VRLA（AGM或凝胶）、镍镉或定制要求。非常平滑的输出（<1%纹波）允许密封或通风电池充电或用作独立电源。
The Sentinel 150P is a range of highly efficient, high performance battery chargers designed for continuous float charge and standby power applications.Switch Mode technology improves efficiency and low heat dissipation, wide supply voltage tolerance and low output ripple all within a compact and lightweight construction design. The chargers are configured for fast, accurate charging to give optimum battery life and reliability. Each charger’s output can be OEM-configured for optimal charging of different cell types: vented/wet lead acid, Calcium-Calcium, sealed VRLA (AGM or Gel), NiCd or custom requirements. The very smooth output (< 1% ripple) allows charging of sealed or vented batteries or use as a standalone power supply.
MURPHY Sentinel 150P Series Automatic Switch Mode Battery Charger
MURPHY SENTINEL 150P SERIES Battery Charger
规格参数：
Power Supply
- Operating Voltage: 95 to 265 V AC
- Operating Frequency: 47 - 63 Hz.
DC Charge Output
- Nominal voltage: 12 or 24 VDC
- Float/boost voltage: See Output Calibration table
- Maximum current limit: 5 A
- Voltage ripple: <1%
- Line regulation: <2%
- Load regulation: <2%
Input/Output
- Control input: Digital (switch) input, close to –DC to activate, programmable function
- Alarm output: Relay switched +DC, 1A max @ 30 VDC, programmable function
Physical
- Protective cover: 1050 aluminum, 1.2 mm
- Operating temperature: –22° F to 140° F (–30° C to 60° C)
- Storage temperature: –40° F to 140° F (–40° C to 60° C)
- Humidity: 20% to 90% RH
- Electrical safety: 2006/95/EC (EN 60065)
- Electromagnetic compatibility: 2004/108/EC (EN 61000-6-2, EN 61000-6-4)
Dimensions
Dimensions for reference only. Use actual product for mounting template. For safe heat dissipation, mount product in orientation shown, with minimum air-gap clearance of 1.5 in. (40 mm) above and below and 1.0 in. (25 mm) at each side.
|
12 Volt Model |
24 Volt Model |
| Overall: |
| W |
4.28 in. (108.6 mm) |
| H |
5.31 in. (135 mm) |
| D |
1.77 in. (45 mm) |
2.17 in (55 mm) |
| Fixing Holes: |
| X |
3.90 in. (99mm) |
| F |
? 0.22 in. (5.65 mm) |
| Weight: |
|
1.45 lb. (0.65 kg) |
1.65 lb. (0.75 kg) |
WARNING : This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information about California Propsition 65, go to www.P65Warnings.ca.gov or visit our California Proposition 65 page.
- How to order
Part Number Model/Description Notes
| Part Number |
Model/Description |
Notes |
| 42703810 |
SNTL150P1205CDLA |
Sentinel 150P, 12 V / 5 A nominal output |
| 42703811 |
SNTL150P2405CDLA |
Sentinel 150P, 24 V / 5 A nominal output |
| 42703820 |
SNTL150P1205CDALA |
As 42703810, plus alarm output and control input (programmable functions) |
| 42703821 |
SNTL150P2405CDALA |
As 42703811, plus alarm output and control input (programmable functions) |
| 42703900 |
SNTL-RTC sensor for remote temperature compensation feature, complete with 3 m / 9.8 ft lead assembly |
Non standard lengths available to special order. |
| 42703825 |
SNTL150P-PCCONN programming kit |
Includes SNTL150P-PCSUITE software tool (PC compatible), USB-TTL interface and power/data connection leads. |
NOTE: All part numbers above are supplied with output calibrated for vented lead-acid cells. Output calibration can be optimized for different battery types by using the SNTL150P-PCSUITE software tool.
How to Order
Part Number Model Description
42703810 SNTL150P1205CDLA Sentinel 150P, 12 V / 5 A nominal output
42703811 SNTL150P2405CDLA Sentinel 150P, 24 V / 5 A nominal output
42703820 SNTL150P1205CDALA As 42703810, plus alarm output and control input (programmable
functions)
42703821 SNTL150P2405CDALA As 42703811, plus alarm output and control input (programmable
functions)
NOTE: All part numbers above are supplied with output calibrated for vented lead-acid cells. Output calibration can
be optimized for different battery types by using the SNTL150P-PCSUITE software tool.
Accessories for Sentential 150P Series
Part Number Description
42703619 RTC sensor for remote temperature compensation feature, complete with 3 m / 9.8 ft lead
assembly. Non standard lengths available to special order.
42703825 SNTL150P-PCCONN programming kit. Includes SNTL150P-PCSUITE software tool (PC compatible), USB-TTL interface and power/data connection leads.
- 产品技术资料下载：
Additional product documentation can be found on our product support website or by clicking the Help Center button above.
|
