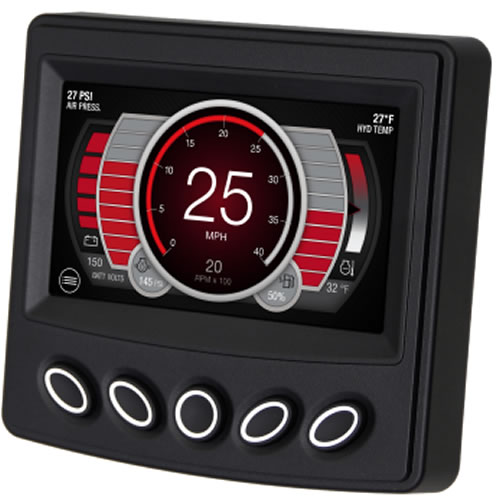

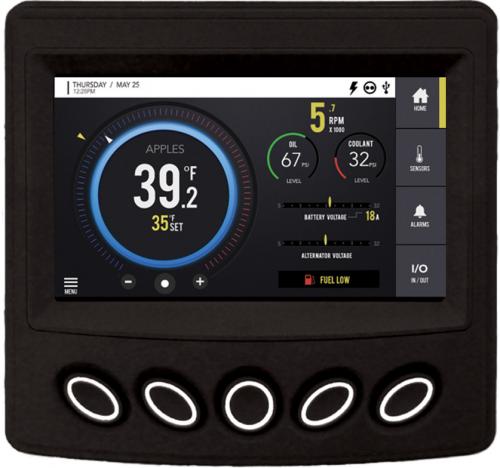

Murphy PV485 可编程显示器 -IP67显示屏 4.3”屏幕
Murphy PowerView 485 Displays PV485



PV485是为满足现代电子发动机和设备应用的需要而设计的一种一体化彩色显示器和控制器。它虽小,但坚固的设计提供了广泛的可配置I/O,包括RS485,以支持机械和J1939电子引擎。PV485还支持Tier 4和stage IV引擎,帮助您更轻松地过渡到Tier 4。该显示器的键合液晶显示器可以很容易地在阳光下观看,其坚固的触感软键和耐用的设计使其成为各种环境和应用的完美解决方案。PV485 is an all-in-one color display and controller designed to meet the needs of modern electronic engines and equipment applications.It's small but rugged design offers a wide array of configurable I/O, including RS485, to support both mechanical and J1939 electronic engines. The PV485 also supports Tier 4 and stage IV engines, helping to make your transition to Tier 4 easier. The display’s bonded LCD can easily be viewed in full sunlight, and its rugged tactile soft keys and durable design make it a perfect solution for all types of environments and applications.

性能参数:

- High-Bright Display
- Easy-to-use configuration software
- Customizable I/O
- Rugged, reliable, robust design
- Multiple languages
- Real-time clock with battery backup
- Fully sealed to meet IP67 rating

The PV485 is a customizable, all-in-one color display and controller designed to meet the needs of modern electronic engines and equipment applications. Its rugged design offers a wide array of configurable I/O and supports both mechanical and J1939 electronic engines.


Murphy PowerView 485 Displays
可编程显示器
IP67 4.3”屏幕

The PV485 also supports Tier 4 and stage IV engines, helping to make your transition to Tier 4 easier.

The PV485 controller is compatible with the PowerVision Configuration Studio? software, so custom configurations can be quickly developed. With the PowerVision Configuration Studio software, it’s easy to define the user interface screens, as well as the functionality and sequence of events controlled by the PV485. You can configure equipment control such as: autostart, pressure control, data logging and alarms. You can even add custom graphics and company branding to the user interface.

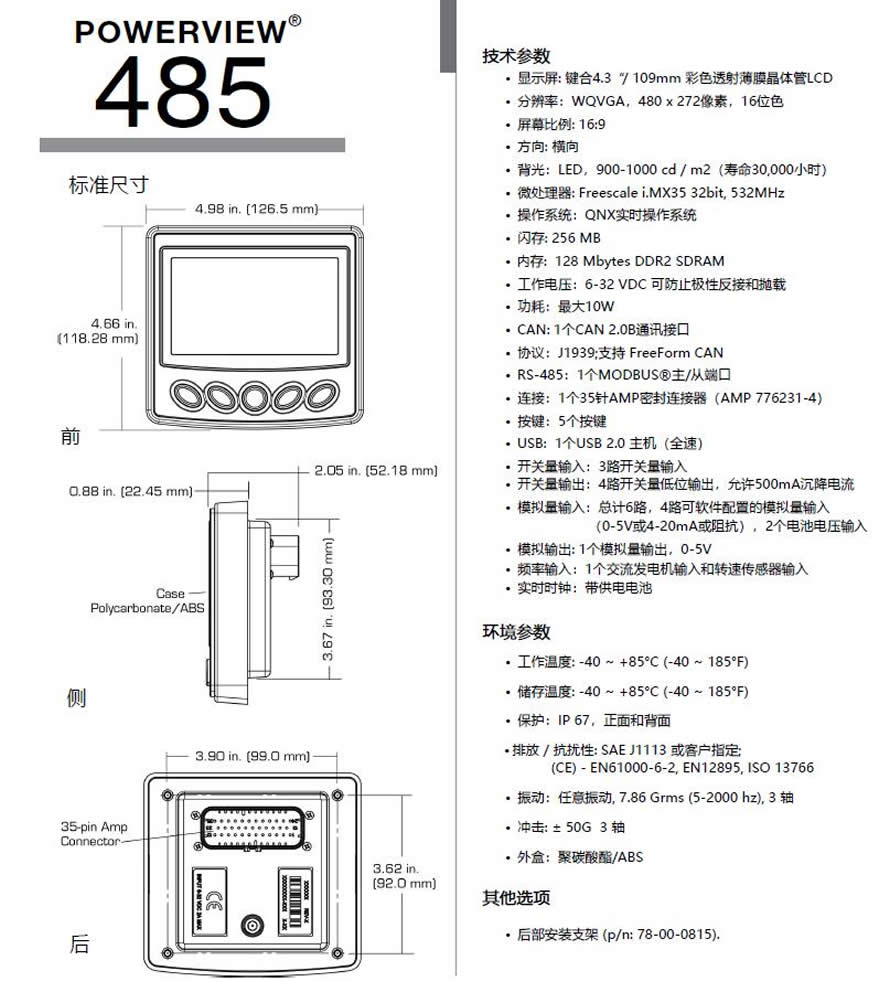

TECHNICAL SPECS
规格参数:

TECHNICAL SPECS

  • Part No. 78700639
  • Display: Bonded 4.3”/109mm color transmissive TFT LCD
  • Resolution: WQVGA, 480 x 272 pixels, 16-bit color.
  • Aspect Ratio: 16:9.
  • Orientation: Landscape.
  • Backlighting: LED, 900-1000 cd/m2 (30,000 hr lifetime).
  • Microprocessor: Freescale iMX35 32bit, 532MHz.
  • Operating System: QNX Real-Time Operating System.
  • Flash Memory: 256 MB.
  • Operating Voltage: 6 to 32 VDC protected against reversed polarity and load-dump.
  • Power Consumption: 10W max.
  • CAN: 1 CAN 2.0B.
  • Protocols: J1939; FreeForm CAN support.
  • Connection: (1) 35-pin AMP seal connector (AMP 776231-1).
  • Keyboard: 5 tactile buttons.
  • USB: (1) USB 2.0 host (full speed).
  • Digital Inputs: (3) digital inputs.
  • Digital Outputs: (4) low side open-drain, capable of sinking 500mA.
  • Analog Inputs: (6) total, (4) software configurable (0-5V, 4-20mA, Resistive) +Battery Voltage + 2nd Battery Voltage.
  • Analog Outputs: (1) 0-5V.
  • Frequency Inputs: (1) Alternator and Magnetic Pickup.
  • Real-Time Clock: with battery backup.
  • RS-485

ENVIRONMENTAL SPECS

  • Operating Temperature: -40 to +85°C (-40 to 185°F).
  • Storage Temperature: -40 to +85°C (-40 to 185°F).
  • Protection: IP 67, front and back.
  • Emissions / Immunity: SAE J1113 or customer-specified; (CE) - EN61000-6-2, EN12895, ISO 13766
  • Vibration: Random vibration, 7.86 Grms (5-2000 hz), 3 axis.
  • Shock: ± 50G in 3 axis.
  • Case: Polycarbonate / ABS.




- 如何订货

Part Number Model/Description Notes
Part Number Model/Description Notes
78700639 PV485 Display
78000815 Rear-Mount Bracket Accessory
78000824 Wiring Harness, Loose Leads, 24 inches Accessory
78090077 Programming Harness Accessory
78700590 Programming Kit Accessory



- For more information about this product, you can download the related literature here:
资料下载

- Sales Bulletin (1715064; revision date - 05/2017)
- Sales Flier (1715037; revision date - 04/2017)
- Installation Manual (00-02-1018; revision date - 05/2017)
- PowerView Brochure (1712039; revision date - 03/2017)
