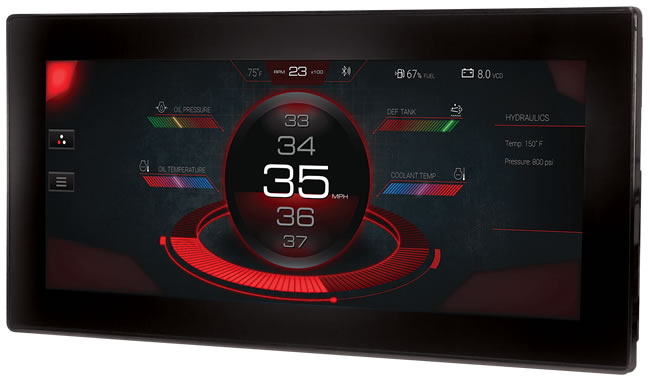

Murphy PowerView PV1200 Display with Bluetooth and Wi-Fi
POWERVIEW 1200 大型真彩显示屏为恶劣环境应用带来完美的客户体验
PowerView 1200不仅提供了PV780的所有功能，并具有更强劲的性能，更多的内存和更大的空间，可在一个屏幕上显示多个重要的应用信息。 凭借其更快的处理系统，PV1200可与蓝牙，以太网和Wi-Fi连接，与此同时，它拥有8GB的大容量存储空间。这款功能齐全的可配置显示器将引擎，传动系统信息集成到易于阅读的操作员界面中。
即使在炫目的阳光下，也可轻松观看这款带有手套触摸功能的12.3英寸显示屏。领先的液晶粘帖技术和坚固的设计使其成为适用于所有环境和应用的完美解决方案。
显示器的软件设计可通过PowerVision ConfigurationStudio??内部的图形语言或脚本语言快速完成。该软件工具可以快速创建个性化用户界面，自定义参数和用于屏幕文本，OEM品牌的专用图形等。
Murphy PowerView PV1200 Display
PV1200可编辑显示器 显示屏
PDF Catalog

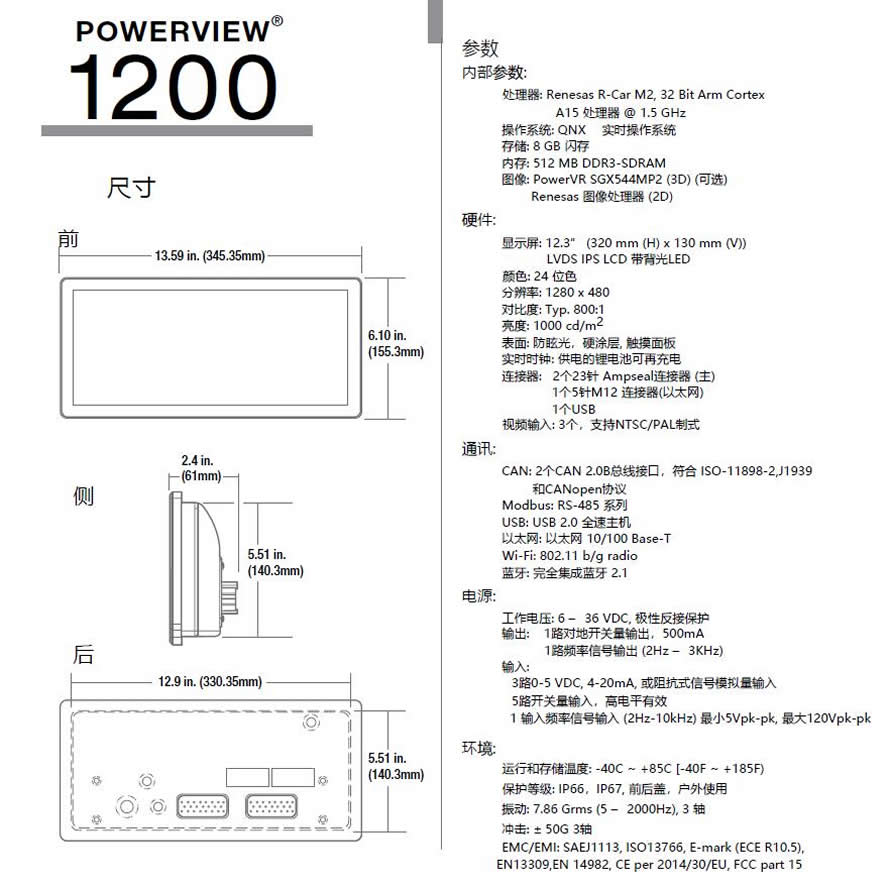

性能参数：
参数
内部参数:
- 处理器: Renesas R-Car M2, 32 Bit Arm Cortex
A15 处理器 @ 1.5 GHz
- 操作系统: QNX?? 实时操作系统
- 存储: 8 GB 闪存
- 内存: 512 MB DDR3-SDRAM
- 图像: PowerVR SGX544MP2 (3D) (可选)
Renesas 图像处理器 (2D)
硬件:
- 显示屏: 12.3” (320 mm (H) x 130 mm (V))
LVDS IPS LCD 带背光LED
- 颜色: 24 位色
- 分辨率: 1280 x 480
- 对比度: Typ. 800:1
- 亮度: 1000 cd/m2
- 表面: 防眩光，硬涂层, 触摸面板
- 实时时钟: 供电的锂电池可再充电
- 连接器: 2个23针 Ampseal连接器(主)
1个5针M12 连接器(以太网)
1个USB
- 视频输入: 3个，支持NTSC/PAL制式
通讯:
- CAN: 2个CAN 2.0B总线接口，符合ISO-11898-2,J1939
和CANopen协议
- Modbus: RS-485 系列
- USB: USB 2.0 全速主机
- 以太网: 以太网 10/100 Base-T
- Wi-Fi: 802.11 b/g radio
- 蓝牙: 完全集成蓝牙 2.1
电源:
- 工作电压: 6 – 36 VDC, 极性反接保护
- 输出: 1路对地开关量输出，500mA
1路频率信号输出(2Hz – 3KHz)
- 输入:
3路0-5 VDC, 4-20mA, 或阻抗式信号模拟量输入
5路开关量输入，高电平有效
1 输入频率信号输入 (2Hz-10kHz) 最小5Vpk-pk, 最大120Vpk-pk
环境:
- 运行和存储温度: -40C ~ +85C [-40F ~ +185F)
- 保护等级: IP66，IP67, 前后盖，户外使用
- 振动: 7.86 Grms (5 – 2000Hz), 3 轴
- 冲击: ±50G 3轴
- EMC/EMI: SAEJ1113, ISO13766, E-mark (ECE R10.5),
EN13309,EN 14982, CE per 2014/30/EU, FCC part 15
- Largest display in the PowerView line at 12.3-in.
- Boasts high-speed processor and wide format display
- Easy-to-use configuration software
- CAN-based display with rich, full-color graphics
- Compatible with mechanical and electronic engines
- Bonded glare-free LCD screen
- Pending Q3 Release
The PowerView 1200 offers all the features of Murphy's popular PV780 with more power, more memory and more real estate to show vital application information on one screen. With its faster processor, this version of the full-color display adds more connectivity with Bluetooth, Ethernet and Wi-Fi capabilities while it includes an expansive 8GB of storage.
The full-featured, configurable display integrates vital engine, transmission and diagnostic information into an easy-to-read operator interface.The 12.3-inch screen, with glove touch, can be easily viewed, even in full sunlight. The display’s bonded LCD and rugged design make it a perfect solution for all types of environments and applications.Customization of the display can be accomplished quickly via graphical programming or scripting with the PowerVision Configuration Studio software. This tool allows for quick creation of personalized user interfaces, custom parameters and specialized graphics for on-screen text, OEM branding and more.
规格参数：
- Computing
- Processor: Renesas ? R-Car M2 with Arm ? Cortex ? -A15 dual-core processor @ 1.5 GHz (32-bit)
- Operating System: QNX ? Realtime Operating System
- Storage: 8 GB flash memory
- RAM: 512 MB DDR3-SDRAM
- Graphics: Renesas graphics processor
- Display
- Screen Size: 12.3 inches (320 mm?×?130 mm)
- Type: LVDS IPS LCD with LED backlight, 24-bit color
- Resolution: 1280?×?480
- Contrast Ratio: Typ. 800:1
- Brightness: 1000 cd/m2
- Surface: Anti-glare
- Touch Panel: Projected capacitive (PCAP) with glove touch
- Hardware
- Real Time Clock: Available with battery backup
- Connectors:
- (2) AMPSEAL 23 pin (main)
- (1) M12 5 pin [Ethernet] (optional)
- (1) USB pigtail
- Video Input: (3) NTSC/PAL (single channel viewable)
- Communication
- CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
- Serial: RS-485 serial (Modbus: master or slave)
- USB: USB 2.0 full speed host
- Ethernet: 1 X Ethernet 10/100 Base-T (optional)
- Wi-Fi: 802.11 b/g radio (optional)
- Bluetooth: Fully integrated Bluetooth 2.1, class 1 (optional)
- Electrical
- Operating Voltage: 6 – 36 VDC, reverse polarity protected
- Outputs:
- (1) 500 mA switched low-side
- (1) Frequency output (2Hz – 3KHz)
- Inputs:
- (3) Analog 0 – 5 VDC, 4-20 mA, resistive, 10-bit resolution
- (5) Discrete digital, active-high
- (1) Frequency in (2Hz – 10kHz) 5V pk-pk min, 49V pk-pk max
- Environmental
- Operating Temperature: -40?C to +70?C (-40?F to +158?F)
- Storage Temperature: -40?C to +85?C (-40?F to +185?F)
- Protection: IP66 and IP67, front and back, for outdoor use
- Vibration: 3.9 Grms (10 – 350Hz), 3 axes (ISO 15003)
- Shock: ±50G in 3 axes
- EMC/EMI: SAE J1113, ISO 13766, CE per 2014/30/EU
- HOW TO ORDER
Part Number Model/Description Notes
| Part Number |
Model/Description |
Notes |
| 78700634 |
PV1200, Non-touch, Non-connected |
Display |
| 78700633 |
PV1200-T, Touch, Non-connected |
Display |
| 78090098 |
Programming Kit, PV780/PV1200 |
Accessories |
| 78001294 |
Kit, Mounting Bracket, PV1200 |
Accessories |
| 78001055 |
Harness, Gray Connector, USB |
Accessories |
| 78001056 |
Harness, Gray Connector, Flying Leads |
Accessories |
| 78001057 |
Harness, Black Connector, Flying Leads |
Accessories |
| 78001017 |
Harness, Black Connector, Development |
Accessories |
| 78001018 |
Harness, Gray Connector, Development |
Accessories |
| 78090069 |
Harness, PV750/PV1200 Conversion, Power/CAN |
Service |
|
Part Number Model/Description Notes
78700634 PV1200, Non-touch, Non-connected Display
78700633 PV1200-T, Touch, Non-connected Display
78090098 Programming Kit, PV780/PV1200 Accessories
78001294 Kit, Mounting Bracket, PV1200 Accessories
78001055 Harness, Gray Connector, USB Accessories
78001056 Harness, Gray Connector, Flying Leads Accessories
78001057 Harness, Black Connector, Flying Leads Accessories
78001017 Harness, Black Connector, Development Accessories
78001018 Harness, Gray Connector, Development Accessories
78090069 Harness, PV750/PV1200 Conversion, Power/CAN Service
For more information about this product, you can download the related literature here:
PDF Catalog技术资料下载：
- Sales Flier (1712048; revision date - 04/2017)
- PowerView Brochure (1712039; revision date - 03/2017)
-
PV1200 Installation Manual (00-02-1021)
|
