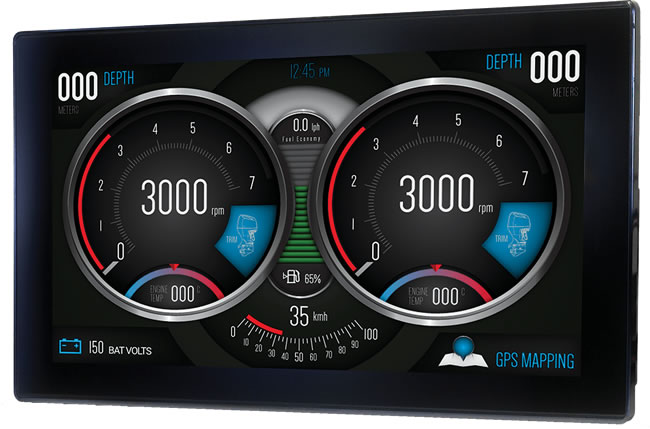

Murphy PV1100可编辑显示器 显示屏 - 10.6英寸屏幕
Murphy PowerView 1100 Displays
with Bluetooth and Wi-Fi

PV1100 fully configurable CAN J1939 touchscreen display PowerView PV1100

10.6 in. / 269 mm colour display for SAE J1939 or free-form CAN engines and vehicles. Front, back or gimble mounted, with touch-screen control. Full OEM configuration using PowerVision Configuration Studio.



性能参数:

- Boasts high-speed processor and high-definition display
- Large 10.6-inch display features rich color graphics
- Offers complete connectivity with Bluetooth, Wi-Fi and more
- Stereo functionality built-in for streamlined cab experience
- Pending Q3 Release

Murphy brings a whole new experience to your applications with the PowerView 1100. This large 10.6-inch display features a high-speed processor that allows you to bring even more into your application. In addition to providing vital engine information, the PV1100 packs an infotainment hub in the cab with media playback from your phone via USB. It also boasts AM/FM stereo, Bluetooth and Wi-Fi connectivity.


Murphy PowerView 1100 Displays
可编辑显示器 显示屏 - 10.6英寸屏幕

PDF Catalog

The full-featured, configurable display integrates engine, transmission and diagnostic information into an easy-to-read operator interface.

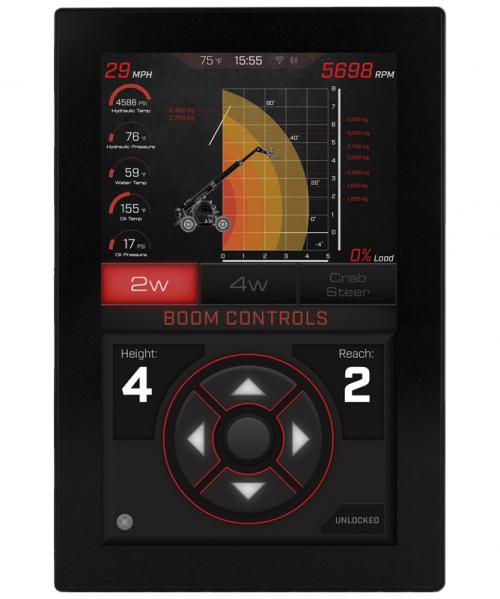

The 10.6-inch screen, with glove touch, can easily be viewed, even in full sunlight. The display’s bonded LCD and rugged design make it a perfect solution for all types of environments and applications. The PV1100 is available in portrait or landscape configurations

Customization of the display can be accomplished quickly via graphical programming or scripting with the PowerVision Configuration Studio? software.

PV1100 fully configurable CAN J1939 touchscreen display PowerView PV1100

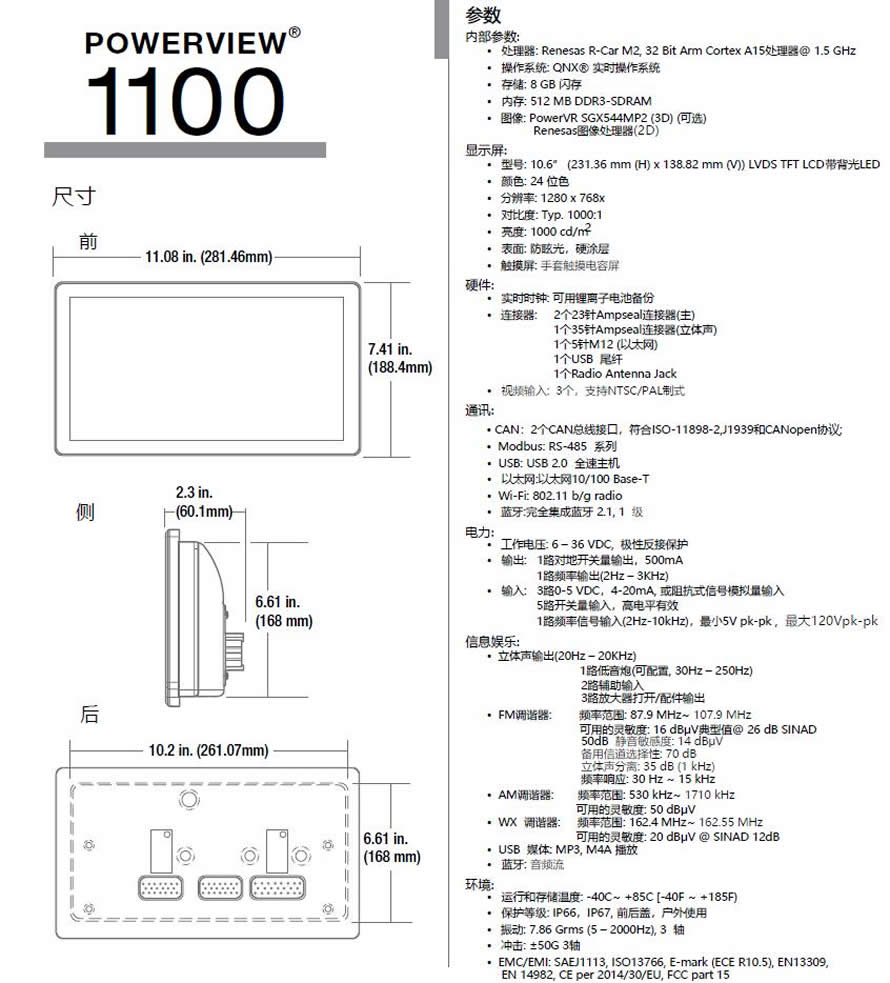

规格参数:

  • Computing
    • Processor: Renesas ? R-Car M2 with Arm ? Cortex ? -A15 dual-core processor @ 1.5 GHz (32-bit)
    • Operating System: QNX ? Realtime Operating System
    • Storage: 8 GB flash memory
    • RAM: 512 MB DDR3-SDRAM
    • Graphics: Renesas graphics processor
  • Display
    • Screen Size: 10.6 inches (231.36 mm × 138.82 mm)
    • Type: LVDS TFT LCD with LED backlight, 24-bit color
    • Resolution: 1280?×?768
    • Contrast Ratio: Typ. 1000:1
    • Brightness: 1000 cd/m2
    • Surface: Anti-glare
    • Touch Panel: Projected capacitive (PCAP) with glove touch
  • Hardware
    • Real Time Clock: Available with battery backup
    • Connectors:
      • (2) AMPSEAL 23 pin (main)
      • (1) AMPSEAL 35 pin (optional)
      • (1) M12 5 pin [Ethernet] (optional)
      • (1) USB pigtail
      • (1) Radio antenna jack (optional)
    • Video Input: (3) NTSC/PAL (single channel viewable)
  • Communication
    • CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
    • Serial: RS-485 serial (Modbus: master or slave)
    • USB: USB 2.0 full speed host
    • Ethernet: 1 X Ethernet 10/100 Base-T (optional)
    • Wi-Fi: 802.11 b/g radio (optional)
    • Bluetooth: Fully integrated Bluetooth 2.1, class 1 (optional)
  • Electrical
    • Operating Voltage: 6 – 36 VDC, reverse polarity protected
    • Outputs:
      • (1) 500 mA switched low-side
      • (1) Frequency output (2Hz – 3KHz)
    • Inputs:
      • (3) Analog 0 – 5 VDC, 4-20 mA, resistive, 10-bit resolution
      • (5) Discrete digital, active-high
      • (1) Frequency in (2Hz – 10kHz) 5V pk-pk min, 49V pk-pk max
  • Environmental
    • Operating Temperature: -40?C to +70?C (-40?F to +158?F)
    • Storage Temperature: -40?C to +85?C (-40?F to +185?F)
    • Protection: IP66 and IP67, front and back, for outdoor use
    • Vibration: 3.9 Grms (10 – 350Hz), 3 axes (ISO 15003)
    • Shock: ±50G in 3 axes
    • EMC/EMI: SAE J1113, ISO 13766, CE per 2014/30/EU


- HOW TO ORDER

Part Number Model/Description Notes
Part Number Model/Description Notes
78700636 PV1100, Touch, Non-connected, Landscape Display
78700654 PV1100, Touch, Non-connected, Portrait Display
78090098 Programming Kit, PV780/PV1100 Accessories
78001277 Kit, Mounting Bracket, PV1100 Accessories
78001055 Harness, Gray Connector, USB Accessories
78001056 Harness, Gray Connector, Flying Leads Accessories
78001057 Harness, Black Connector, Flying Leads Accessories
78001017 Harness, Black Connector, Development Accessories
78001018 Harness, Gray Connector, Development Accessories
78090069 Harness, PV750/PV1100 Conversion, Power/CAN Accessories


For more information about this product, you can download the related literature here:
资料下载

- Sales Flier (1712047; updated 04/2017)
- PowerView Brochure (1712039; revision date - 03/2017)
