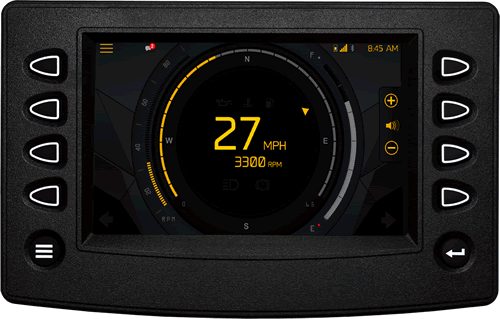

HelmView 780 HVS780
PowerView 780 | Murphy by Enovation Controls
Murphy's PowerView 780 display



Murphy's PowerView 780 display offers customization and all-weather durability.
PowerView 780显示器提供定制和全天候耐久性。

PowerView 780显示器是一个功能齐全、可配置的显示器,在易于阅读的操作界面中显示集成的发动机、变速箱和诊断信息。设备功能可以通过可用的输入/输出进一步集成,并通过can总线进行控制。PV780采用全彩色7英寸黏合液晶显示器,可提供更明亮、更平滑的图形和一流的阳光可读性。坚固的设计使这种显示器成为极端环境下的一个很好的解决方案。The PowerView 780 display is a full-featured, configurable display that shows integrated engine, transmission and diagnostic information in an easy-to-read operator interface. Equipment functionality can be further integrated through the available I/O and controlled via the CAN bus. The PV780 features a full-color, 7-inch bonded LCD for brighter, smoother graphics and best-in-class sunlight readability. The rugged design makes this display a great solution for extreme environments.

PV780 is programmable exclusively with PowerVision Configuration Studio. Graphic interface not included, custom programming required.
PV780只能通过PowerVision配置工作室进行编程。不包括图形界面,需要自定义编程。



PowerView 780 PDF Data Sheet | Murphy by Enovation Controls
Murphy's PowerView 780 display







- Specification

  • Computing
    • Processor: Freescale? i.MX357, 32 bit, 532 MHz, ARM11 core
    • Operating System: QNX ? Realtime Operating System
    • Storage: 2 GB flash memory
    • RAM: 128 Mbytes SRAM
  • Display
    • Screen Size: 7 inches (178 mm)
    • Type: Bonded color transmissive TFT LCD, 16-bit color
    • Resolution: 800 x 480 pixels @ 60 Hz (WVGA)
    • Contrast Ratio: 400:1
    • Brightness: 1000 cd/m 2 (LED, 40,000 hr. minimum)
    • Surface: print/glare-free glass
    • Viewing Angle: ±65 ° horizontal, +55 ° /-65 ° vertical
    • Orientation: Landscape or portrait
    • Touch Panel (optional): Projected capacitive (PCAP)
  • Hardware
    • Keypad: 10 tactile configurable soft keys with white LED backlight
    • Real time clock: with Li-ion rechargeable battery backup
    • Connectors: 2 AMPSEAL 23 Pin (AMP 770680-1 and AMP 770680-4)
    • Video Inputs: 3 NTSC/PAL (single channel viewable)
    • Dimensions: 8.37 x 6.0 in. (212.5 x 152.3 mm) landscape
    • Unit Depth: 3.57 in. (90.8 mm)
    • Case Material: PC/ABS, ISO 3795 (SAE J369, FMVSS 302) rated
    • Mounting Options: Front mount, back mount or RAM mount
  • Communication
    • CAN: (2) CAN 2.0B according to ISO 11898-2, J1939 and proprietary messaging
    • Serial: RS-485 serial (Modbus: master/slave or PVA gauge)
    • USB: (1) USB 2.0 host (full speed)
  • Electrical
    • Operating Voltage: 6-36 VDC, reverse polarity protected
    • Outputs:
      • (1) 500mA switched low-side
      • (1) Frequency Out (2Hz - 3 kHz, Vbat rms square wave) for tach
    • Inputs:
      • (3) Analog 0-5VDC, 4-20 mA, or resistive, 10-bit resolution
      • (5) Discrete Digital, Active High
      • (1) Frequency In (2Hz - 10 kHz), 5Vpk-pk min, 120Vpk-pk max
  • Environment
    • Operating Temperature: -40°F to +185°F (-40°C to +85°C)
    • Storage Temperature: -40° F to +185°F (-40°C to +85°C)
    • Protection: IP66 and 67, front and back.
    • Vibration: Random vibration, 7.86 Grms (5-2000 Hz), 3 axes
    • Shock: ±50G in 3 axes
    • Electrical: J1113-2, -4, -11, -13, -21, -26 and -41
    • MC/EMI:
      • 2004/108/EC and 2006/95/EC directives
      • EN 61000-4-3 (radiated EMF immunity radiated)
      • EN 61000-4-4 (EFT immunity power and I/O lines)
      • EN 61000-4-5 (surges power lines)
      • EN 61000-4-6 (RF immunity)
      • EN 61000-4-8 (magnetic field immunity)
      • EN 60945 (ESD)
      • EN 60945 (conducted emissions)
      • HYBRID EN 60945 CISPR 11 CLASS B (radiated emissions)
    • Certifications:
      • CE
      • E-mark capable



- How to order

Part Number Model/Description Notes
Part Number Model/Description Notes
78700560 PV780 Display, Murphy Standard Configuration Displays
78700564 PV780 Touch Display (no configuration; bootloader only) Displays
78090098 Programming Kit, PV780 Accessories
78051181 Cover, PV780 Accessories
78001053 Bracket Kit (screws included) Accessories
78001055 Harness, Gray Connector, USB Accessories
78001056 Harness, Gray Connector, Flying Leads Accessories
78001057 Harness, Black Connector, Flying Leads Accessories
78001017 Harness, Black Connector, Development Accessories
78001018 Harness, Gray Connector, Development Accessories
78090069 Harness, PV750 Conversion, Power/CAN Service
78051180 Bezel, PV780 Service
