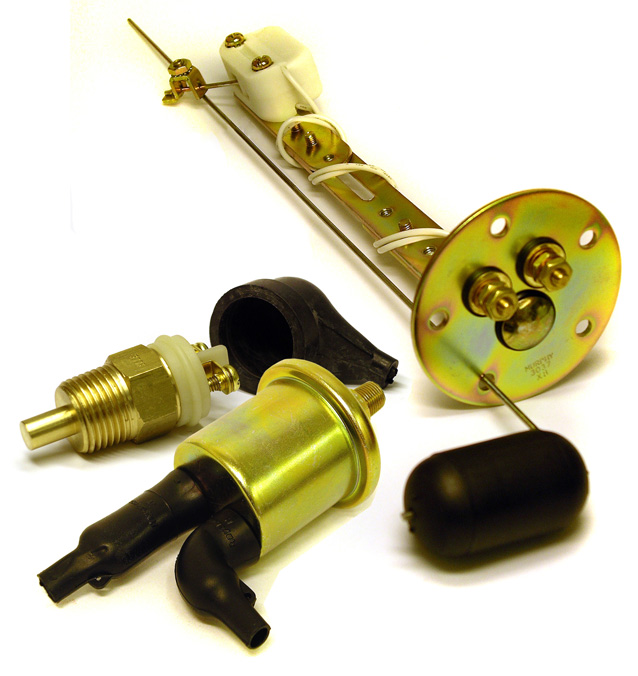

MURPHY ES Series Resistive Senders
Originally designed for use with EG(S) electric gauges, ES series resistive measurement senders can also be used with several displays, controllers & I/O modules.
Standard models:
|
1-wire
(ground/chassis return) |
2-wire
(insulated return) |
2-wire
(insulated return, driving
2 x EG(S) gauges) |
| Pressure |
ESP |
ES2P |
ESDP |
| Temperature |
EST |
ES2T |
ESDT |
| Fuel Level |
ESF |
ES2F |
ESDF |
Specifications
Fuel Senders
- Tank Cutout Hole : ? 1.750 in. (44 mm)
- Materials :
- Float : Foamed Buna N
- Float Arm : Stainless Steel
- Resistor Housing : Glass Filled Polyacetal
- Flange & Shaft : Steel, Zinc-Plated
- Gaskets : Buna N, 70 Durometer (48% Acrylonitrile)
- Hardware : Brass & Phosphor Bronze
- Mounting Hardware : Zinc-Plated Steel
- Resistance Range :
- ESF and ES2F Model : 240 Ohms to 33 Ohms
- ESDF Model : 120 ohms to 17 ohms
- Operating Temperature : -40° to 185°F (-40° to 85°C)
- Storage Temperature : -76° to 185°F (-60° to 85°C)
Temperature Senders
- Housing Material : Brass
- Temperature Range : 100o-250oF (40o-120oC) or 140o-300oF (60o-150oC)
