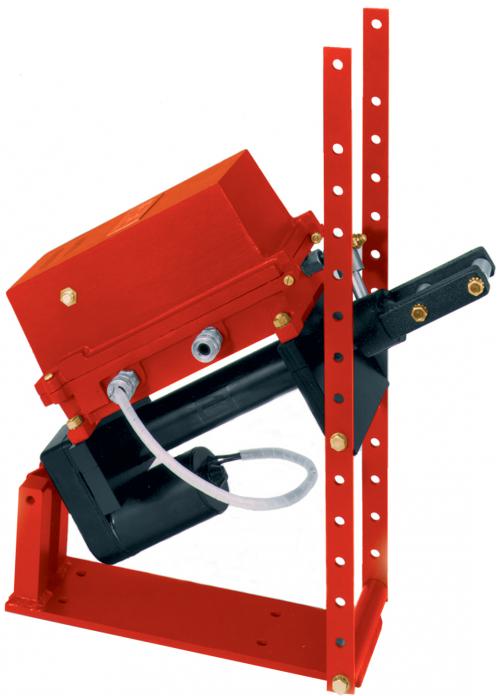

CO3 Electric Motor-Driven Clutch Operator
CO3电动离合器操纵器

CO3是一种电动控制和驱动的执行机构,用于两位置、杠杆动作设备的自动操作。CO3 is an electrically controlled and driven actuator for automatic operation of two position, lever action equipment.



主要设计用于接合和分离发动机上的中心离合器,CO3有广泛的应用,如管道阀门的打开和关闭,泵的接合和分离,自动过程控制中的夹具定位等。正作用螺旋式执行器可完全调节行程长度,最大行程6英寸(152毫米)。CO3电机配有过载离合器,过载时离合器滑动。此外,电机还具有自动复位热过载保护。CO3可用于12或24伏直流电应用,并与MURPHYMATIC?启停发动机控制器兼容。Primarily designed to engage and disengage over-center clutches on engines, the CO3 has a wide variety of applications such as opening and closing of pipeline valves, engagement and disengagement of pumps, fixture positioning in automated process control, etc. The positive action screw-type actuator is fully adjustable for length of stroke up to 6 inches (152 mm). The CO3 motor is equipped with an overload clutch that slips if overloaded. In addition, the motor is protected with an automatic reset thermal overload. The CO3 is available for 12 or 24 VDC applications and is compatible with MURPHYMATIC? start-stop engine controllers.



Electro / Mechanical Controllers | Enovation Controls PDF Catalog Datasheet
CO3 Electric Motor-Driven Clutch Operator
CO3电动离合器操纵器







- Specification

Voltage:
CO3-12: 12 VDC, negative ground.
CO3-24: 24 VDC, negative ground.

Travel (adjustable): 6 in. (152 mm) max.

Case Material: Cast aluminum.

Built-in Circuit Breaker: 20 A.

Operating Force:
CO3-12: 250 lb-f (1112N) max.
CO3-24: 500 lb-f (2224N) max.

Duty Cycle @ 77°F (25°C):
CO3-12: 40% max. @ 125 lb-f (556N) to 25% @ 250 lb-f (1112N).
CO3-24: 100% max. @ 75 lb-f (334N) to 25% @ 500 lb-f (2224N).

Speed:
CO3-12: 1.2 in./sec (3 cm/sec.) @ 0 lb-f to 1.00 in./sec. (1 cm/sec.) @ 250 lb-f (1112N).
CO3-24: 2.4 in./sec (6 cm/sec.) @ 0 lb-f to 1.35 in./sec. (3 cm/sec.) @ 500 lb-f (2224N).

Drive: Self-locking ACME screw.

Current:
CO3-12: 20 amp max.
CO3-24: 14 amp max.

Operating Temperature: -15 to 150°F (-26 to 66°C).

Shipping Weight: 40 lb (18.1 kg).

Shipping Dimensions: 25 x 14-1/2 x 12 in. (635 x 368 x 305 mm).



How to Order
Voltage:
CO3-12: 12-VDC, negative ground
CO3-24: 24-VDC, negative ground

Model Description
CO3-12 Motor Driven Clutch Operator
